Uponor Smatrix Base User Manual

therm ostats t-143, t-146, and t-148

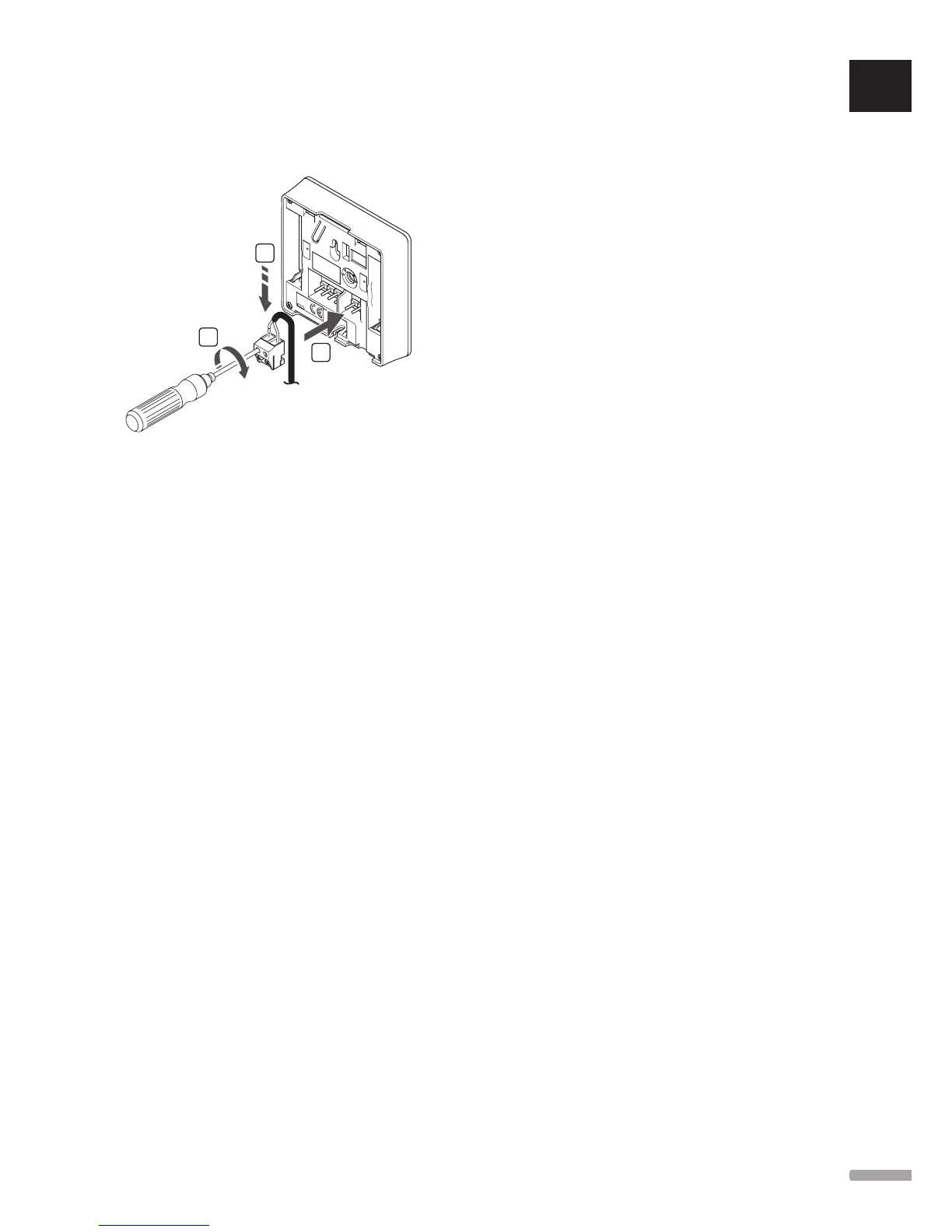

Connect the sensor to the single terminal located at
the back of the thermostat, as shown in the illustration
below.
1
2
3
1. Insert the two wires from the sensor cable (non
polarized) into the terminal.
2. Tighten the screws fixing the wires in the connector.
3. Insert the terminal on the input pegs on the
thermostat.
uP ono r smatri X Ba se ther mo stat d+rh
style t-149
The external temperature sensor input can be used for
either a floor, outdoor or remote temperature sensor.
Use the software on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
uPonor smatriX Bas e thermostat Prog.+rh
t-148
The external temperature sensor input can be used for
either a floor, outdoor or remote temperature sensor.
Use the software on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
uPonor smatriX Bas e thermostat dig t-146
The external temperature sensor input can be used for
either a floor, outdoor or remote temperature sensor.
Use the software on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
See section 12 Operate Uponor Smatrix Base/Base PRO
digital thermostats for more information.
