Uponor Smatrix Base User Manual

uPonor smatriX Bas e thermostat PuBliC
t-143

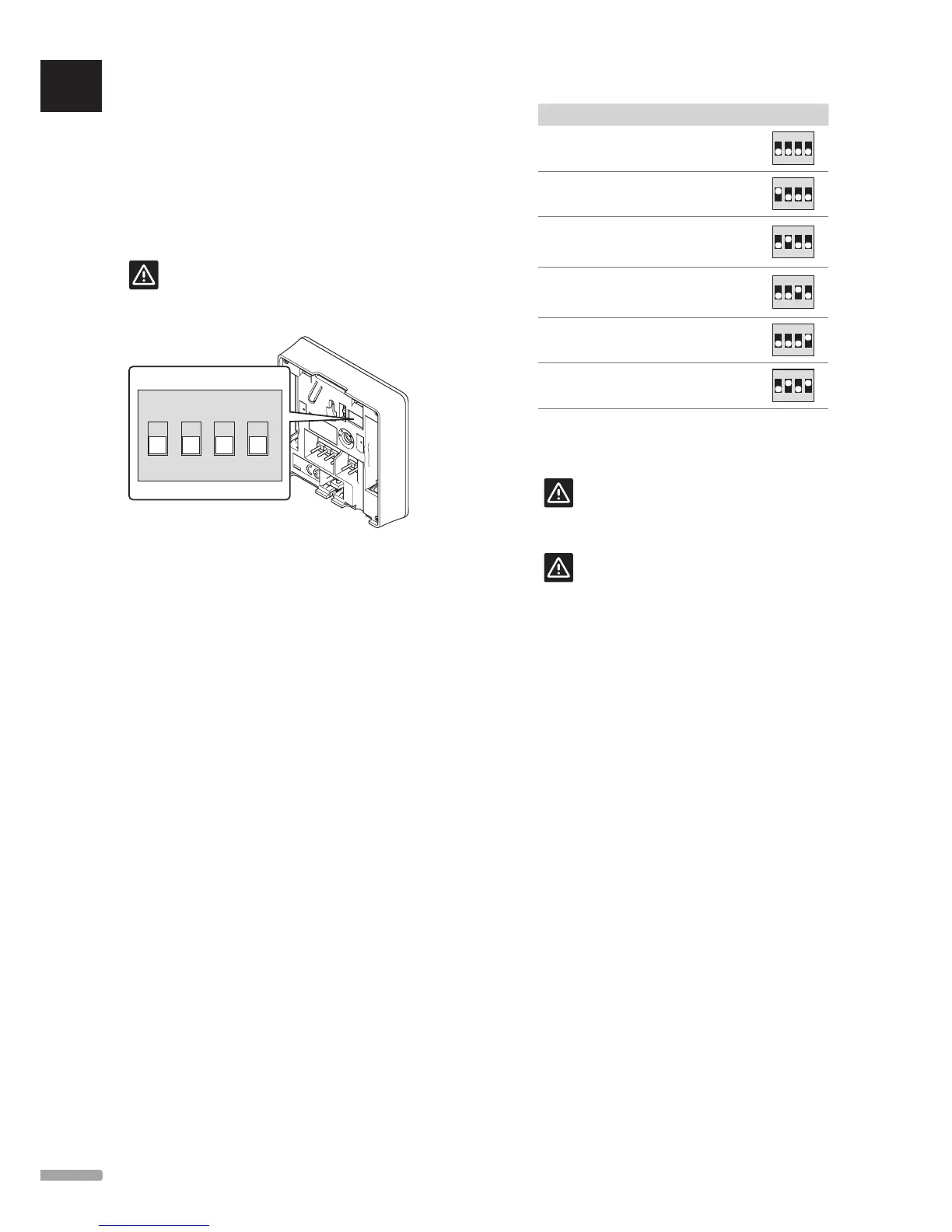

The external temperature sensor input can be used
for either a floor temperature sensor, an outdoor
temperature sensor, or a Comfort/ECO switch. Use
the DIP switches on the thermostat to select a control
mode which corresponds to the use of the sensor and
thermostat.
Caution!
If more than one controller is available in the
system, register the thermostat as a system
device to the master controller.
1 2 3 4
ON DIP
Function*
Switch
Standard room thermostat
1234
ON DIP
Standard room thermostat together with a
floor temperature sensor
1234
ON DIP
Standard room thermostat, or system device,
together with an outdoor temperature sensor
1234
ON DIP
System device together with a supply
temperature sensor for heating/cooling
switch over function
1234
ON DIP
System device where the sensor input is used
for Comfort/ECO switch over function **
1234
ON DIP
Remote sensor
1234
ON DIP
* If registering the thermostat as a system device, it will no
longer work as a standard room thermostat any more.
** Closed = ECO
Caution!
The switches must be set before the
thermostat is registered.
Caution!
The switches must be set to one of the
available functions, otherwise the thermostat
cannot be registered.
