Upright NX15 Service & Parts Manual

Page 1-1MX15/19
Section 1
I
NTRODUCTION
1.1 I
NTRODUCTION
P
URPOSE
The purpose of this service and parts manual is to provide instructions and illustrations for the
operation and maintenance of the MX15/19 manufactured by UpRight, Inc. of Selma, California.
S
COPE
The manual includes procedures for proper operation, maintenance, adjustment, and repair of
the MX15/19 as well as recommended maintenance schedules and troubleshooting.
1.2 G
ENERAL
D
ESCRIPTION
The MX15/19 consists of the platform, controller, elevating assembly, power module, control
module, and chassis.

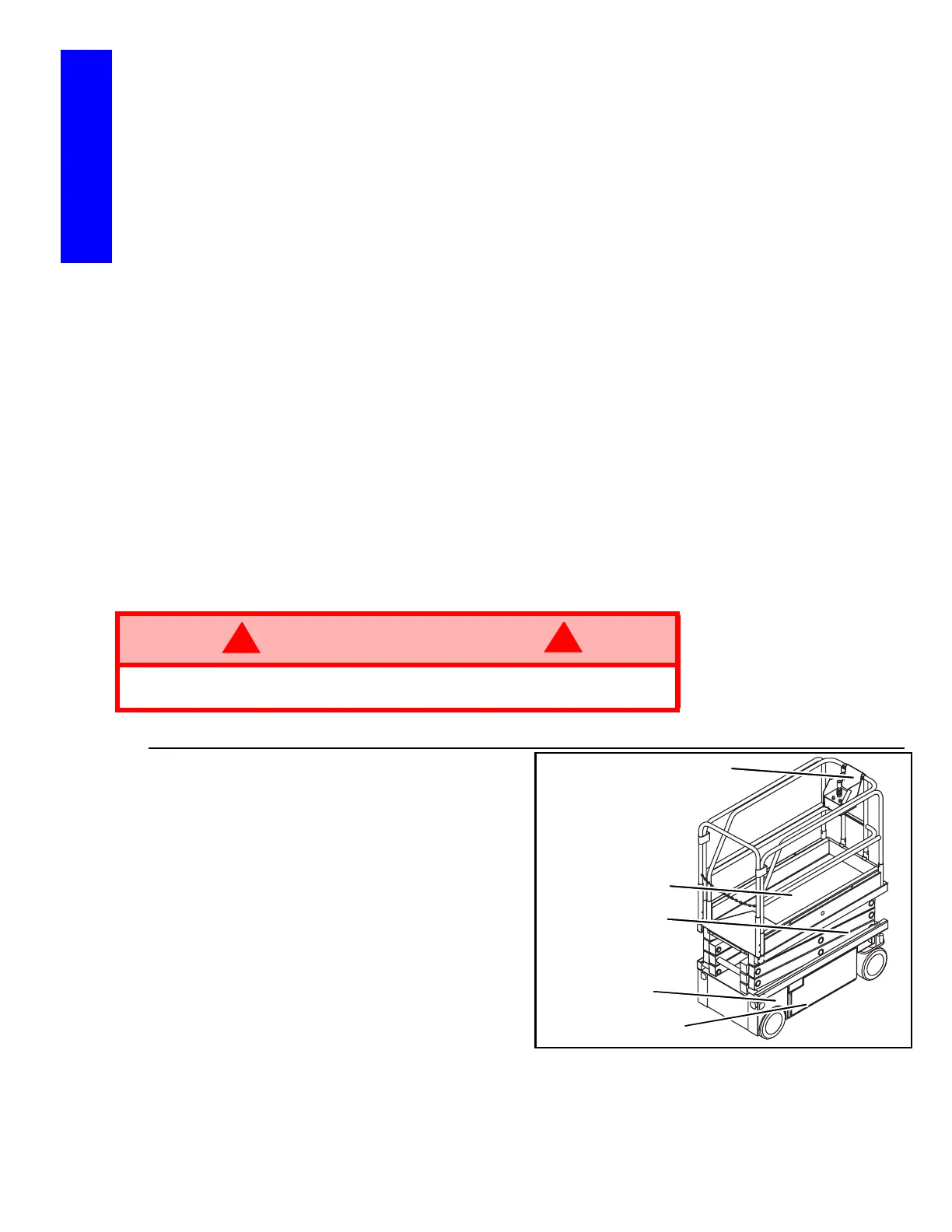

Figure 1-1:
MX15/19 Work Platform
P
LATFORM
The platform has a reinforced steel
floor, 39.5inch(.99m) high guardrails
with midrail, 6 inch (152 mm) toeboards,
and an entrance gate at the rear of the
platform.
P
LATFORM
C
ONTROLLER
The platform controller contains the
controls to operate the machine. It is
locatedatthefrontoftheplatform.A
complete explanation of control func-
tions can be found in Section 2.
E
LEVATING
A
SSEMBLY
The platform is raised and lowered by
the elevating assembly. The hydraulic pump, driven by an electric motor, powers the cylinder.
Solenoid operated valves control raising and lowering.
WARNING !
!
DO NOT use the work platform without guardrails properly assembled and in
place.
1.Platform
2.Platform Controller
3.ElevatingAssembly
4.Chassis Controls
5.Chassis
1
2
3
4
5
060569-004
