Page 2-10
Operation and Specifications 2.5 - Maintenance
MX15/19
Figure 2-9:
Label Installation
1775 PARK ST. SELMA CALIFORNIA 93662 USA
Model:______________
Serial number:_____________
GVW: __________lbs.
Mfg. date:___________
Occupants and equipment must not exceed the rated workload
_____lbs. Rated number of occupants: _____
Maximum platform height: ______ft.
Nominal system voltage: ______vdc
Maximum wheel and/or outrigger load: _____lbs.
This machine is manufactured to comply with ANSI A92.6-1999.
CAUTION: CONSULT OPERATOR’S MANUAL BEFORE USE.
THIS PLATFORM IS NOT ELECTRICALLY INSULATED
TIP-OVER HAZARD
MAXIMUX DISTRIBUTED LOAD
250 LBS. OR 1 OCCUPANT
ON EXTENDED DECK
MAXIMUM SIDE LOAD 100 LBS
MAXIMUM
WHEEL LOAD
850 LBS.
MAXIMUM
WHEEL LOAD
1050 LBS.
MAXIMUM DISTRIBUTED
PLATFORM LOAD 500 LBS.
OR TWO OCCUPANTS
MAXIMUM SIDE LOAD 100 LBS.
MAXIMUM DISTRIBUTED
PLATFORM LOAD 550LBS.
OR TWO OCCUPANTS
MAXIMUM SIDE LOAD 100 LBS.
9
TIP-OVER HAZARD
BATTERIES ACT AS COUNTERWEIGHT
EACH REPLACEMENT BATTERY SHALL WEIGH
60 LBS. OR MORE
010076-001
1 Required
066550-000
1 Required
066554-000
1 Required
101222-004
1 Required
MX15 101250-001
MX19 101250-000
2 Required
MX15 066553-000
MX19 066553-003
2 Required
066556-000
1 Required
061220-002
1 Required
066552-000
2 Required
066558-000
1 Required
14222-003-099
MX15 5 required
MX19 1 Required
MX15 101252-001
MX19 101252-002
1 Required
062562-001
1 Required
005221-000
1 Required
061205-005
1 Required
101251-000
1 Required
005221-000
1 Required
062562-001
1 Required
063255-001
1 Required
066559-000
1 Required
066555-000
1 Required
066556-001
4 Required
Ref. 065612-030, 065712-030

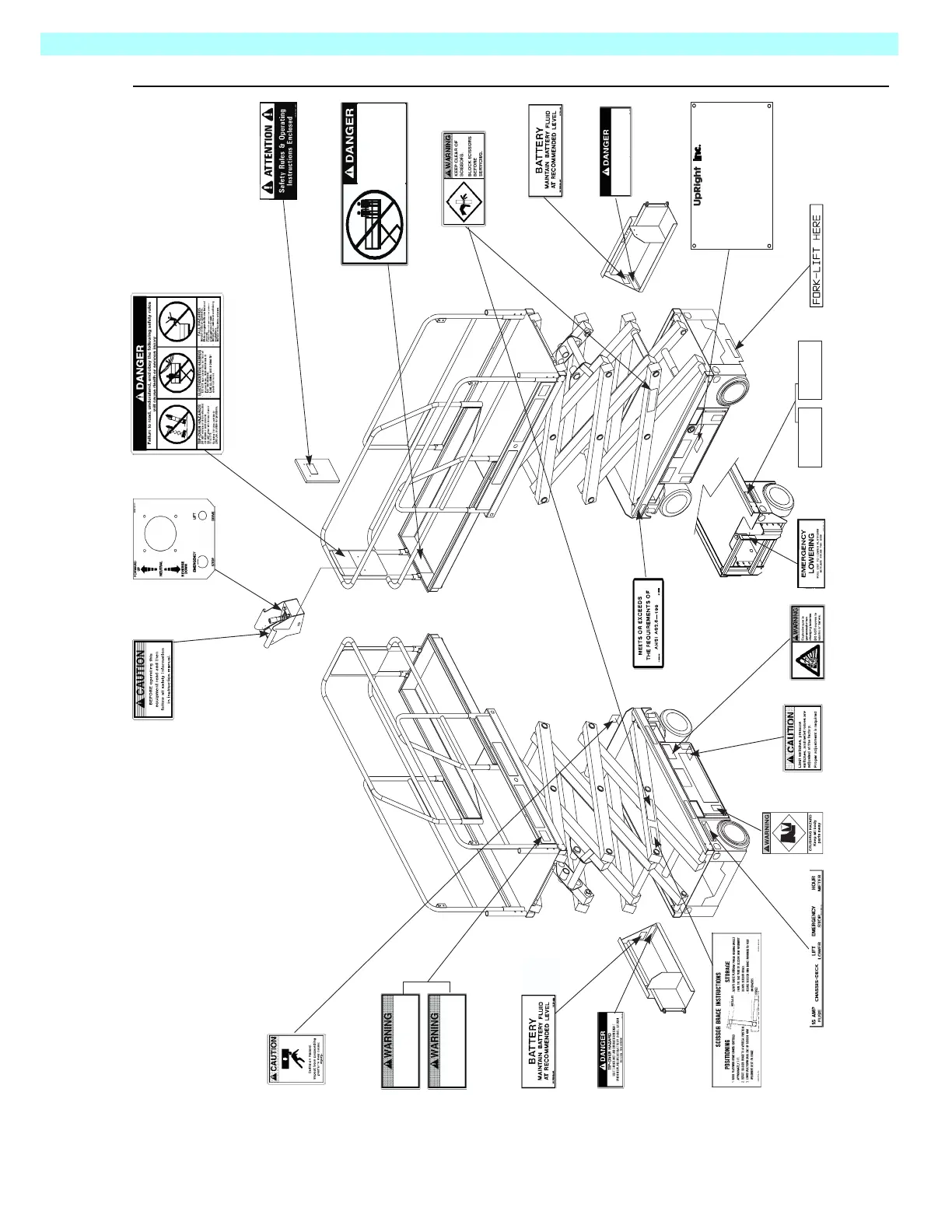

MXSeries label Installation: These labels shall be present and in good condition before operating the work platform.
Be sure to read, understand and follow these labels BEFORE operating the work platform.
NOTE: Labels can be ordered by using Part Number located by each label.
