Upright NX15 Service & Parts Manual

Page 3-2
Maintenance 3.3 - Special Tools
MX15/19
3.3 S
PECIAL
T
OOLS
The following is a list of special tools which may be required to perform certain maintenance pro-
cedures on the work platform.
• 0-3000 psi (0-207 bar) Hydraulic Pressure Gauge with Adapter Fittings (UpRight P/N
014124-030)
• 0-5000 psi (0-344 bar) Hydraulic Pressure Gauge with Adapter Fittings (UpRight P/N
063971-000)
• Small UpRight Connector Field Kit
(UpRight P/N 030899-000)
• Large UpRight Connector Field Kit
(UpRight P/N 030898-000)
• Inclinometer (UpRight P/N 010199-000)
3.4 U
P
R
IGHT
C
ONNECTORS
UpRight connectors are designed so that connector parts, contacts or electrical cables may be
replaced without replacing the entire connector.

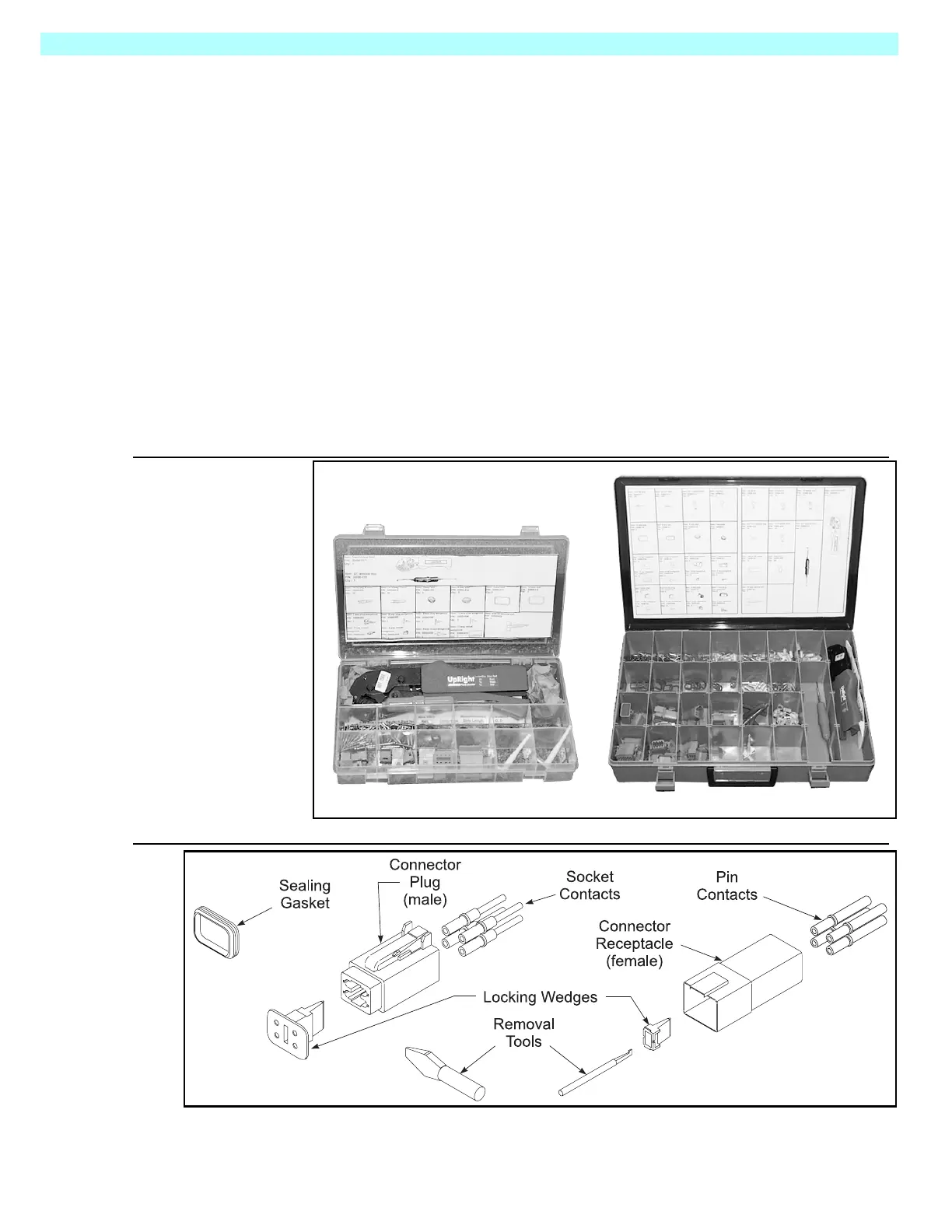

Figure 3-1:
UpRight Connector Kit
Figure 3-2:
Plugs and Receptacles, UpRight Connectors
M
ALE
C
ONNECTOR
(P
LUG
)
1. Disconnect the male connector (plug) from the female connector (receptacle).
2. Using the flat end of the Removal Tool (or flat blade screwdriver), pry the Locking Wedge
Small Kit
Large Kit
060569-004
