Page 2-6
Operation and Specifications 2.4 - Transporting the Work Platform
MX15/19
P
ARKING
B
RAKE
R
ELEASE
Perform the following procedure only when the machine will not operate under its own power and
it is necessary to move the machine, or when winching onto a trailer to transport.

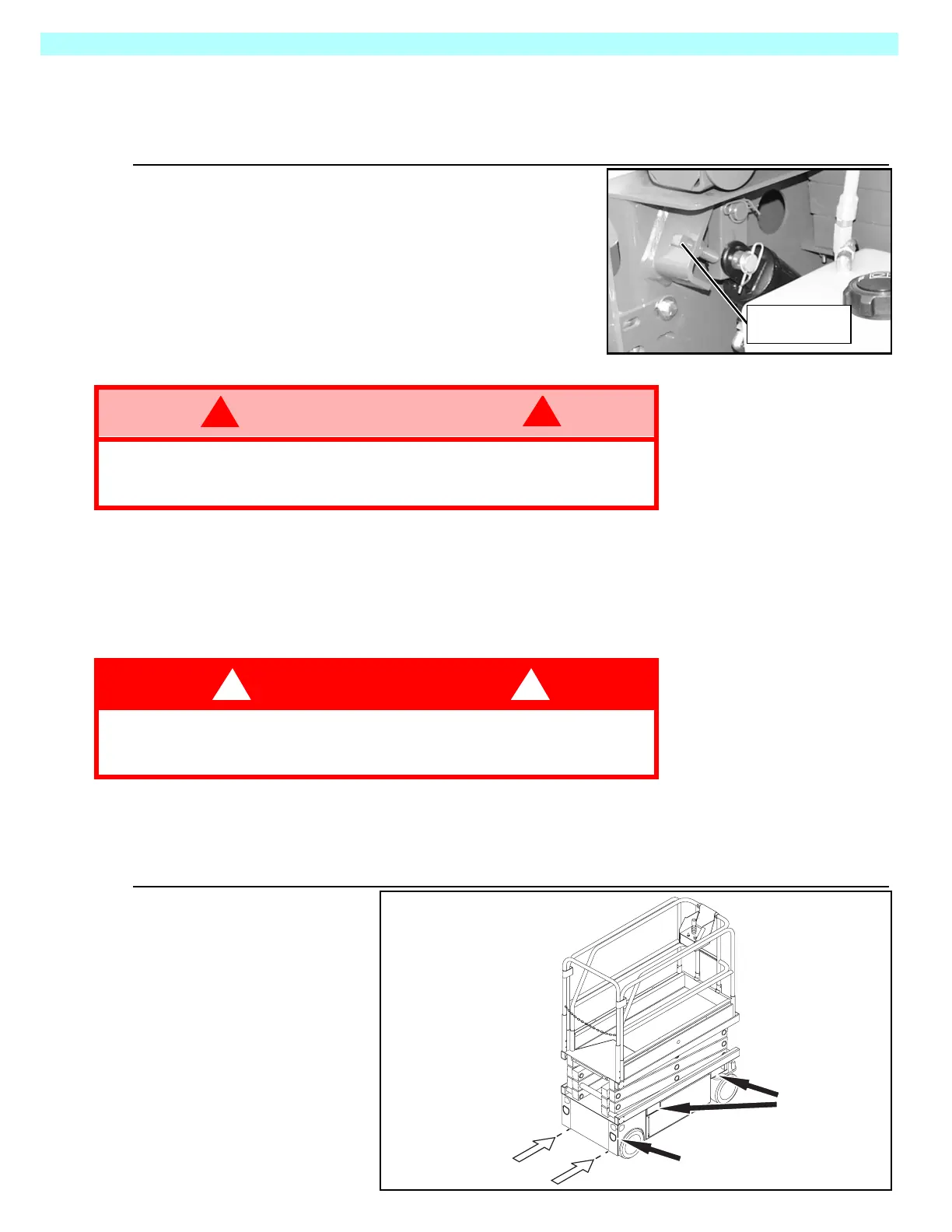

Figure 2-5:
Parking Brake Release
1. To release the brakes, loosen the jam nut and
bolt until the brakes disengage the tires (Figure
2-5). The machine will now roll when pushed or
pulled.
2. To re-engage the brakes, tighten the bolt until the
brakes have fully engaged the tires. Secure the
bolt with the locknut. Verify that the brakes have
fully engaged the rear tires before operating the
machine by testing their ability to hold the
machine on a 25% (14°) grade.
2.4 T
RANSPORTING THE
W
ORK
P
LATFORM
B
Y
C
RANE
Secure the straps to Tie Down/Lifting D-Rings only.
B
Y
F
ORKLIFT
Both the MX15 and MX19 may be forklifted from the rear end of the machine between the
wheels. The MX15 may also be forklifted from the side, using the forklift pockets shown in the
diagram.
Figure 2-6:
Transporting the Work Platform
WARNING
!
!
Never tow faster than 1 ft./sec. (.3m/sec.).
Never operate the work platform with the parking brakes released. Serious
injury or damage could result.
Brake Release
Bolt
DANGER
! !
Forklifting is for transport only.
See specifications for weight of the work platform and be certain that forklift
is of adequate capacity to lift the work platform.
Forklift
Tie Down/Lifting D-Rings
Located At Each End
MX15 Forklift
Pockets
