Vacon 20 User Manual

parameter descriptions vacon
•
137
9
9.15 Application setting (Control panel: Menu PAR->P17)
17.1 D
RIVE SETUP
With this parameter you can easily set up your drive for four different applica-
tions.
Note! This parameter is only visible when the Startup Wizard is active. The
startup wizard will start in first power-up. It can also be started by setting SYS
P4.2=1. See the figures below.
FAU LTALARMSTOPREADY
RUN
REF
MON
PAR
SYS
FAU LTALARMSTOPREADY RUN
REF
MON
PAR
SYS
FAULTALARMSTOPREADY RUN
REF
MON
PAR
SYS
FWD REV I/O KEY PAD BUS
FWD REV I/O KEY PAD BUS
FWD REV I/O KEY PAD BUS
FWD REV I/O KEY PAD BUS
2
1
4
3
Change
P1.3
value
with Up/Down button
and press OK to
comfirm
Perform the same
procedure for P1.4,
motor nominal current
Press OK enter
edit mode
Enter Pa r. menu, select
P1.3 motor nominal speed
FAU LTALARMSTOPREADY RUN
REF
MON
PAR
SYS
OK
OK
rpm
NOTE! Running the startup wizard will always return all parameter
settings to their factory defaults!

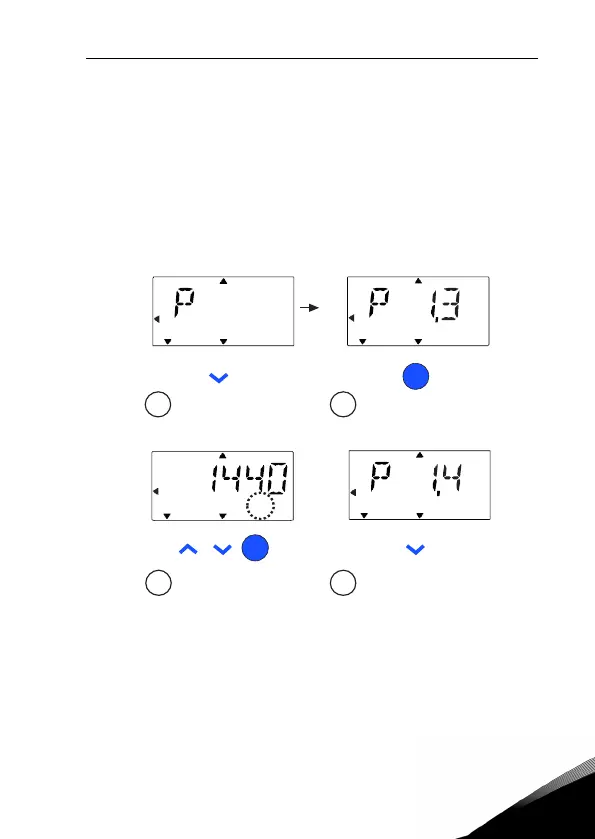

Figure 9.25: Startup wizard

Vacon 20 Specifications

General

Communication Options	Modbus, CANopen, PROFIBUS, Ethernet
Protection Class	IP20
Power Range	0.25 to 18.5 kW
Control Method	Scalar control, Vector control
Ambient Temperature	-10°C to +50°C
