Vacon NX series User Manual

7
vacon • 108 Appendices
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

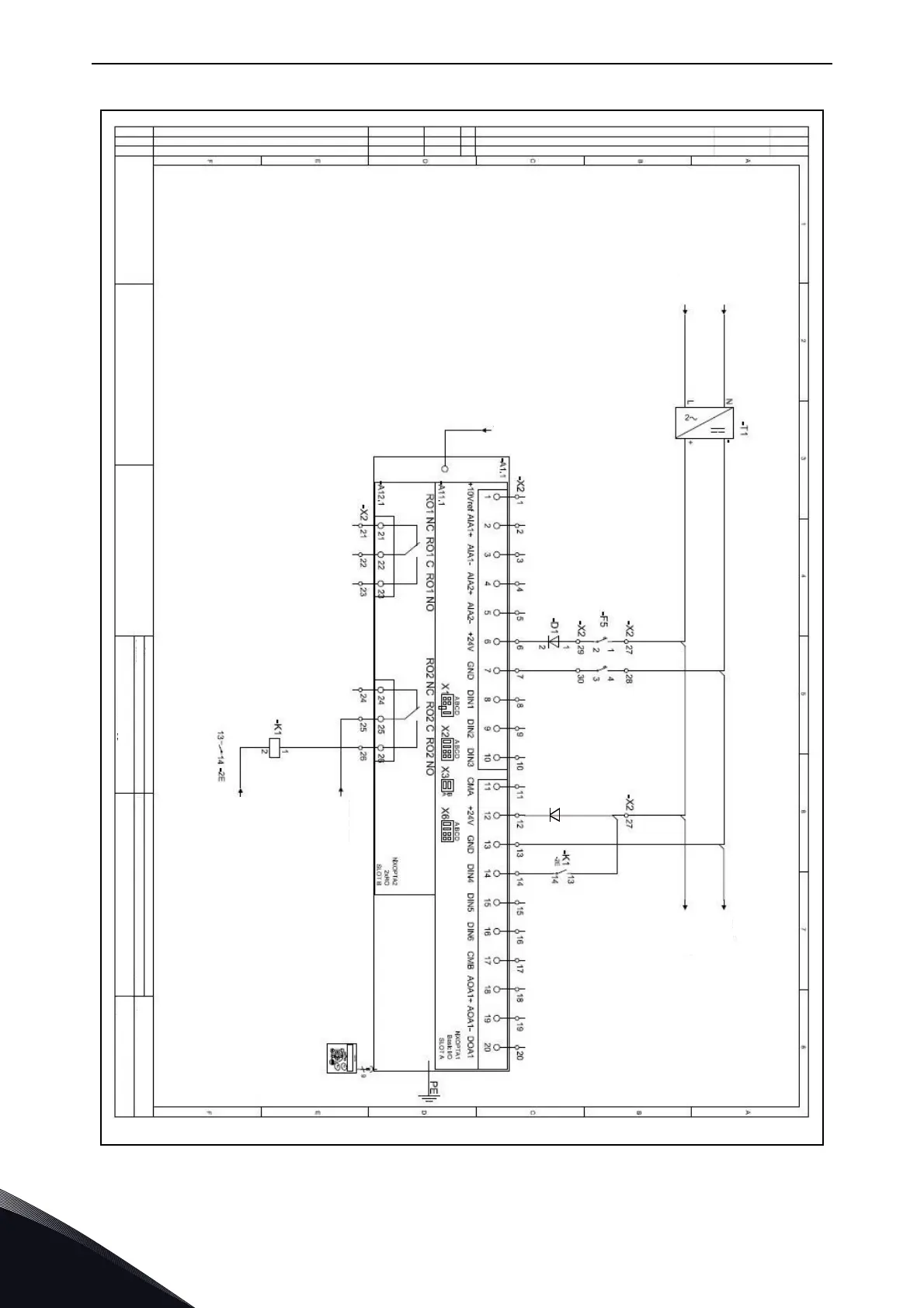

Figure 76. Wiring diagram for control circuit
Project Customer Cust. ref.
Title
Prepared
Checked
Vacon Oyj
DCC
Proj. no
Based on
Doc. no
Revision
Object = Loc. =
Sheet Cont.
MAIN CONTACTOR MONITORING
EXTERNAL 24VDC SUPPLY
240VAC N
240VAC L
+AFE-U1
240VAC N
240VAC L
+24VDC
0VDC
11227.pdf
-D2

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
