Vacon NX series User Manual

Installation vacon • 63
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
5
5.2.2 LCL filter
Enough free space must be left around the LCL filter to ensure sufficient air circulation and cooling.
You will find the required dimensions for free space in the Table 29. You will find the required cooling
air, minimum air holes and heat dissipation in the Table 30.
When planning the cooling for the space, take into consideration that the LCL filter heat loss is
approx. 1% of the nominal capacity. Air flow, see Figure 34 and Figure 35.

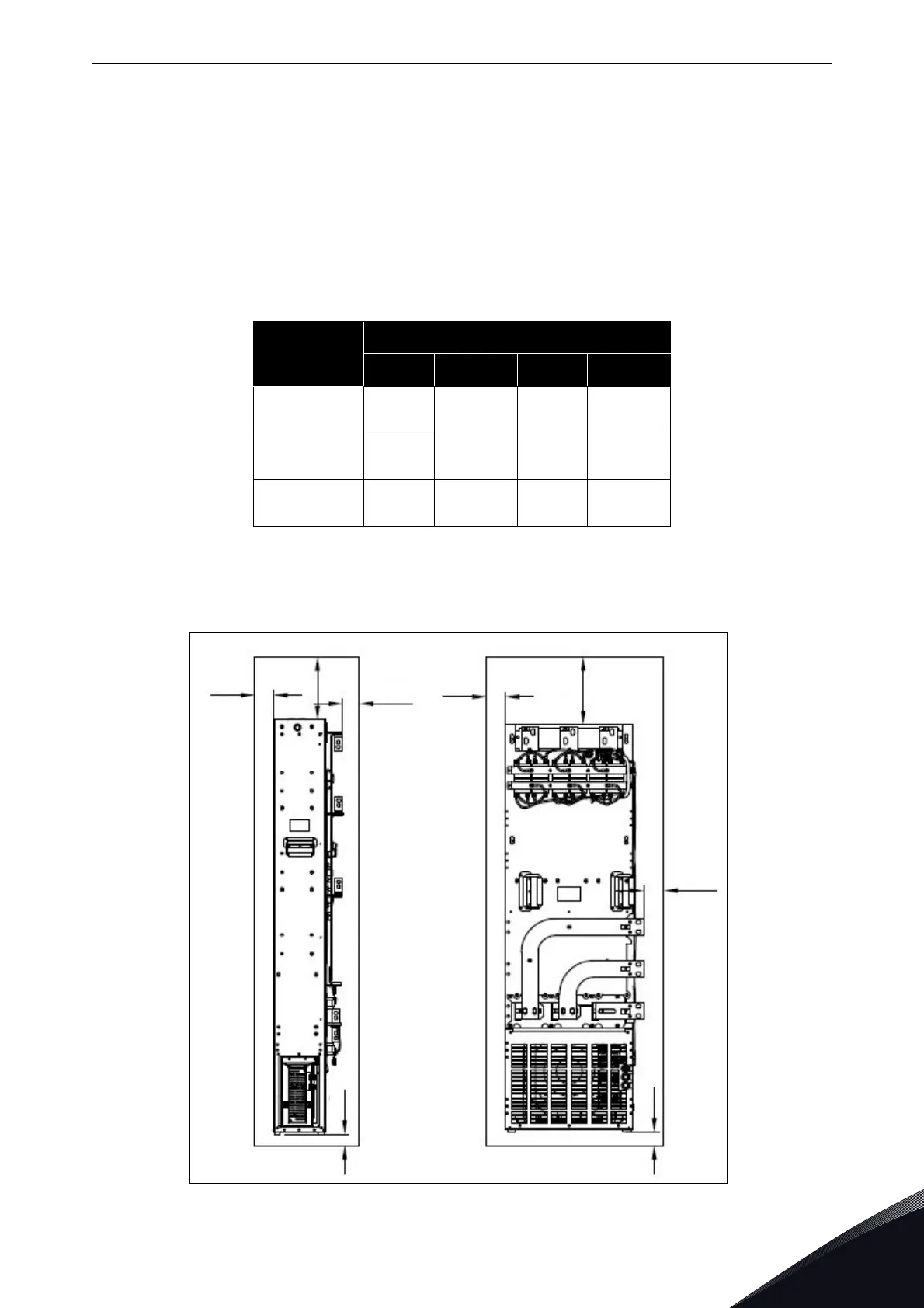

Figure 33. Installation space
Table 29. Mounting space dimensions
Type
Dimensions [mm]
A B B
2
C
LCL0261 5
LCL0170 6
350 0 20 0
LCL0460 5
LCL0325 6
350 0200
LCL1300 5
LCL1030 6
350 0200
A = free space above the LCL filter
B = distance between LCL filter and cabinet wall
B
B
B2
B2
A
A
C
C
11217.emf

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
