Vacon NX series User Manual

Installation vacon • 65
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
5

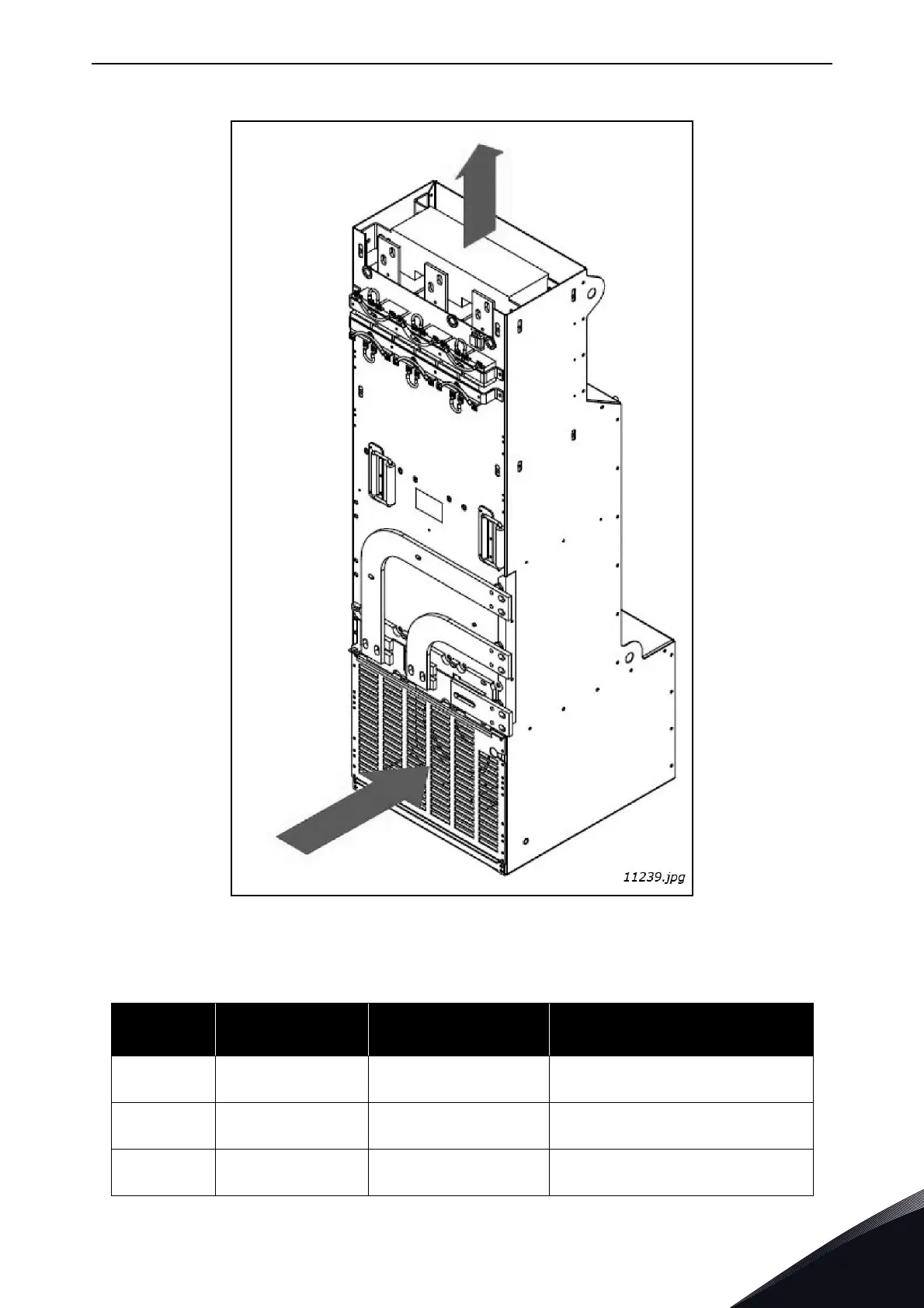

Figure 35. Cooling airflow guides for FI13 LCL filter
Table 30. Power losses and required cooling air for the LCL filters
Type
Heat dissipation
(W)
Cooling air required
(m
3
/h)
Minimum air holes on switchgear
(input and output) (mm
2
)
LCL0261 5
LCL0170 6
2350
2050
1100 30000
LCL0460 5
LCL0325 6
3180
3290
1100 30000
LCL1300 5
LCL1030 6
6330
8680
1300 42000

Vacon NX series Specifications

General

Product type	AC Drive
Output voltage range	0-Uin
Frequency range	0-500 Hz
Enclosure classes	IP00, IP21
Mounting types	Wall
Braking chopper	Integrated or external
EMC filter	Built-in or external
Control modes	Scalar, Vector
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Communication options	Modbus, Profibus, CANopen, Ethernet
Ambient temperature range	-10°C to +50°C
Cooling method	Air-cooled
