3.3 HMP5 probe

136 [5.35]

Ø 25

[0.98]

M12/5

41 [1.61]

253 [9.96]

243 [9.57]

Ø 12

[0.47]

Ø 13.5

[0.53]

Probe cable

2 m [6.56 ft] or 10 m [32.8 ft]

Ø 5

[0.2]

[in]

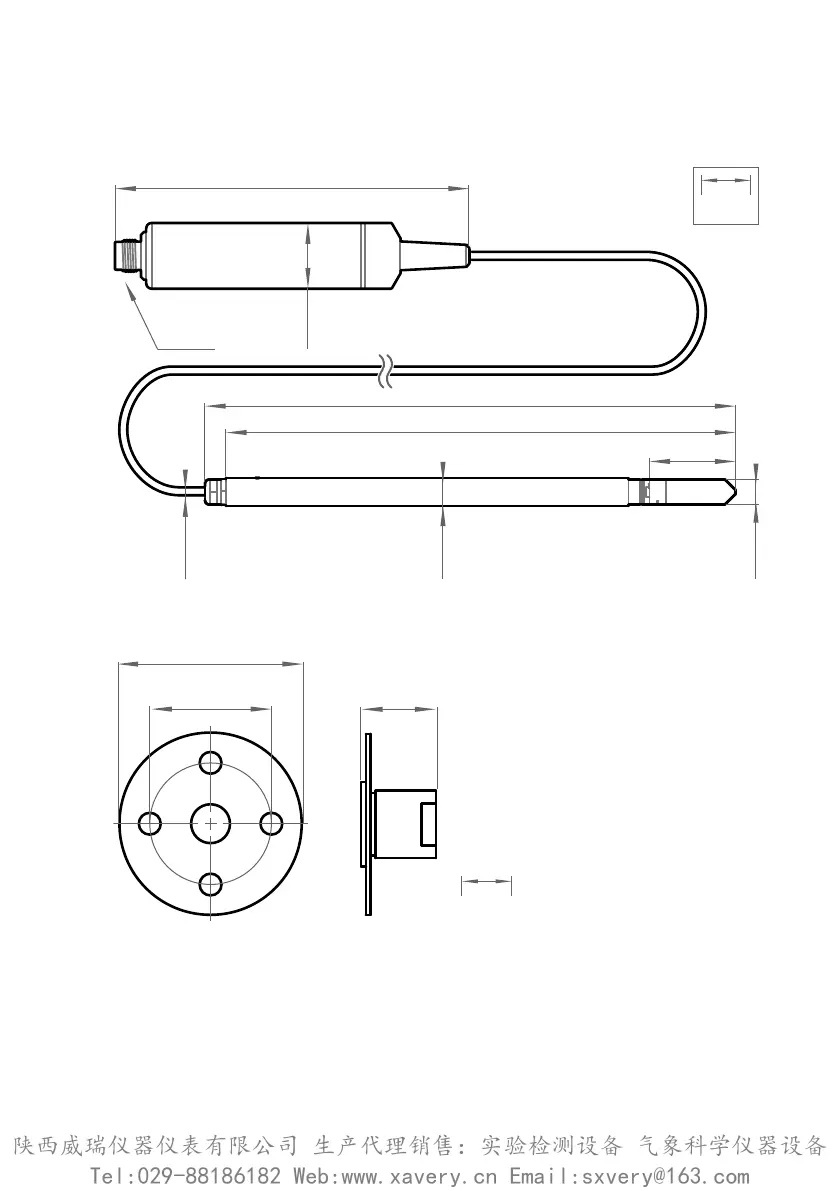

Figure 5 HMP5 probe dimensions

[in]

75 [2.95]

50 [1.96] 19 [0.75]

Figure 6 Optional mounting ﬂange 210696 dimensions

Vaisala HUMICAPâ Humidity and Temperature Probe HMP5 is designed for high-temperature

applications such as baking ovens, pasta dryers, and industrial drying kilns, where

measurement performance and chemical tolerance are essential.

• Temperature measurement range −70 … +180 °C (−94 … +356 °F)

Chapter 3 – Installation
