3.5.1 Attaching ball valve kit to process

G1/2

ISO 228/1

Ø21.5 (drilling)

Ø14

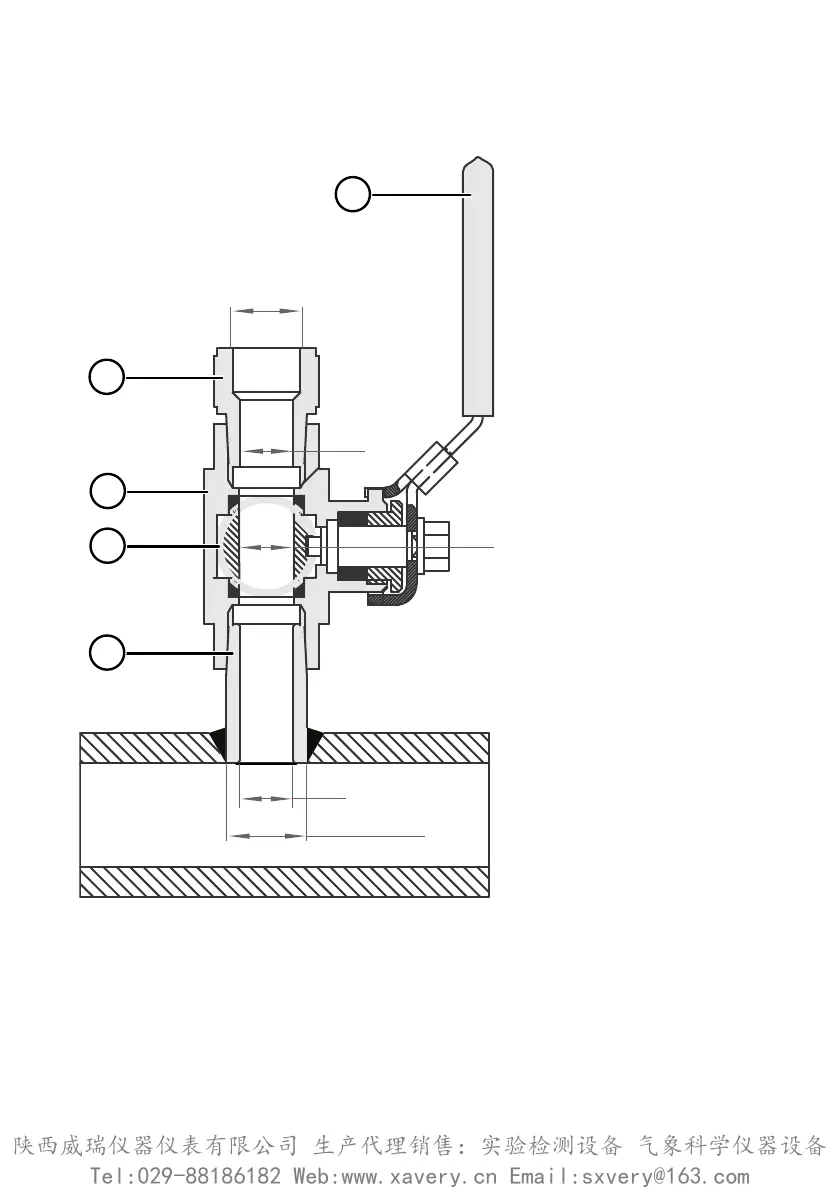

1 Ball valve handle: must point to the same direction as the ball valve body when installing.

2 Extension nipple, threads G1/2 ISO228/1 and R1/2 ISO7/1.

3 Ball valve body. When tightening the assembly, turn only from the ball valve body.

4 Ball of the ball valve.

5 Welding joint, threads R1/2 ISO7/1.

HMP3, HMP4, HMP5, HMP7, HMP8, HMP9, MMP8, TMP1 User Guide M212022EN-D
