5. Configuring Analog Outputs
5.1 Analog Output Configuration
Overview
Indigo 201 has 3 analog outputs that can be configured with the wireless configuration
interface's Settings > Outputs menu. Each output has the same set of configuration options
(analog output 1 shown in example):

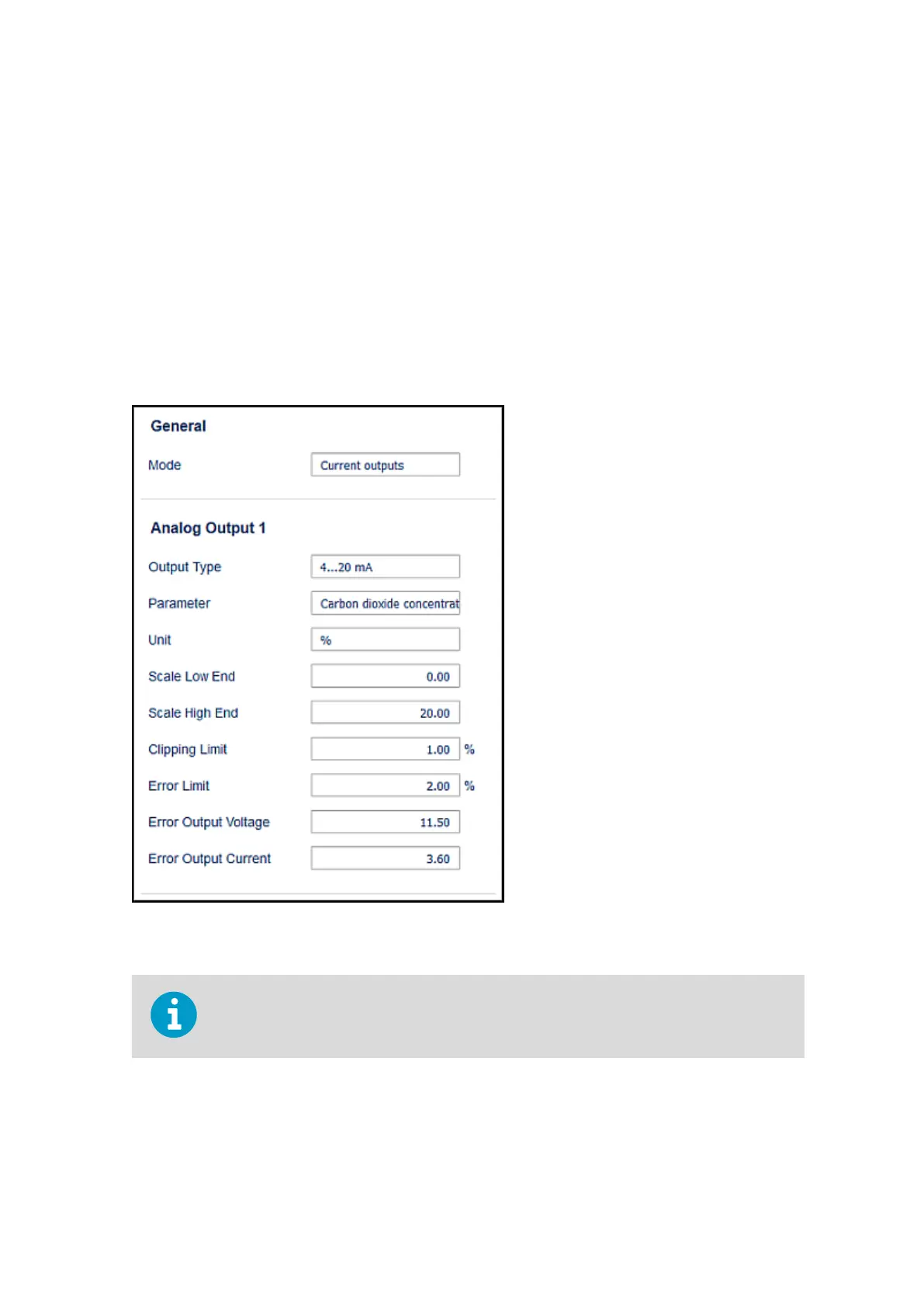

Figure 22 Analog Output Configuration Options
Note that the Mode selection (under General)
defines whether the outputs are used for
voltage or current output.
Receiving Analog Output Settings Automatically from Probe
Indigo can receive the analog output settings automatically from the connected probe in the
following cases:
