Valor H6 - Page 12

12
36-1/8”
Fireplace Opening
Wall
Min. 8” to
wall
3”
Face of
Finished
Wall
Shading denotes
allowable location
for combustible
mantel legs
Note
Right Side clearances are the same
FIREPLACE
Depth
1” 2” 3” 4” 5” 6” or greater
Clearance
3” 4” 5” 6” 7” 8”

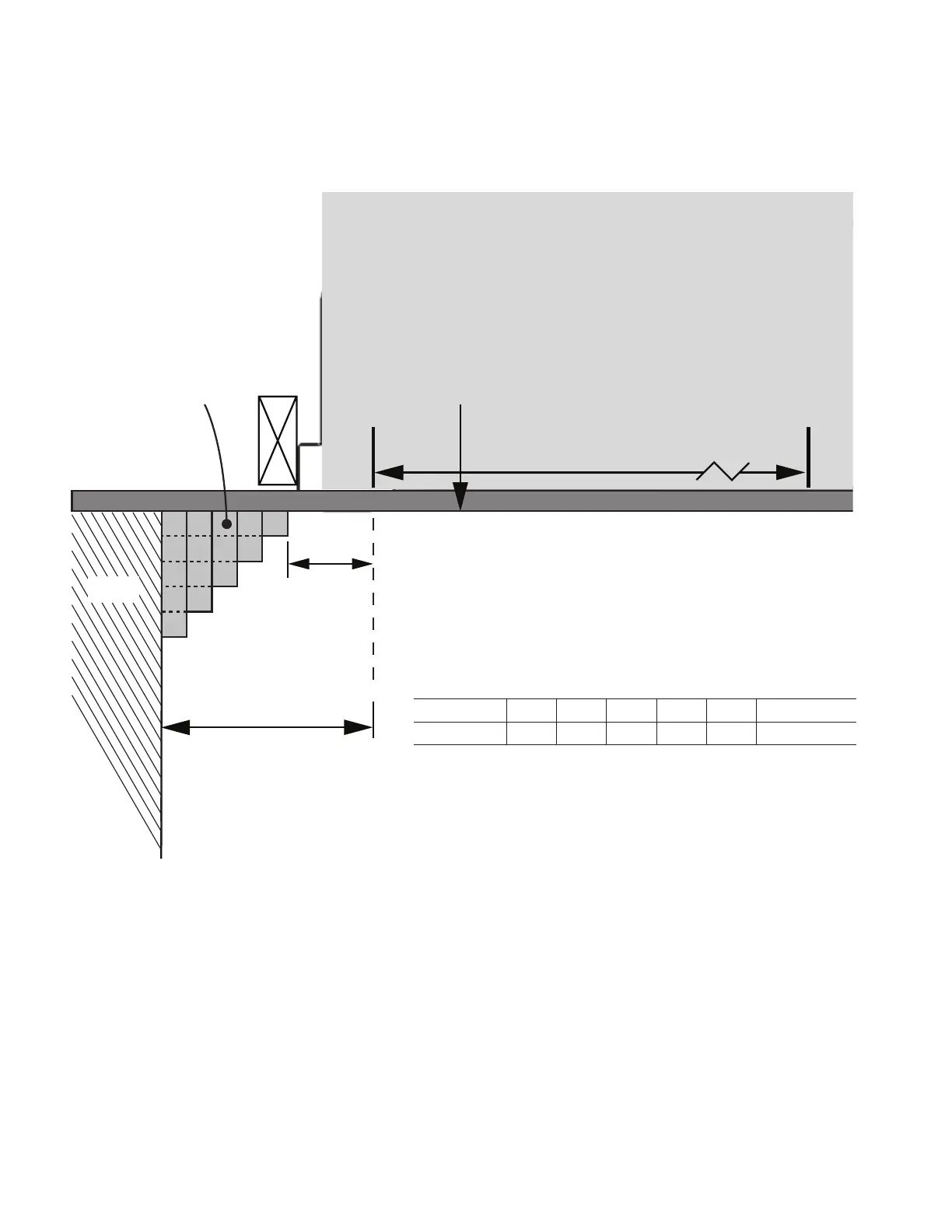

Combustible Sidewall / Mantel Leg—Top View
Planning Combustible Clearances
