Fuel BedsInstallation
Birch Logs 1400BLK
Material required
• Birch logs kit, which contains:
• 8 logs
• 4-piece ceramic plaque
• 1 ember bed
• Gloves, if desired (not supplied)
Installation

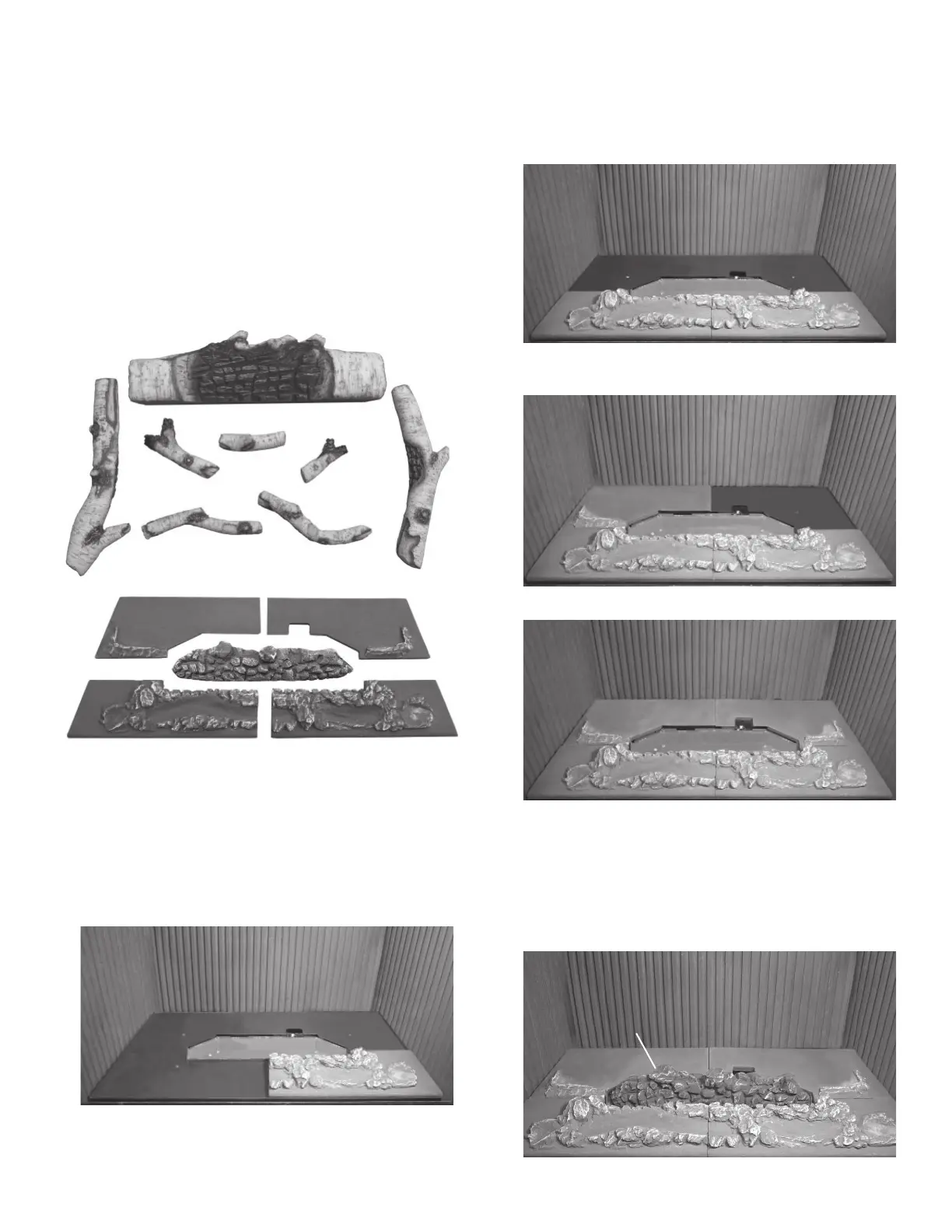

Carefully unpack the kit. Identify each log according to
the above image.
Ceramic Plaque
1. Place the front right ceramic piece of the plaque on
the burner cover.
2. Place the front left ceramic piece.
3. Place the rear left ceramic piece.
4. Place the rear right ceramic piece.
Logs
Please note that the position of the logs is critical to
ensure the proper performance of the appliance.
1. Place ember bed H53 onto the burner. Carefully
locate it centered left to right and front to back.
H54
H75
H77
H74
H55
H56 H57
H76
Ceramic plaque installed
H53
H53
