Liners
Install Liners
The following guidelines apply for all liners with the
exceptions of the 1470RGL Refl ective Glass Liners—
see the instructions provided with this liner set.

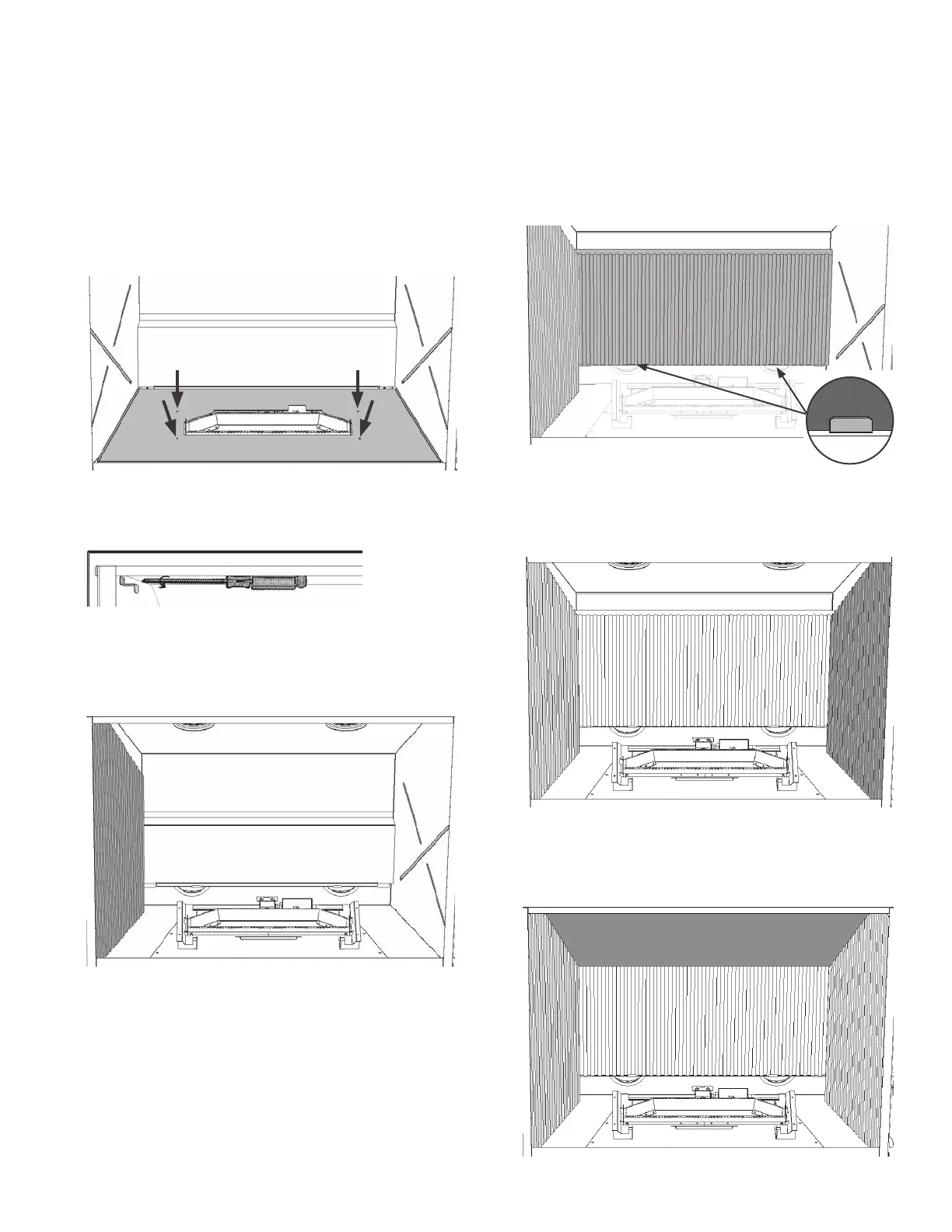

1. Inside the fi rebox, remove the burner cover (4
screws).
2. Inside the fi rebox, at the top on each side, loosen
the screw on the side panel anchors so they can
rotate freely (one per side).
3. Insert the bottom of one of the side panels in the
fi rebox rotating it slightly to fi t it totally into the
fi rebox. Place it against the side wall. Rotate the side
panel anchor to hold the panel in place.
Installation
4. Place the rear panel, top edge angled, against the
back of the fi rebox behind the rail retainers at the
bottom and slide it behind the side panel already
installed.
5. Insert the bottom of the other side
panel in the fi rebox rotating it slightly to fi t in totally
into the fi rebox. Place it against the side wall. Rotate
the side panel anchor to hold the panel in place.
6. Insert the top panel into the fi rebox on top of the
side and rear panels, beveled edge towards the back
of the fi rebox. Slide it across to rest on both side
panels and rear panel.
