Preparation
Window Removal & Reinstallation
Remove Window

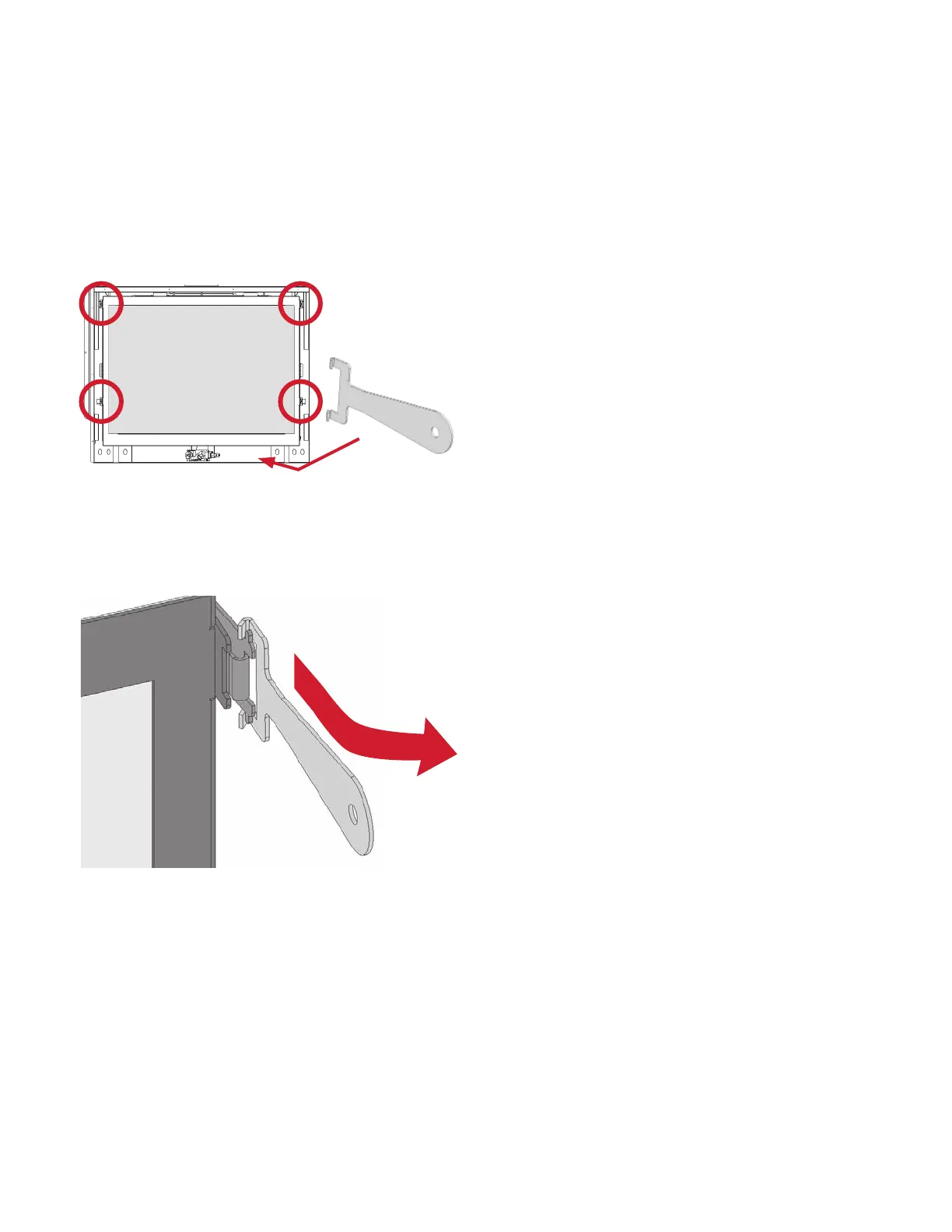

The window is held in place by 4 spring-loaded latches,
2 on each side of the fi rebox. A handle is necessary to
unhook the latches.
1. Locate the handle on the bottom front of the fi re-
place. It is held in place by Velcro. Pull it out.
2. Locate the four latches around the window frame.
3. Starting with the bottom latches, hook the pull
handle to the latches’ vertical tabs and fi rmly pull
forward and outward to unhook.
4. Repeat with the top latches while holding the top of
the window frame.
5. Carefully pull the window straight out to disengage
it from its side brackets holders.
6. Set it aside in a safe place to avoid damage.
7. Reattach the handle to its Velcro at the bottom of
the fi replace so it is easy to fi nd later.
Window latch
pull handle
