Specifications
Approval & Codes
This appliance is certifi ed to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fi replace effi ciencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualifi ed licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certifi ed without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confi rm.
For installations at elevations above 4,500 feet (1,370 m)
in Canada, please consult provincial and/or local
authorities having jurisdiction.
Model
1400MN 1400MP
Gas
Natural Propane
Altitude (Ft.)*
0-4,500 feet*
Input Maximum (Btu/h)
36,000 36,000
Input Minimum (Btu/h)
18,500 15,000
Manifold Pressure (in w.c.)
3.7” 8.5”
Minimum Supply Pressure (in w.c.)
5” 11”
Maximum Supply Pressure (in w.c.)
10” 14”
Main Burner Injector Marking
DMS#32 DMS#49
PSE Pilot Injector Marking
BL22N BL14LP
Min. Rate By-Pass Screw
195 125
Supply Gas
Heater engine 1400MN is used with natural gas.
Heater engine 1400MP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section.

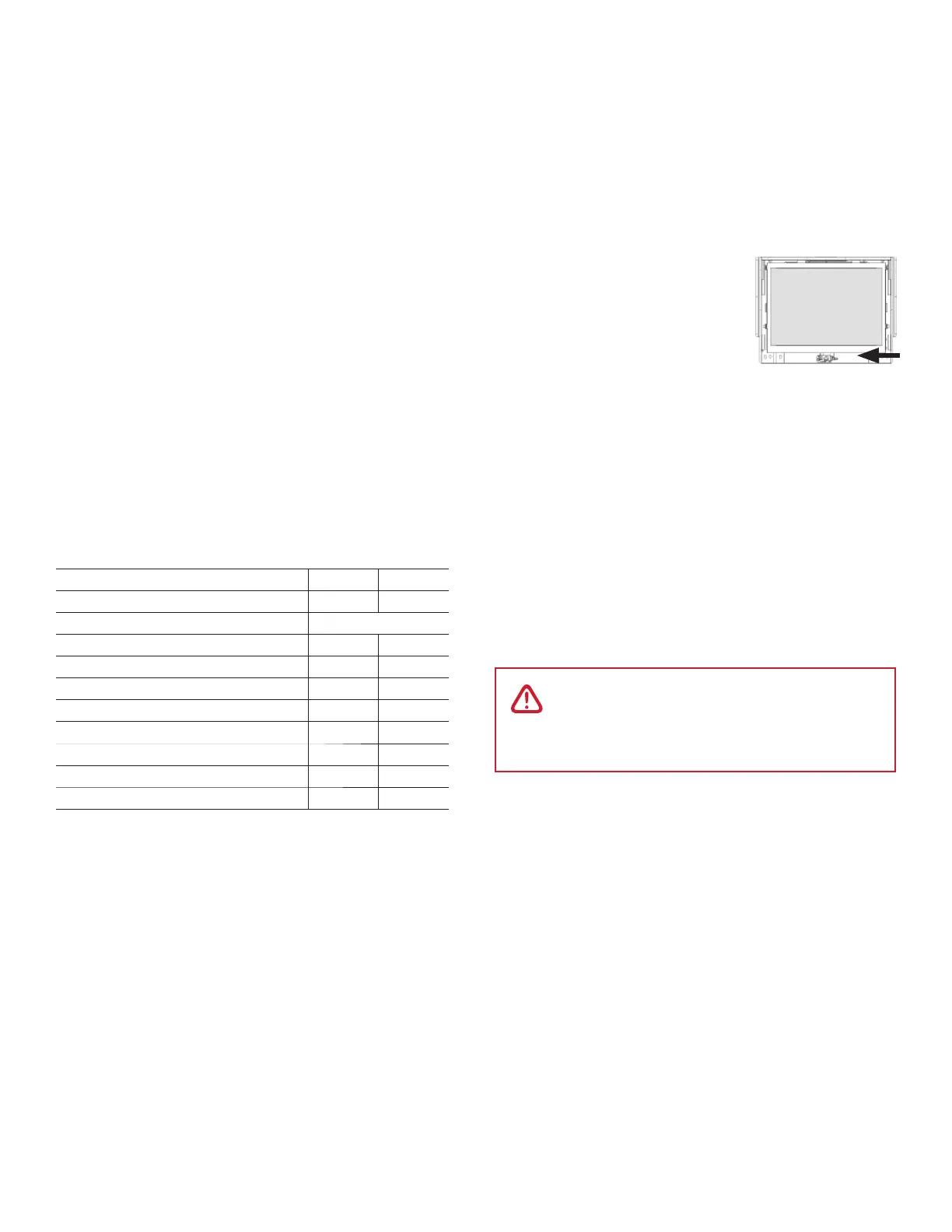

The supply connection is 3/8” NPT
male and located on the right hand
side of the fi rebox.
A shut-off valve (not supplied)
is required on the supply line to
isolate the unit during service. See
Gas Supply on page 48 for details.
Conversion Kits
The 1400M is supplied as natural gas or propane gas
and is fi eld convertible between fuels. See instructions
packaged with the conversion kits for further
information.
Electrical
The 1400M is designed to run on battery power and
does not require an electrical power source to operate
as a heater. However, it requires electrical power to
operate decorative lighting and optional 1495CFK
Circulating Fan Kit or GV60WIFI WiFi module.
HeatShift™System
The 1400M is designed to allow the installation of the
optional HeatShift System, a convection system that
redistributes the warm air fl ow away from the fi replace
opening to a more desirable location using natural
convection, without use of a fan.
The warm air fl ow may be relocated to a position
higher up the wall, or even to another room. The result
is much cooler wall temperatures above the fi replace
opening for locating televisions, artwork, etc.
Please note that the framing and mantel clearances
are aff ected by the installation of the HeatShift
System. Refer to Appendix D - HeatShift System pages
79–98 for more information.
WARNING
Electrical connection IS NOT ALLOWED
when adapting appliance for outdoor use.
