Valor H6 - Optional Heatshift; Remove Convection Baffle; Install Heatshift Take-Off Collars

40
ONLY If You Are Installing HeatShift
Perform the following steps and see Appendix D -
HeatShift System on page 79–98 for more details
regarding HeatShift planning and installation.

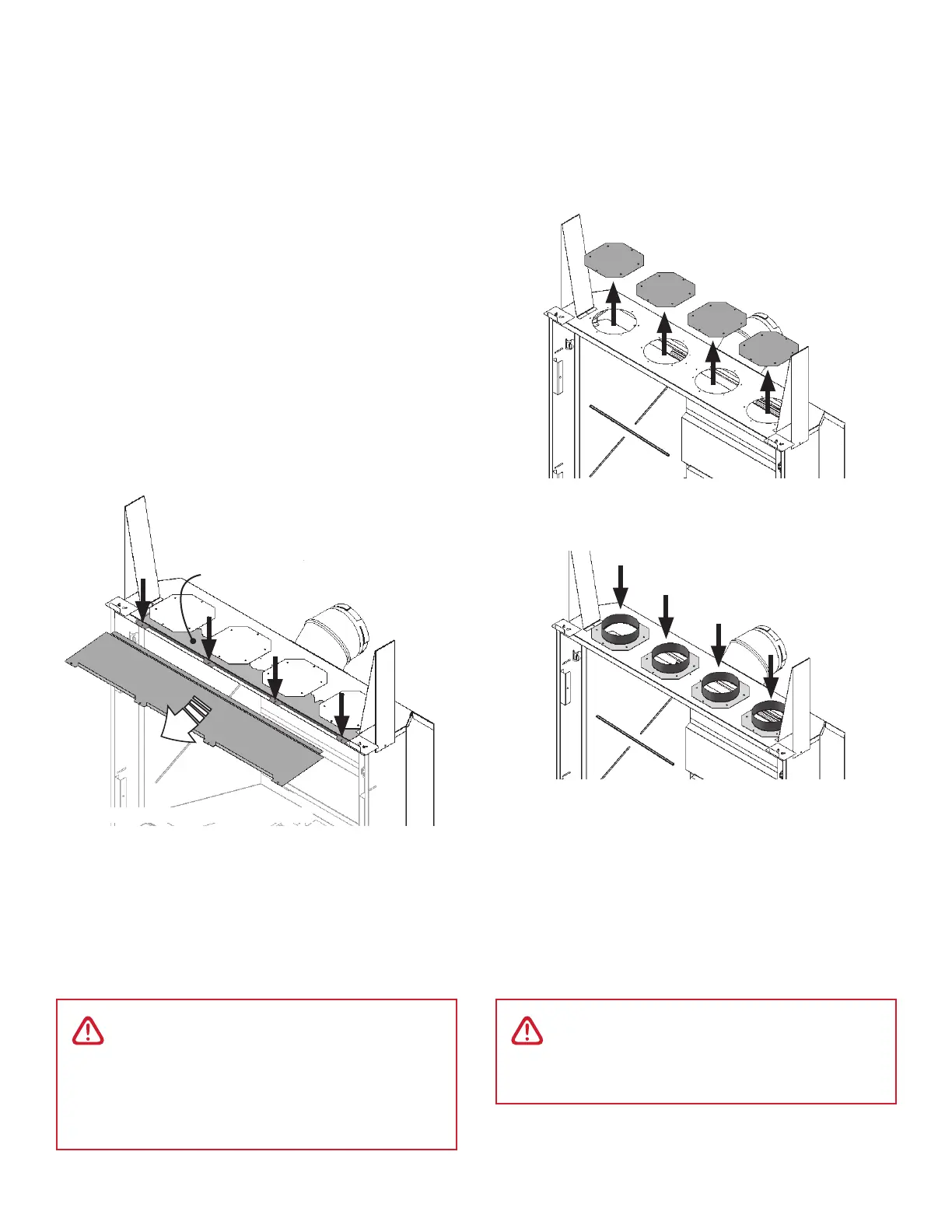

Remove Convection Baffl e
To be eff ective, the HeatShift system requires that an
internal convection baffl e located above the fi rebox
inside the appliance case be removed to allow the hot
air fl ow to convect upwards into ducts installed on the
fi replace.
Remove the convection baffl e from the appliance. It is
held in place by 4 screws located right behind the upper
edge of the fi replace opening. Recycle this panel as it is
no longer needed.
Preparation Optional HeatShift
Install HeatShift Take-Off Collars
1. Remove the four cover plates on top of the appli-
ance case (6 screws each).
2. Install the four take-off collars on the holes on top
of the appliance’s case (6 screws each).
WARNING
All FOUR (4) takeoffs MUST BE
CONNECTED TO PLENUM(S).
WARNING
The H6 fireplace requires the removal
of the internal convection baffle for the
HeatShift system to function properly—
read instructions carefully!
Appliance top panel shown transparent for clarity
Remove convection baffl e—1400M
Convection Baffl e
