Installation With 1430FFK—Fixed Framing Kit
Install Appliance for Fixed Framing Kit
1. Unpack the 1430FFK kit checking that you have all
the pieces on hand.
2. On top of appliance’s case, in front of the stand-off s,
remove the positioning brackets (2 screws each).
On top, each side of the window, remove the con-
vection brackets (1 nut/side); they are not used with
this kit.
3. Fit the upper panel support to the top of the appli-
ance’s case, angle facing rear, and secure (4 screws).
4. At bottom of appliance case, install the lower panel
provided with the kit, as indicated (3 nuts).
5. On the appliance, install the side panels as indicated
(3 screws per side).

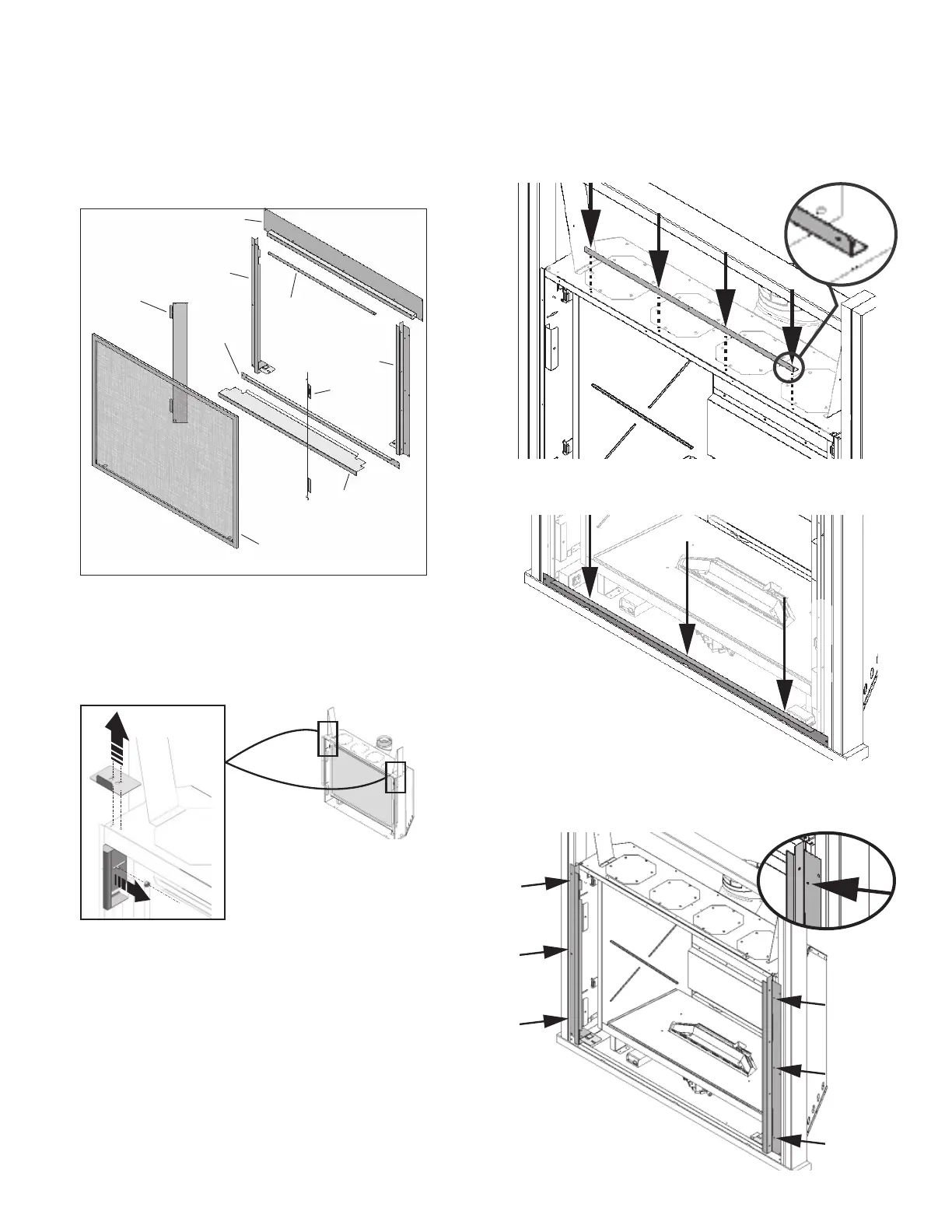

1430FFK Kit content
RH side
panel
LH side
panel
Upper panel
Upper
panel
support
LH side
door
RH side
door
Removable
panel
Lower
panel
Barrier screen
