Fuel BedsInstallation

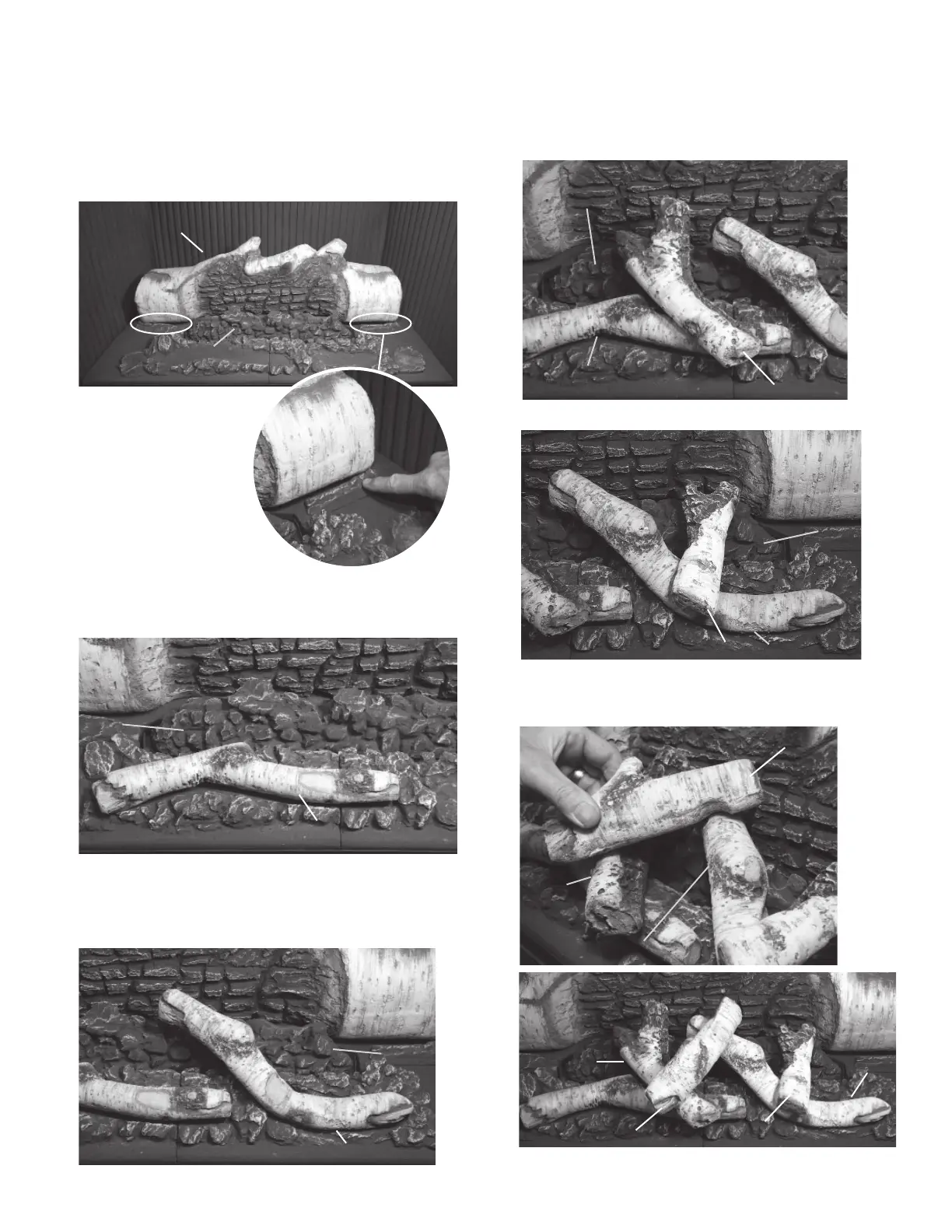

2. Place rear log H74 behind H53; bring log forward to
rest it on both sides against the raised part of the
rear ceramic plate pieces.
3. Place H54 in front of H53, in the left recess of the
ceramic plate.
4. Place H55, its curvy end in the ceramic plaque’s
recess in front of H53 and its other end on H53’s
fl at knob.
5. Place H56 bigger Y log on top of H54 and H53.
6. Place smaller Y log H57 on top of H55 and H53.
7. Place H77 on top of H56 and H55. Note: H55, 56, 57
and H77 do not touch rear log H74.
H74
H53
H55, H56, H57 and H77—front view
H54
H55
H53
H53
H56
H77
H55
H57
H74
H77
H56
H53
H54
H55
H56
H57
H53
H55
