25
Planning Framing—3-4 sided trims
• The 3 and 4-sided trims are adjustable to accomodate up to an additional 3/4” of tile or other fi nish
overtop of the 1/2” non-combustible wall board—Method 1.
• The appliance’s position within the framing cavity may also be adjusted for depth in the framing to
accomodate additional wall fi nish thickness “tucked” behind the trim—Method 2.

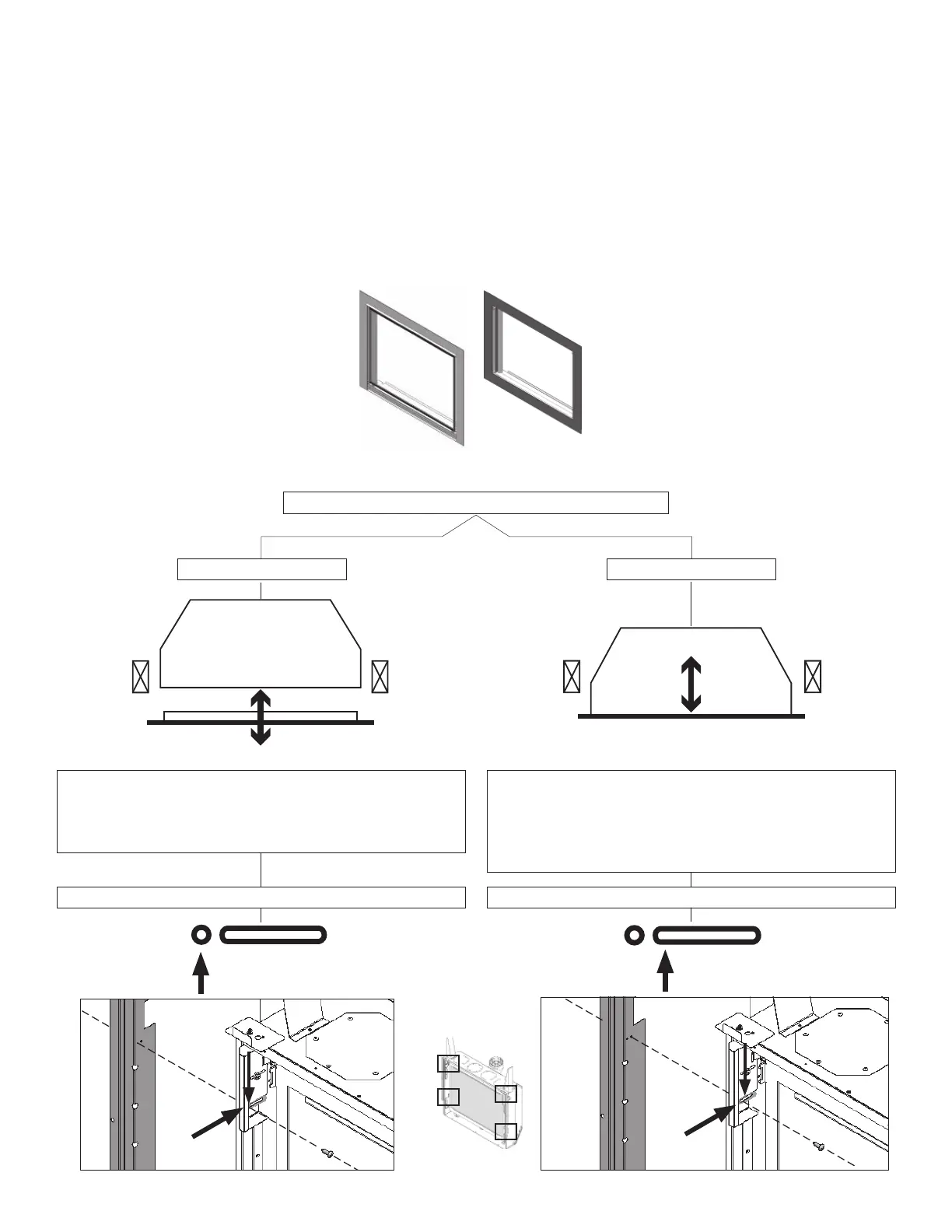

Appliance Depth in Framing—with 3 and 4-Sided Trims
3 and 4-Sided Trims—adjustable position
• wall fi nish thickness: up to 3/4” + 1/2” non-
combustible board
• trim’s depth on appliance can be adjusted to
accomodate wall fi nish thickness
• wall fi nish thickness: more than 3/4” + 1/2” non-
combustible board
• appliance’s depth can be adjusted in the framing to
accomodate additional wall fi nish thickness of up to
approximately 2”
• frame fi xing brackets fi xing position • frame fi xing brackets fi xing position
Installation Method 1 Installation Method 2
Method 1
Method 2
Use slotUse hole
1440 4-sided
trims
1435 3-sided
trims
