Installation
Fuel Beds

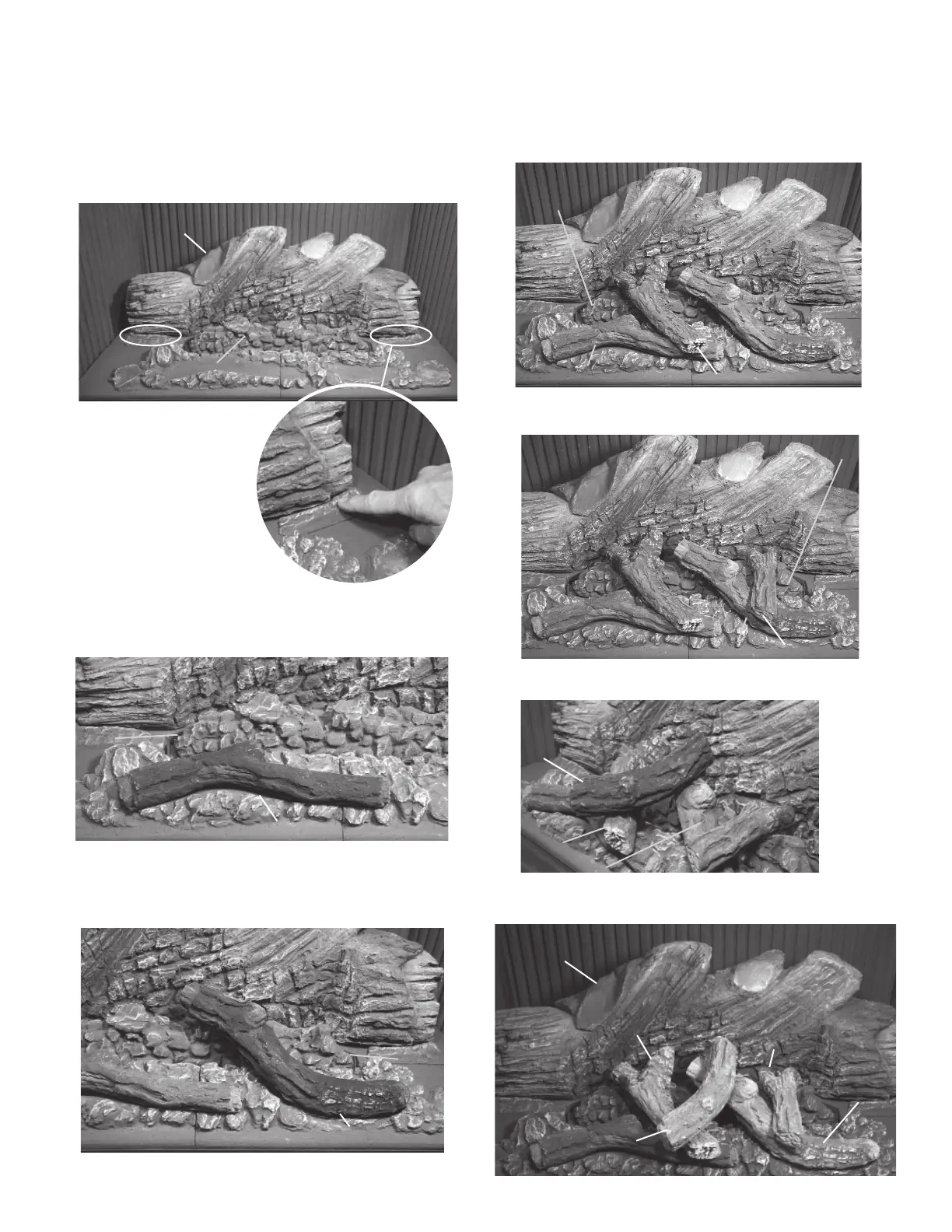

2. Place rear log H68 behind H53; bring log forward to
rest it on both sides against the raised part of the
rear ceramic plate pieces.
3. Place H44 in front of H53, in the left recess of the
ceramic plaque.
4. Place H45, its curvy end in the ceramic plaque’s
recess in front of H53 and its other end on H53’s
fl at knob.
H68
H53
H44
H53
H45
H53
5. Place H46 big Y shaped log on top of H44 and H53.
6. Place small Y log H47 on top of H45 and H53.
7. Place H71 on top of H46 and H45.
Note: H45, H46, H47 and H71 do not touch rear
log H68.
H46
H53
H44
H47
H53
H45
H71
H45
H46
H45
H47
H68
H71
H46
To Next Page
