Appendix D - HeatShift System

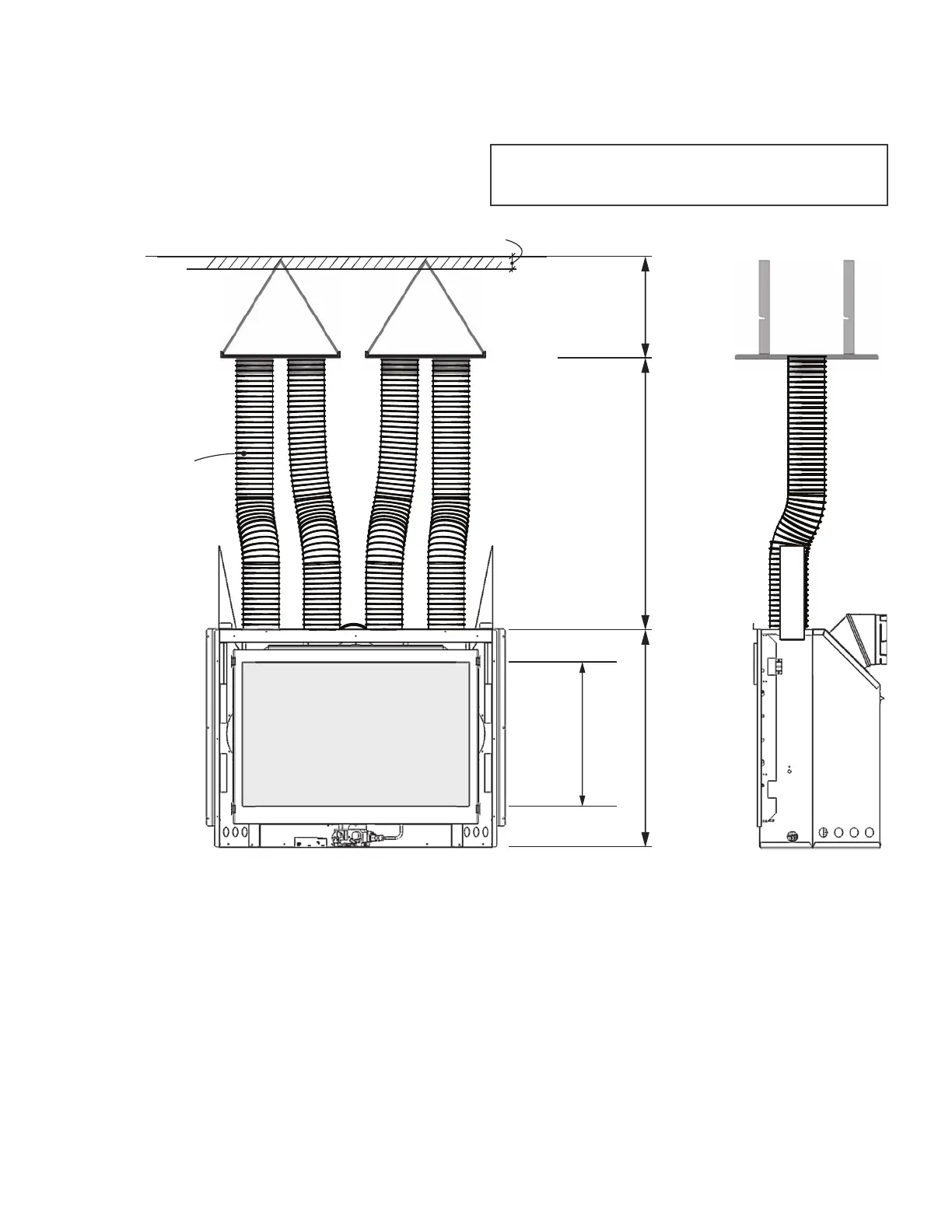

Overview (applies to LDK7)
Min. 2-1/2” opening required at ceiling
Min. 14”
Flexible or rigid,
5” diameter
UL-181, Class 1
Air Duct (4)
(use LDK6 kit
or equivalent)
Min. 30”, Max. 12’-0” 6HHWDEOHIRUR΍VHWV
H5: 29” H6: 34-1/2” H5: 19-1/4” H6: 25-1/2”
Ceiling
Min. 1”
clearance to
combustibles
around pipe
NOTE Discharge opening must be located in the
same room as fireplace when using LDK7.
