Valor H6 - Page 90

90
Appendix D - HeatShift System
Rough Frame Opening
Rough
Frame
Opening
See Installation
Manual packed
with appliance
for minimum
combustible
cavity dimensions
Note - Min. cavity
dimensions may
be dictated by
LDK plenum when
installing across
corners.
Min. 1/2”
clearance to
combustibles
at ends
See detail
LDK 1 = 49”
LDK 4 = 39”
LDK 3 = 15”
LDK 9 = 31”
LDK 1 = 4”
LDK 4 = 4”
LDK 3 = 8”
LDK 9 = 4”
2 x 4 on edge
2 x 4 on edge
Framing on edge
Vertical vent will pass by the plenum
without osetting the vent.

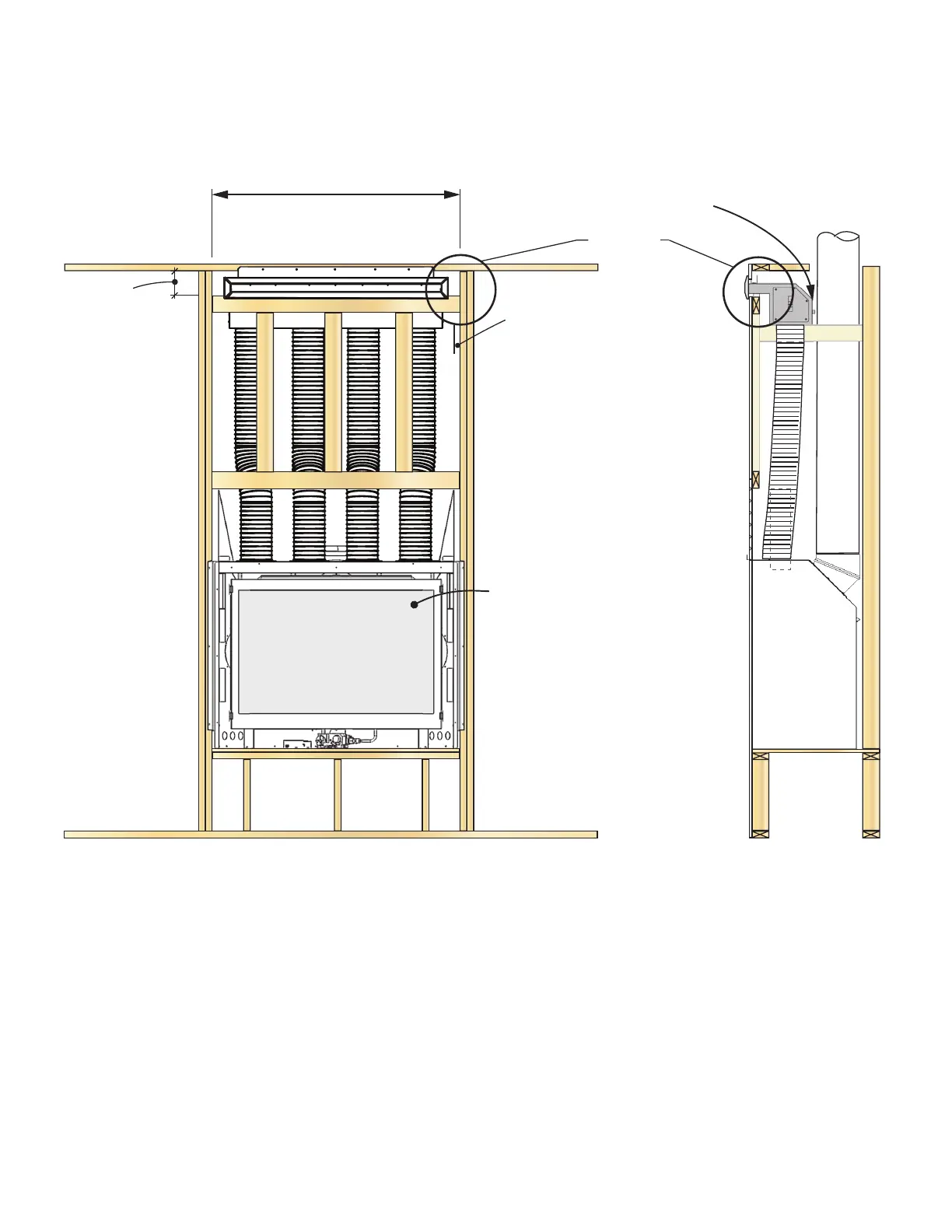

Framing and Clearances—Plenums, front view
!
