VAMP Ltd Feeder and motor manager
Technical description
VAMP 257
VM257.EN002 VAMP 24h support phone : +358 (0)20 753 3264
115

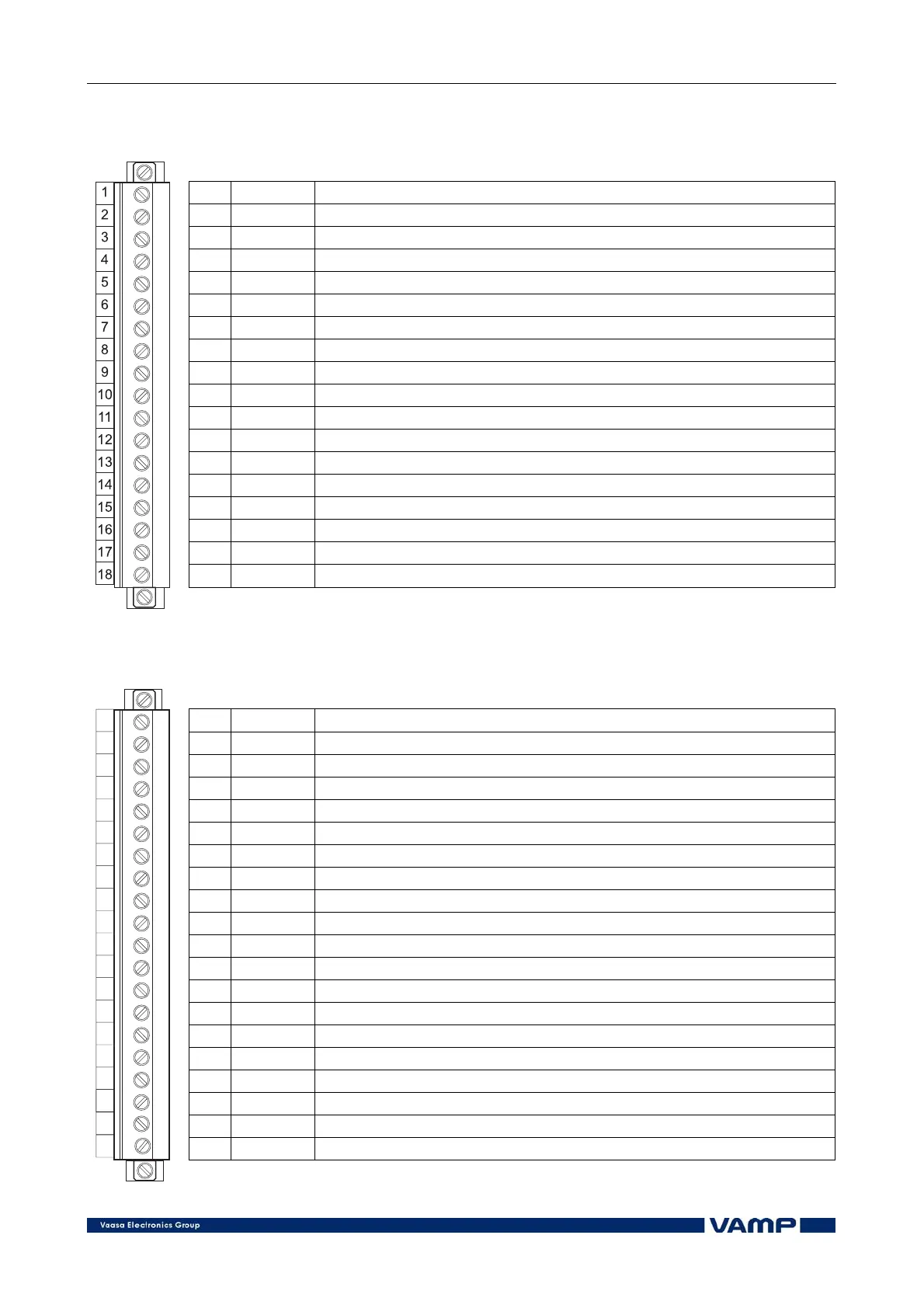

Terminal X7
No: Symbol Description
1 DI7 Digital input 7
2 DI8 Digital input 8
3 DI9 Digital input 9
4 DI10 Digital input 10
5 DI11 Digital input 11
6 DI12 Digital input 12
7 COM1 Common potential of digital inputs 7 - 12
8 DI13 Digital input 13
9 DI14 Digital input 14
10 DI15 Digital input 15
11 DI16 Digital input 16
12 D117 Digital input 17
13 DI18 Digital input 18
14 COM2 Common potential of digital inputs 13 – 18
15 T4 Trip relay 4
16 T4 Trip relay 4
17 T3 Trip relay 3
18 T3 Trip relay 3
Terminal X8
No: Symbol Description
1 DI21 Digital input 21
2 DI22 Digital input 22
3 COM1 Common potential of digital inputs 21-22
4 DI23 Digital input 23
5 DI24 Digital input 24
6 COM2 Common potential of digital inputs 23-24
7 DI25 Digital input 25
8 DI26 Digital input 26
9 COM3 Common potential of digital inputs 25-26
10 DI27 Digital input 27
11 DI28 Digital input 28
12 COM4 Common potential of digital inputs 27-28
13 T8 Tip relay 8/ Digital input 32
14 T8 Tip relay 8/ Digital input 32
15 T7 Tip relay 7/ Digital input 31
16 T7 Tip relay 7/ Digital input 31
17 T6 Tip relay 6/ Digital input 30
18 T6 Tip relay 6/ Digital input 30
19 T5 Tip relay 5/ Digital input 29
20 T5 Tip relay 5/ Digital input 29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
