VAMP Ltd Feeder and motor manager
Operation and configuration
VAMP 257
VM257.EN002 VAMP 24h support phone +358 (0)20 753 3264
9
2.2.1. Display
The manager is provided with a backlit LCD dot matrix
display. The display has 128 x 64 dots, which enables showing
21 characters in one row and eight rows at the same time. The
display has two different purposes: one is to show the single
line diagram of the feeder with the object status, measurement
values, feeder identification etc. (Figure 2.2.1-1). The other
purpose is to show the configuration and parameterization
values of the manager (Figure 2.2.1-2).

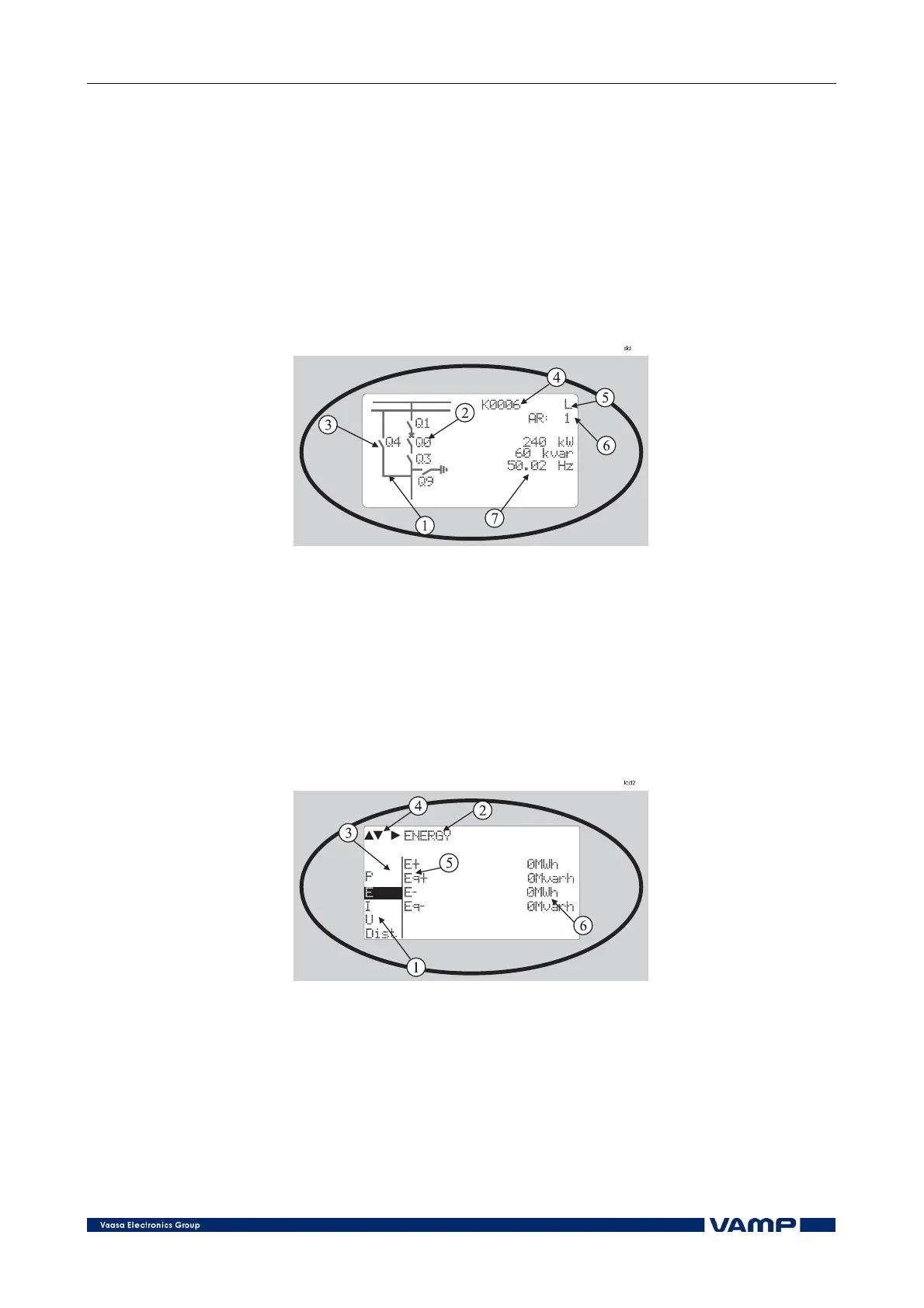

Figure 2.2.1-1 Sections of the LCD dot matrix display
1. Freely configurable single-line diagram
2. Six controllable objects
3. Eight object statuses
4. Bay identification
5. Local/Remote selection
6. Auto-reclose on/off selection (if applicable)
7. Freely selectable measurement values (max. six values)
Figure 2.2.1-2 Sections of the LCD dot matrix display
1. Main menu column
2. The heading of the active menu
3. The cursor of the main menu
4. Possible navigating directions (push buttons)
5. Measured/setting parameter
6. Measured/set value
