VAMP 257 - Construction; Dimensional Drawing and Panel Cut-out

VAMP Ltd Feeder and motor manager
Technical description
VAMP 257
VM257.EN002 VAMP 24h support phone : +358 (0)20 753 3264
147
6. Construction
6.1. Dimensional drawing
208.0
155.0
27.0
181.0
28.0
137.0
190.0
193.0
>20.0
1.0-10.0
139.0
P200_ulkomitat_kannella
PANEL
CUT-OUT

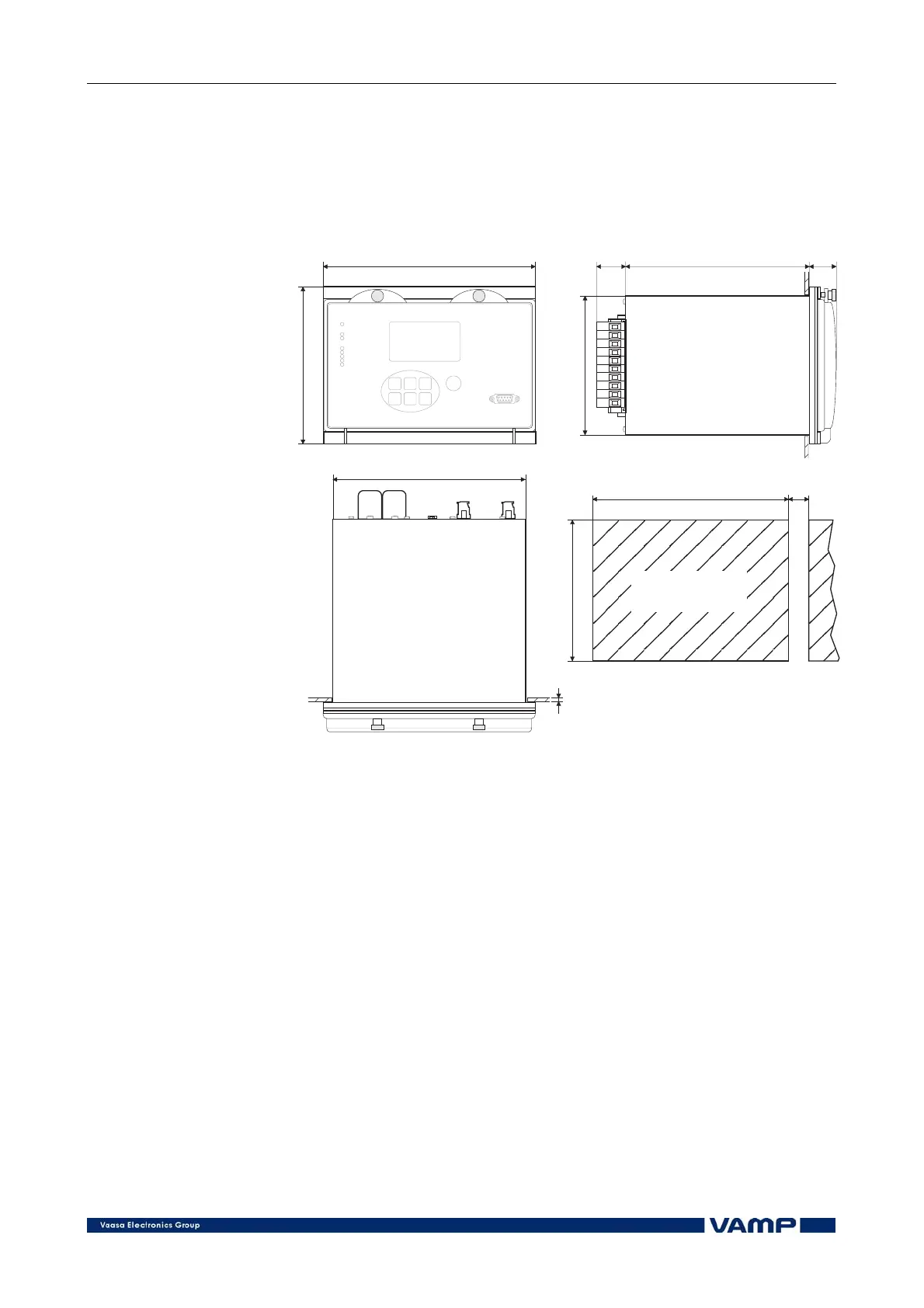

Figure 6.1-1. Dimensional drawing and panel cut-out dimensions
