VAMP 257 - Page 61

VAMP Ltd Feeder and motor manager
Technical description
VAMP 257
VM257.EN002 VAMP 24h support phone : +358 (0)20 753 3264
19

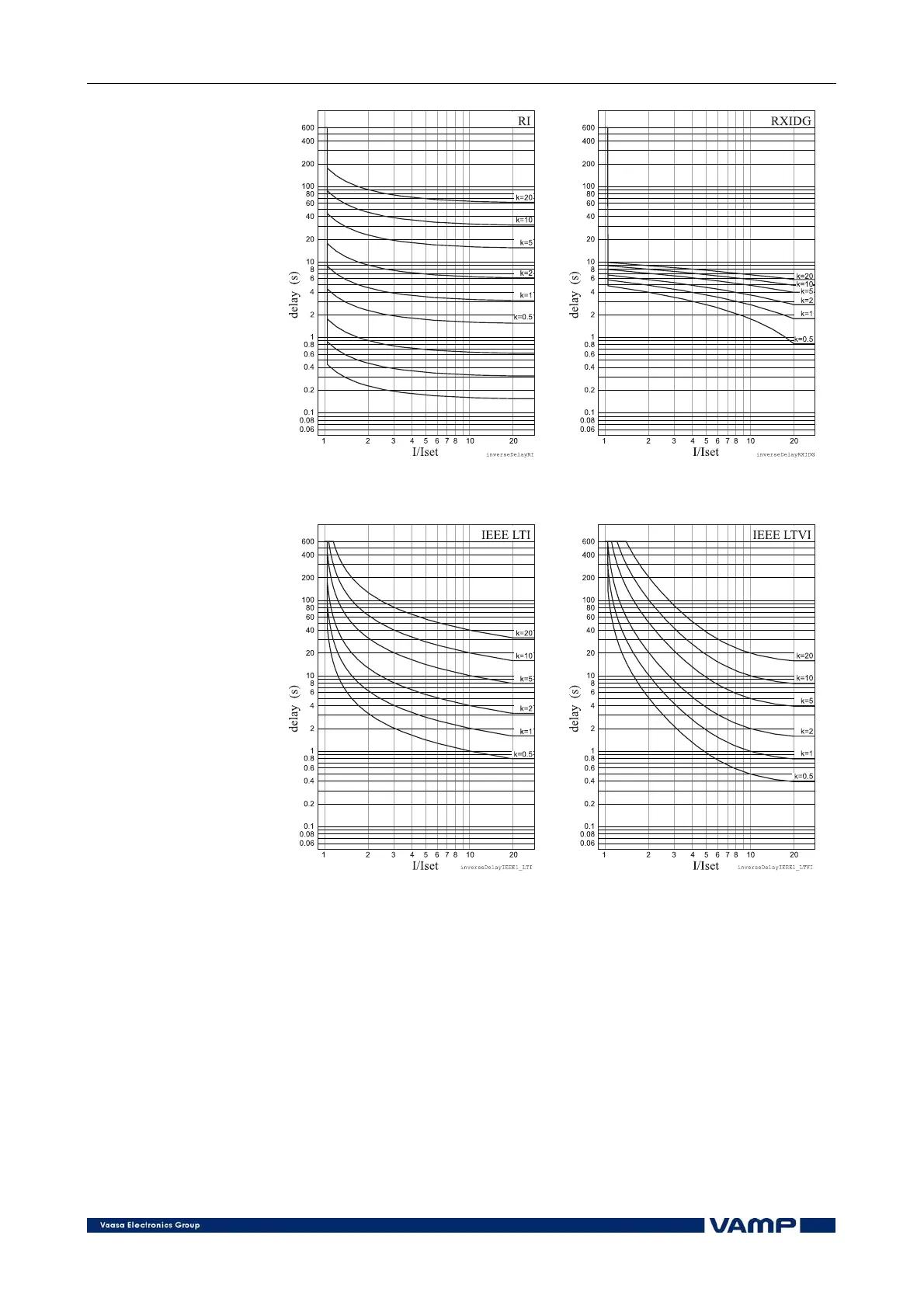

Figure 2.3.1-7 Inverse delay of type
RI.
Figure 2.3.1-8 Inverse delay of type
RXIDG.
Figure 2.3.1-9 ANSI/IEEE long
time inverse delay
Figure 2.3.1-10 ANSI/IEEE long
time very inverse delay
