VAMP 257 - Page 63

VAMP Ltd Feeder and motor manager
Technical description
VAMP 257
VM257.EN002 VAMP 24h support phone : +358 (0)20 753 3264
21

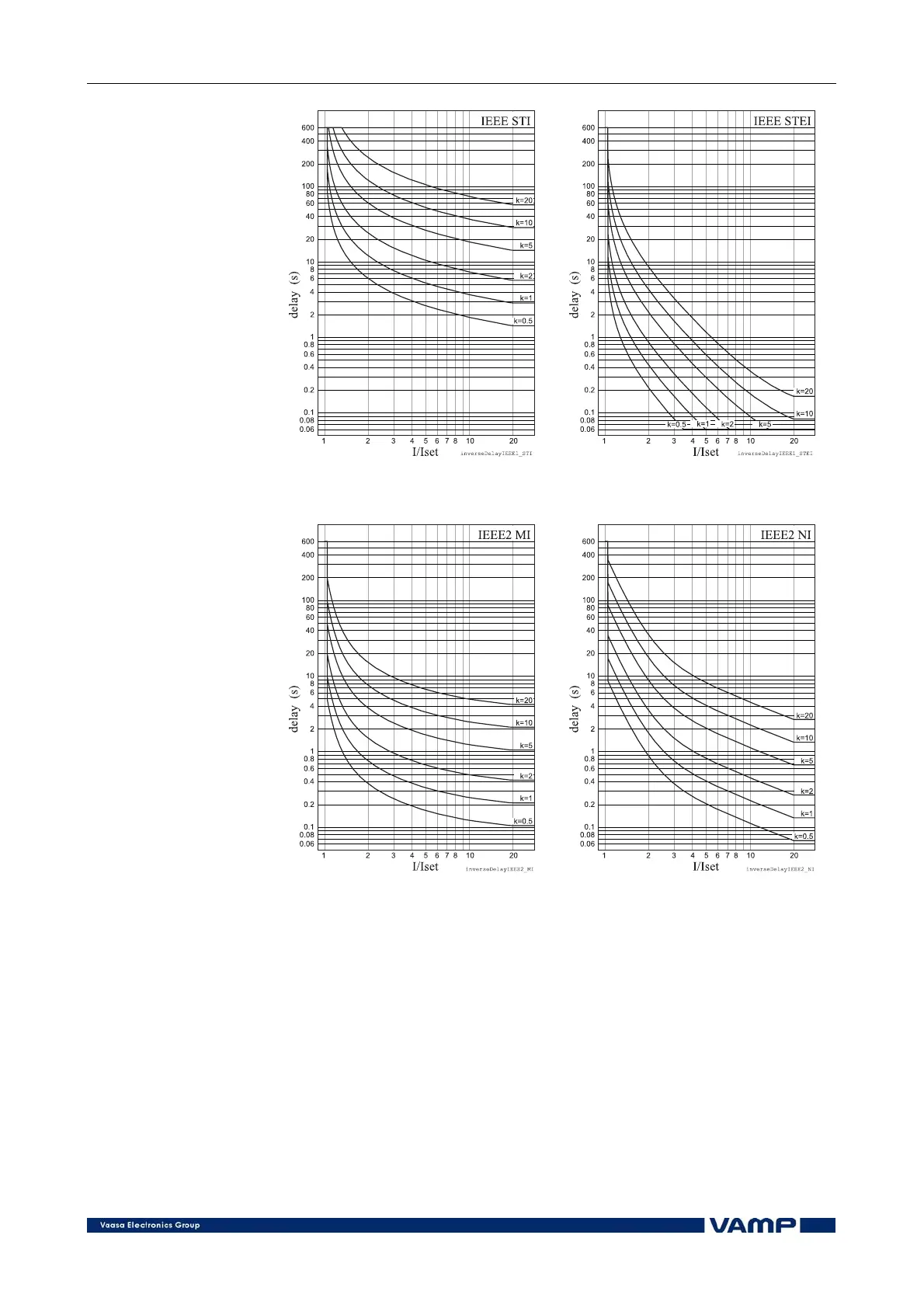

Figure 2.3.1-15 ANSI/IEEE short
time inverse delay
Figure 2.3.1-16 ANSI/IEEE short
time extremely inverse delay
Figure 2.3.1-17 ANSI/IEEE2
moderately inverse delay
Figure 2.3.1-18 ANSI/IEEE2 normal
inverse delay
