AIR N ARC
®
200 SERIES ALL-IN-ONE POWER SYSTEM
®
SECTION 6: MAINTENANCE
090019-OP_r0 PAGE - 79
6.5.7.1 ACCESSING THE DRIVE BELTS -
REMOVING THE BELT GUARD SHIELD
The belt guard must be removed to access the drive
belts. The Air N Arc 200 Series All-In-One Power System
utilizes two poly-link series v-belts to drive the
compressor unit, and a single serpentine v-belt to drive
the generator system. Consult Figure 6-9, and the
following procedure to access the drive belts:
1. Disconnect the battery ground cable.
TOOLS/ITEMS NEEDED
REPLACEMENT
PART(S)
Large Phillips Head Screw
Driver or Drill Bit & Drill
Not Applicable
KEY DESCRIPTION KEY DESCRIPTION
A TRUSS HEAD SCREW (x 10) C COMPRESSOR V-BELT: POLY-LINK (x 2) / Outside track on
engine drive sheave
B NYLON WASHER (x 10) D GENERATOR V-BELT: SERPENTINE / Inside track on
engine drive sheave

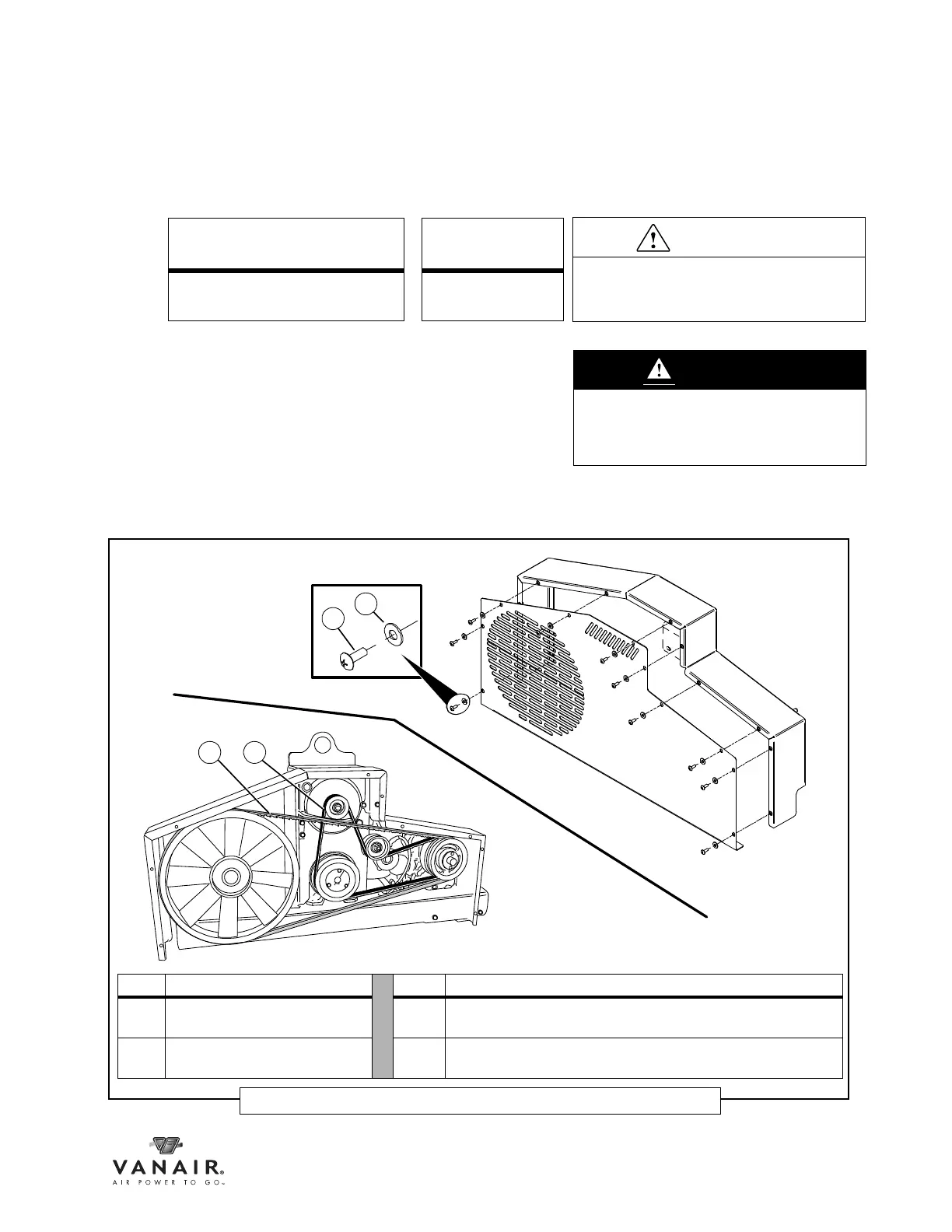

Figure 6-9: Drive Belt Access — Belt Guard Shield Removal
A
B
C D
WARNING
Before performing maintenance or repair
operations on the machine, ensure that
all power has been removed and locked
out to prevent accidental start-up.
WARNING
Relieve pressure from the compressor
system before performing maintenance
on any components.
