4. When tab is positioned parallel with the slot,
push it/pull it through the slot.
5. After the tab is through the slot, twist it 90°, as
shown in [F], to secure it into place.
6.5.7.7 ROUTING COMPRESSOR BELTS ONTO
PULLEY GROOVES
Refer to Figures 6-15 and 6-16, and the following
procedure to mount the compressor link drive belts onto
the compressor and engine pulleys.
1. Make certain that the belt is sized correctly
before setting it into place on the pulleys.
Consult Sections 6.5.7.4 through 6.5.7.6 to
size and assemble the belt.
2. The belt should be linked as a completed loop
prior to setting it onto the pulley tracks. Run
belt around the proper belt groove on the
engine pulley, taking care that the belt’s tabs
are facing inward toward the pulley, and the
arrows on the belt point in the same direction
as the arrow of rotation on the compressor
pulley (see Figure 6-12, [B] and [D]).
KEY DESCRIPTION KEY DESCRIPTION
A
TAB D THUMB (pushing on link end)
B LINK END E TOP VIEW: tab pivoting into link slot
C THUMB (pushing on tab) F TOP VIEW: twist tab to lock the link in place

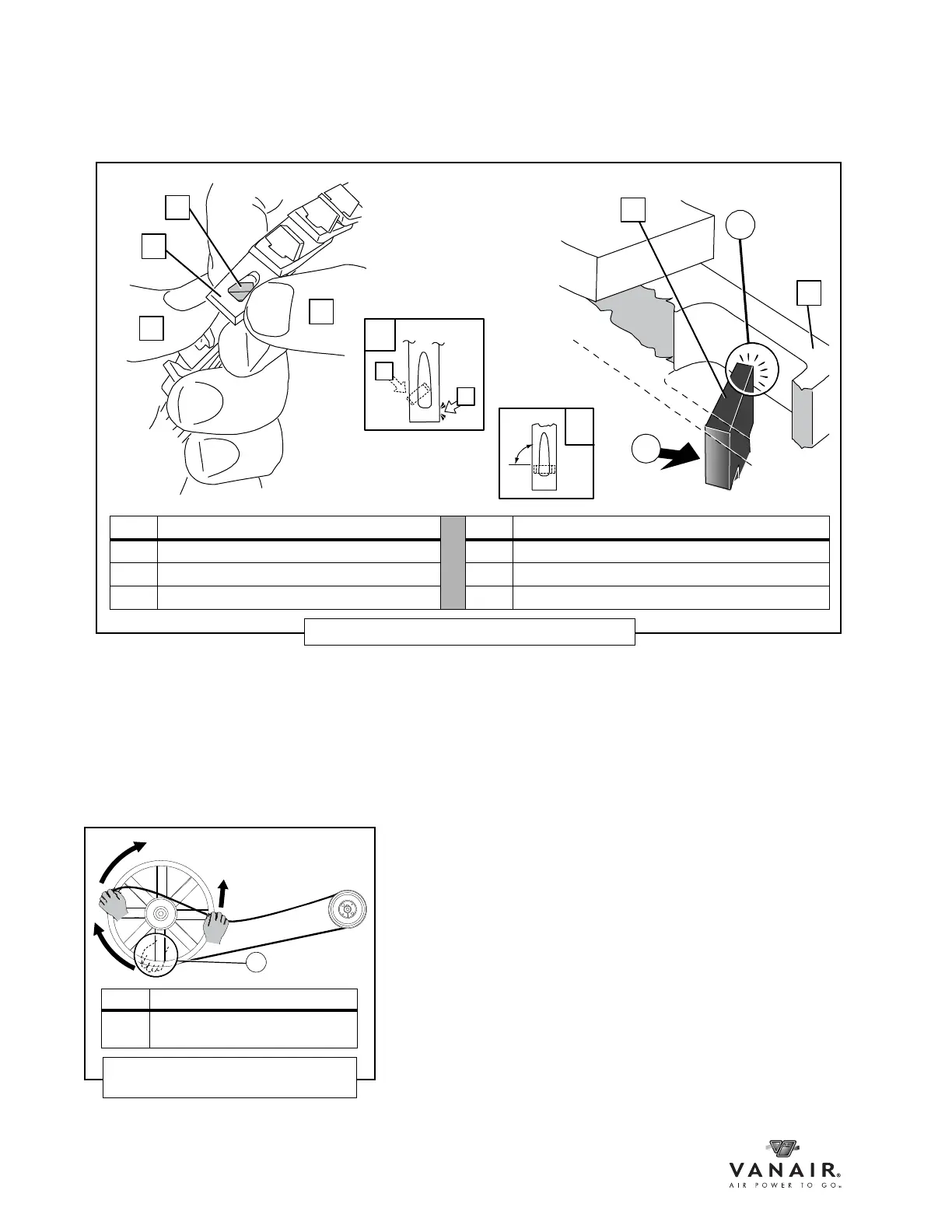

Figure 6-14: Attaching Compressor Belt Link
E
C
D
C
D
A
B
2
1
B
A
90°
F
KEY DESCRIPTION
A Start at bottom edge of com-
pressor pulley
Figure 6-15: Setting Compressor
Belt into Place
A
