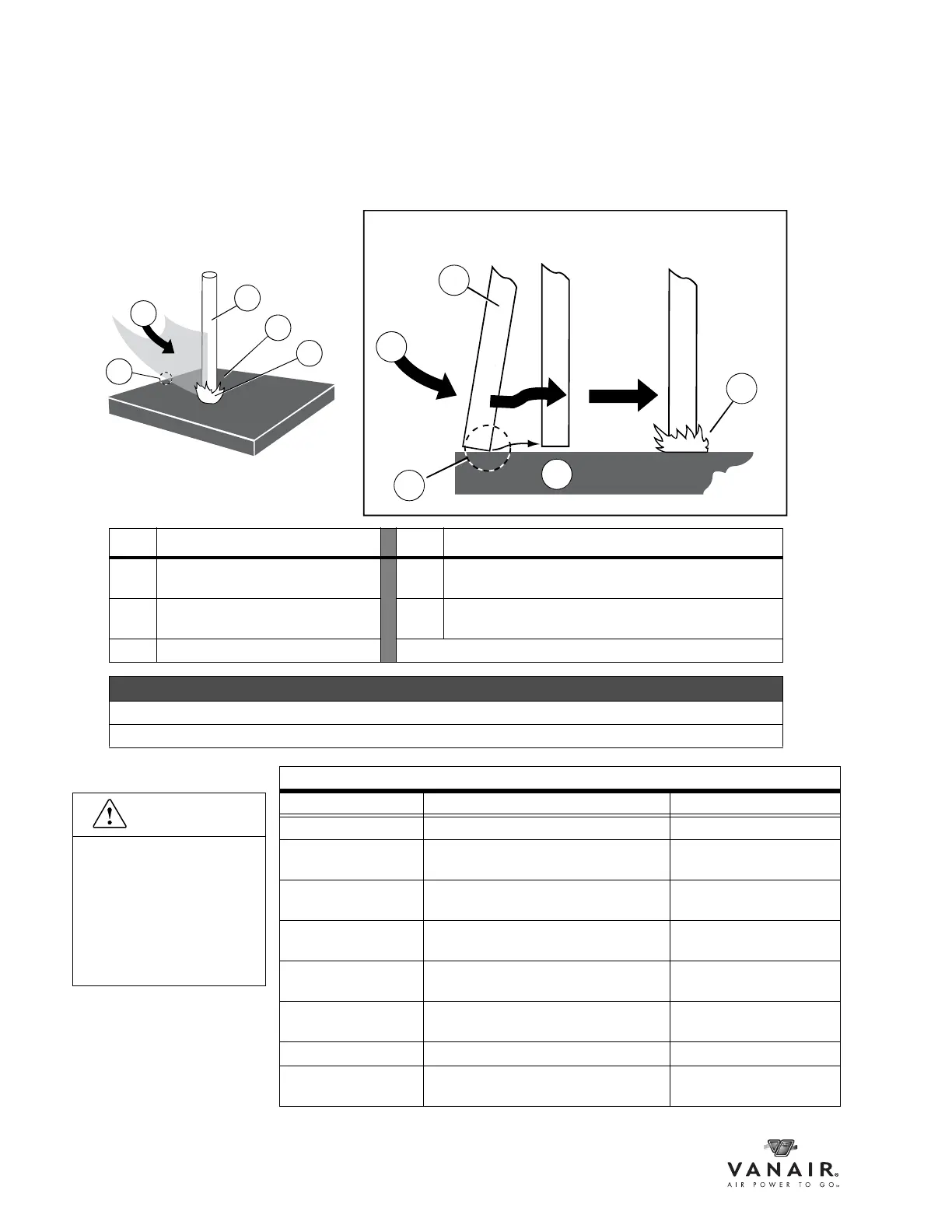

A.7 ELECTRODE IGNITION PROCEDURE
KEY DESCRIPTION KEY ACTION
1 ELECTRODE
A Direction of striking: electrode is dragged across the
work piece in a similar manner to striking a match
2 WORK PIECE SURFACE B Electrode is lifted slightly when it touches the work
piece, but continues on with the striking motion
3 ARC
NOTES
If arc goes out, electrode was lifted too high; repeat with electrode closer to work piece surface
If electrode sticks to work piece surface, quickly twist the electrode to free it.
1
2
3
2
1
B
A
CLOSE-UP PROFILE OF ELECTRODE IGNITION
A
B
3
WARNING
Before attempting any
welding procedure, the
operator must be aware of
general safety practices,
and particularly those
pertaining to welding, as
found in Section 1.4 of
this manual.
TABLE A: PROCESS/CONTACTOR SWITCH SETTINGS
Switch Setting Process Output On/Off Control
Electrode Hot - Wire MIG (GMAW) Electrode Hot
Electrode Hot - Stick Stick (SMAW)
Select Preferred Dig
Electrode Hot
Electrode Hot - Stick Air Carbon Arc (CAC-A) Cutting and
Gouging Select Any Dig
Electrode Hot
Electrode Hot - Lift Arc
w/Auto-Crater
TIG (GTAW) Lift Arc w/Auto-Crater
(GTAW)(DC only)
Electrode Hot
Electrode Hot - Lift Arc
w/Auto-Stop
TIG (GTAW) Lift Arc w/Auto-Stop
(GTAW)(DC only)
Electrode Hot
TIG - Remote On/Off TIG (GTAW) With HF Unit, Pulsing
Device, or Remote Control (AC or DC)
At Remote Receptacle
Stick - Remote On/Off Stick (SMAW) with Remote On/Off At Remote Receptacle
Wire - Wire Feeder
(CV) Using Remote
MIG (GMAW) At Remote Receptacle
