SECTION 6: MAINTENANCE AIR N ARC
®
200 SERIES ALL-IN-ONE POWER SYSTEM
®
PAGE - 90 090019-OP_r0
6.5.9.1 ENGINE AIR FILTER MAINTENANCE
Refer to Figure 6-20. The maintenance parts of the
engine air filter consist of the precleaner [
F], which is
reusable, and the air filter element [
G], which will need to
be replaced if damaged, worn or dirty.
Handle the new air cleaner element carefully; do not use
if the sealing surfaces are bent or damaged. If ordering
additional replacement filters to have on hand, consult
Section 6.7, Storage and Intermittent Use.
TOOLS NEEDED
REPLACEMENT
PART(S)
Clean Cloth Air Filter Replacement
Element No. 262722
NOTE
DO NOT clean the air filter element.
KEY DESCRIPTION KEY DESCRIPTION
A ENGINE AIR FILTER E ENGINE DIPSTICK HANDLE
A
1
INNER AIR FILTER COVER F Acceptable range for engine oil level between:
F
1
(FULL), and F
2
(LOW) - DO NOT OVERFILL
A
2
PRE-FILTER ELEMENT
A
3
AIR FILTER ELEMENT G ENGINE OIL FILTER
B ENGINE FUEL FILTER (Primary - 70 micron) H ENGINE OIL DRAIN
C ENGINE OIL COOLER J FUEL TANK
D ENGINE OIL FILL PORT K ENGINE FUEL FILTER (Secondary - 10 micron)
D
F
1
F
2
B
C
G
H
A
E
A
1
A
2
A
3

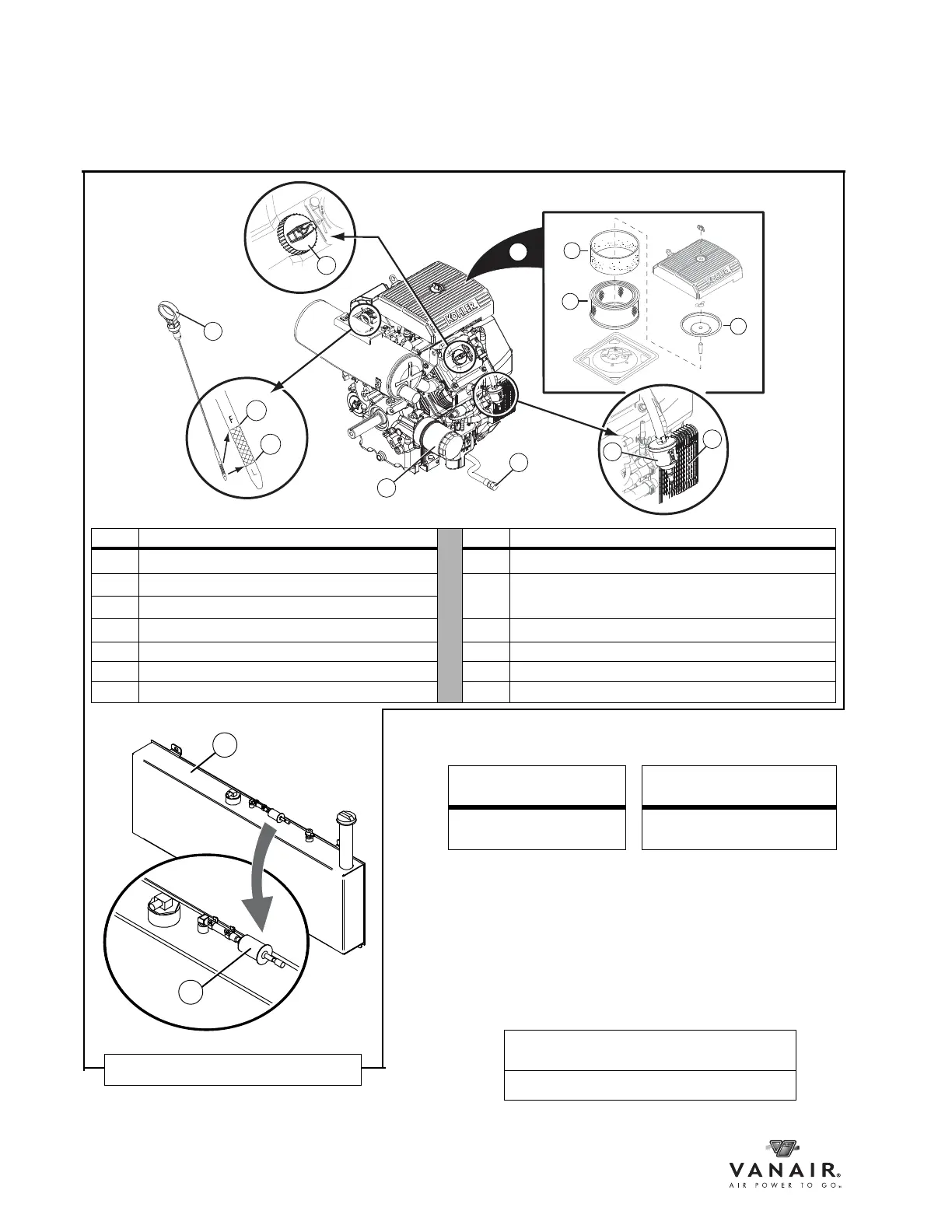

Figure 6-19: Engine Components
K
J
