SECTION 6: MAINTENANCE AIR N ARC
®
200 SERIES ALL-IN-ONE POWER SYSTEM
®
PAGE - 92 090019-OP_r0
SCHEDULE TABLE. Check the engine oil level when the
engine is off, and the oil allowed to settle.
1. Locate the engine dipstick handle [
A] and
remove.
2. Wipe off the excess oil on the dipstick blade,
and replace the dipstick back into the engine
tube in order to get a clear level reading.
3. Remove the stick again, and observe where
the oil level shows at the gauge-end of the
stick [G]. Acceptable level should be within
TOOLS NEEDED
REPLACEMENT
PART(S)
Clean Cloth
Engine Oil
I
(if
necessary)
Funnel (to add oil if
necessary)
I
Engine may need additional amount of oil if low. Consult
Engine Operator’s Manual for oil grade used, amount
needed, and oil change intervals. Consult
Section 6.5.9.3,
Replacing the Engine Oil
, to change the engine system oil.
KEY DESCRIPTION KEY DESCRIPTION
A ENGINE OIL DIPSTICK HANDLE E RUBBER GASKET
B ENGINE OIL FILL PORT F ENGINE OIL DRAIN PLUG
C
ENGINE OIL FILTER
I
G
Acceptable range for engine oil level between:
G
1
(FULL), and G
2
(LOW) - DO NOT OVERFILL
D THREADED CENTER HOLE
I
Order Replacement Engine Oil Filter No. EN38480

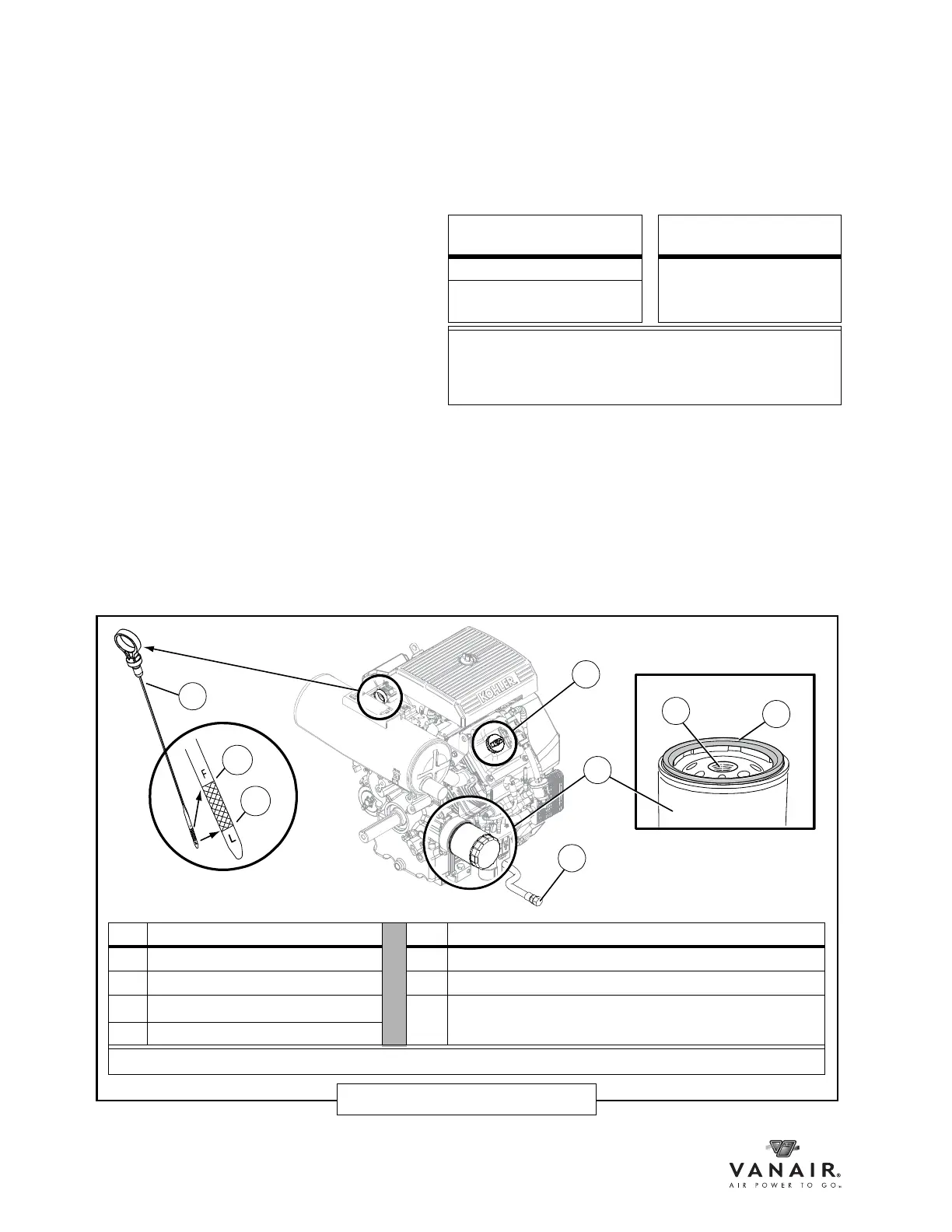

Figure 6-21: Engine Oil Maintenance
