SECTION 5: OPERATION AIR N ARC
®
200 SERIES ALL-IN-ONE POWER SYSTEM
®
PAGE - 42 090019-OP_r0
KEY DESCRIPTION KEY DESCRIPTION
A VOLTS/AMPS DISPLAY H AC VOLTAGE OUTLETS
B WELDER CC/CV TOGGLE SWITCH J GENERATOR CONTROL ON / OFF SWITCH
C DC CHARGER/WELDER TOGGLE SWITCH K DC CHARGER 12V / 24V TOGGLE SWITCH
D FUEL GAUGE L VOLTS/AMPS MANUAL ADJUSTMENT DIAL
E HOUR METER M AIR PRESSURE GAUGE
F ENGINE CONTROL(ON/OFF/START
SWITCH)
N BATTERY CABLE RECEPTACLE
G CIRCUIT BREAKER TRIP/RESET BUTTONS P WELDER LEAD CONNECTIONS
NOTE: For details concerning the functional operation purpose of each component of the instrument panel, consult
Section 2.5, Instrumentation.

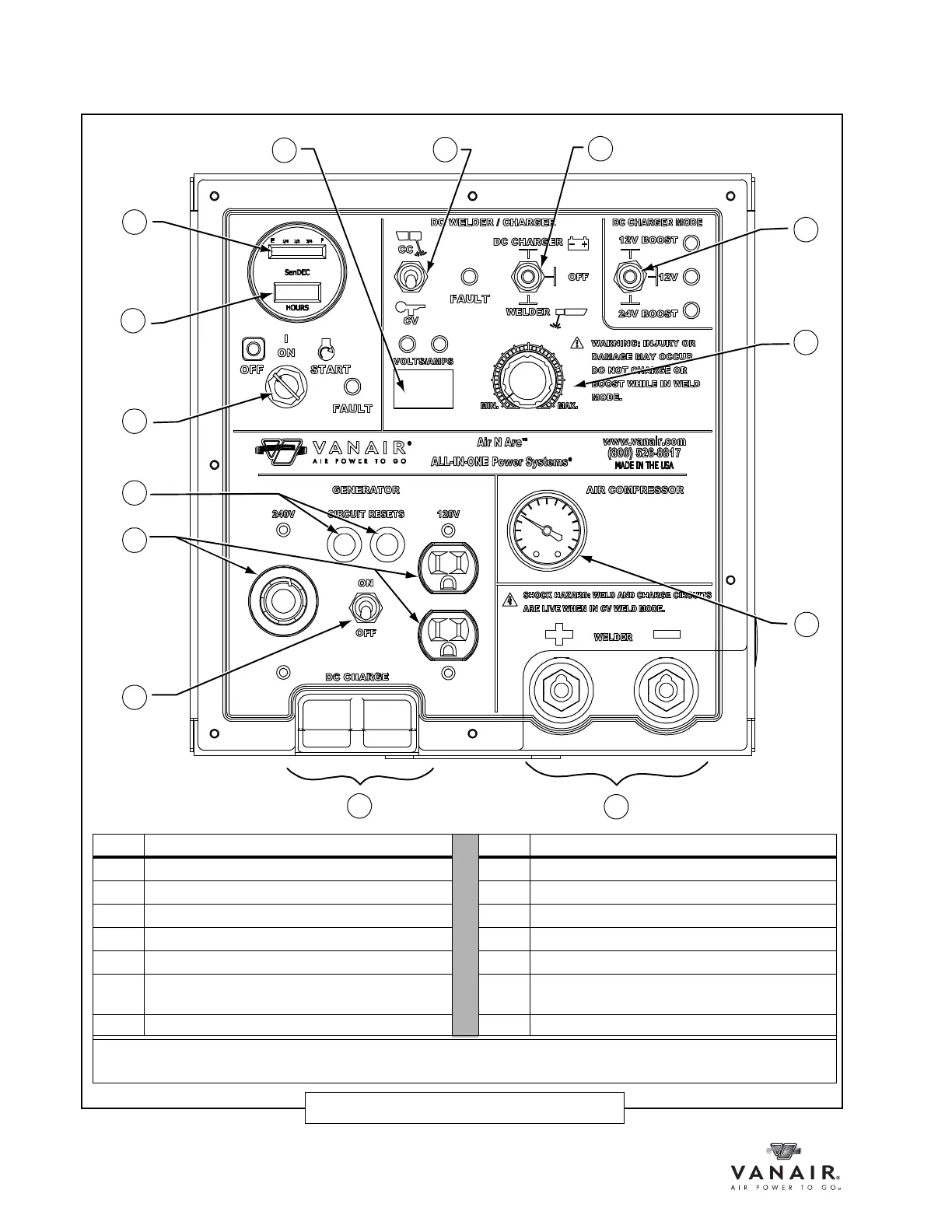

Figure 5-1: Instrument Panel Functions
