AIR N ARC
®
200 SERIES ALL-IN-ONE POWER SYSTEM
®
SECTION 6: MAINTENANCE
090019-OP_r0 PAGE - 73
KEY DESCRIPTION KEY DESCRIPTION KEY DESCRIPTION
1 CYLINDER HEAD 14 CYLINDER - VALVE SEAT
GASKET
27 OIL CONTROL RING
2 CLINDER HEAD BOLT 15 CYLINDER 28 PISTON PIN BUSH
3 SPRING WASHER 16 VALVE PLATE 29 PISTON PIN BUSH
4 INTER-COOLER BODY 17 VALVE PLATE SPRING 30 CONNECTING ROD
BEARNING (2 HALVES)
5 CYLINDER HEAD SEAT
GASKET
18 CYLINDER CRANKCASE
GASKET
31 COMPRESSION RING
6 VALVE SEAT BOLT 19 COPPER WASHER 32 OIL CONTROL RING
7 VALVE SEAT SPRING
WASHER
20 CYLINDER CRANKCASE
BOLT
33 FRONT COVER GASKET
8 VALVE SEAT (UPPER) 21 BEARING (FRONT & REAR) 34 FRONT OIL SEAL
9 VALVE SEAT GASKET 22 REAR COVER GASKET 35 OIL LEVEL GAUGE &
GAUGE COVER
10 VALVE PLATE 23 REAR COVER 36 GAUGE COVER SEAL
11 VALVE PLATE SPRING 24 COPPER WASHER 37 CRANKCASE OIL PLUG
12 VALVE SEAT (BOTTOM) 25 REAR COVER BOLT
A
HIGH PRESSURE VALVE
ASSEMBLY (6.5.3.3)
13 NUT 26 COMPRESSION RING
B
LOW PRESSURE VALVE
ASSEMBLY (6.5.3.1)
- Order compressor gasket/valve kit no. KIT1120.
- Order piston ring and cylinder rebuild kit no. KIT1121. Consult Vanair for additional information on pis-
ton/cylinder maintenance procedure.

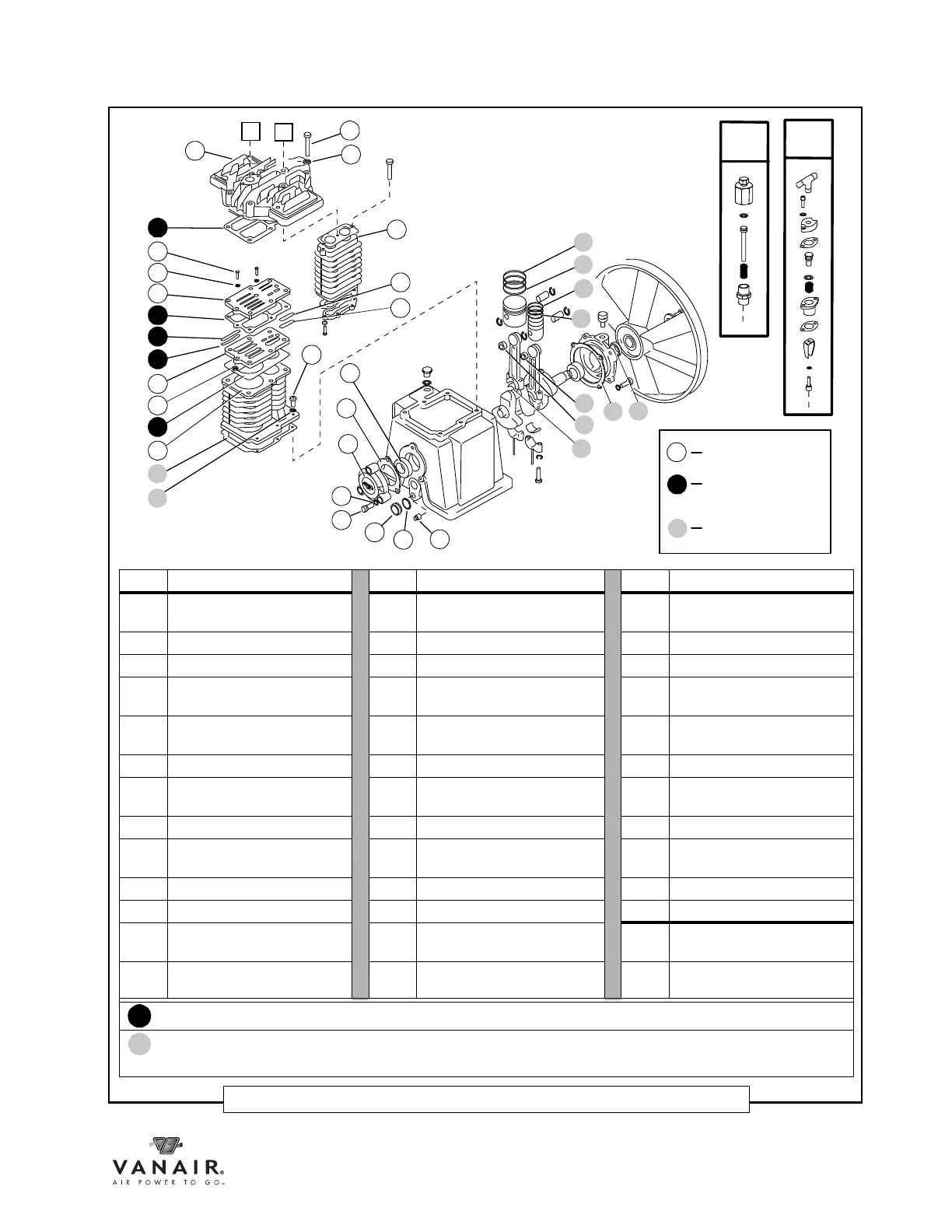

Figure 6-6: Compressor Valve Assembly Package
B
A
21
22
23
24
25
37
35
2
6
27
31
32
2
8
2
9
3
0
3
3
3
4
36
B
A
1
2
3
4
16
17
19
14
7
8
12
13
15
9
10
11
5
6
18
20
Assembly Part
Kit Part: Valve/Gasket
Maintenance Kit
Kit Part: Piston Ring &
Cylinder Rebuild Kit
