Appendix
Green X / X18 (Model:PHT-75CHS) Installation Manual A-3
English
Procedures
Before installation, check the cable lengths:
 Signal Cable: 5 m / 198”
 Door interlock cable: 5 m / 198”
 Warning lamp: 1 m / 40”
 Power source cable: 1 m / 40

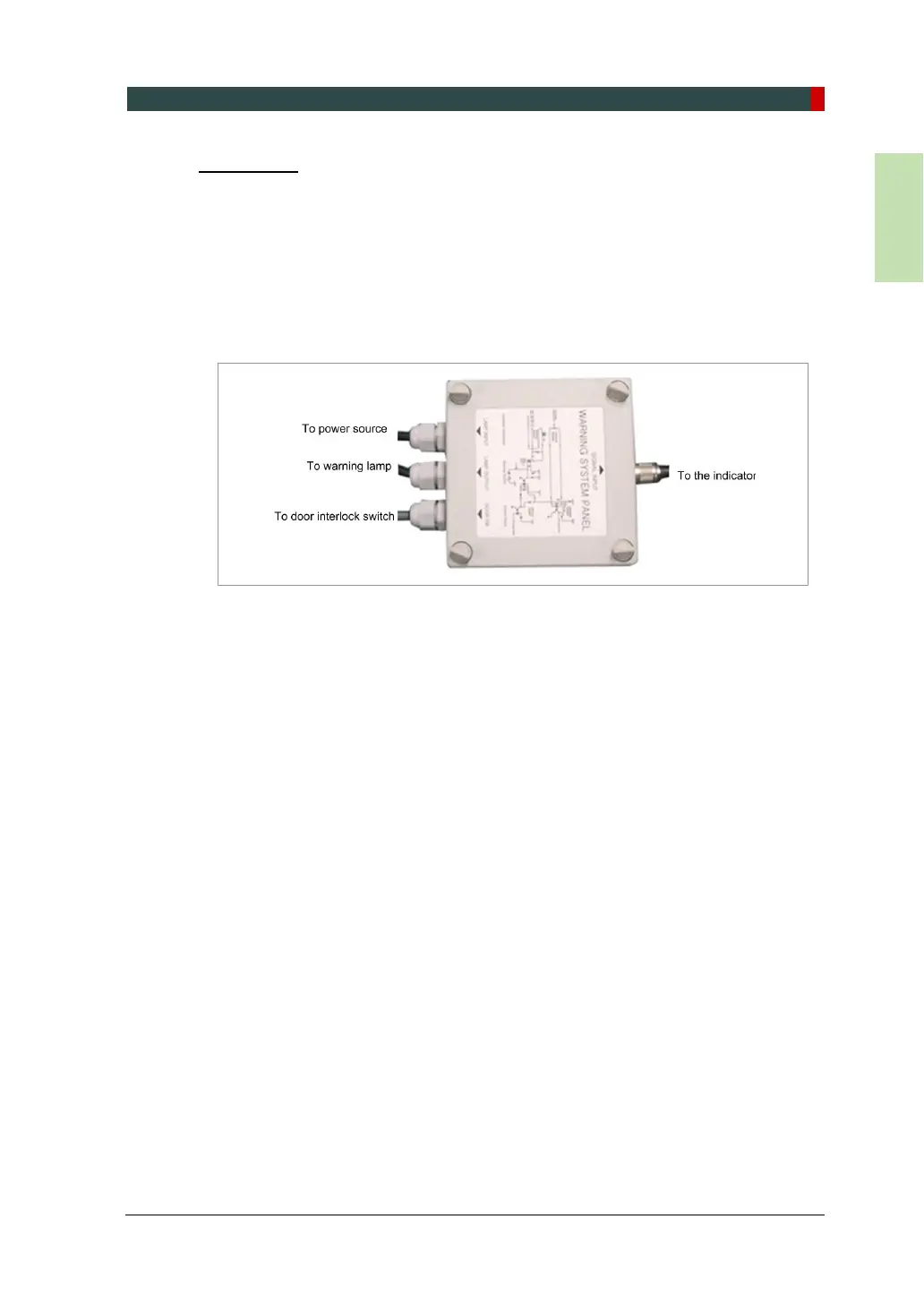

To install the warning lamb and door interlock switch:
1. Prepare a warning system panel.
2. Install the panel at a proper height according to each cable’s length.
3. Connect the warning lamp (not provided).
4. Connect the door interlock switch (not provided)
5. Connect the power source for the warning lamp.
