Vatech Green X User Manual

Appendix
A-4 Green X / X18 (Model: PHT-75CHS) Installation Manual

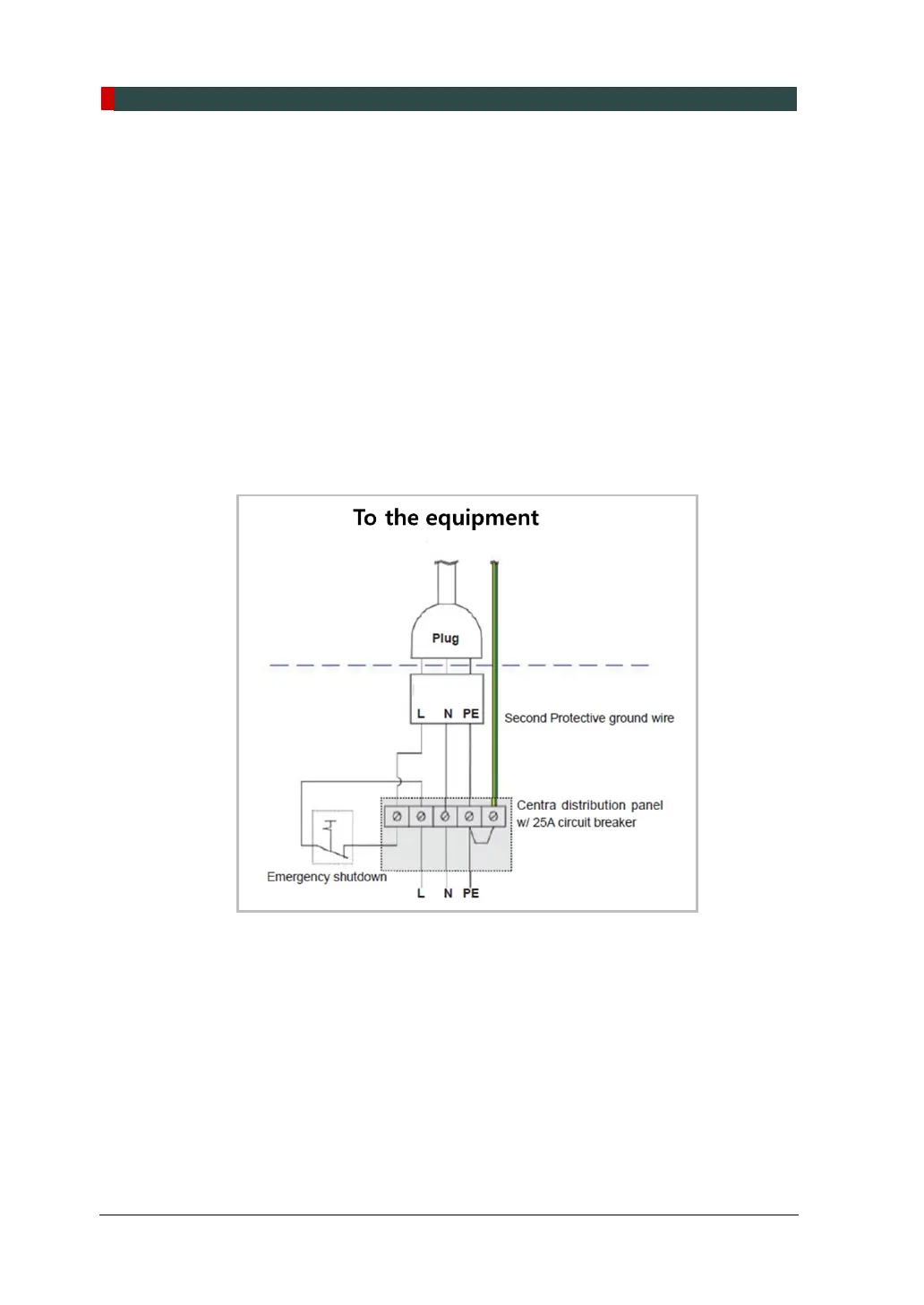

B. Installing the Emergency Stop Switch
When installing the emergency stop switch, please check the following:
 Install the emergency stop switch on the power cable line.
 Install the switch in a location where the user can easily access in an
emergency but cannot push it by mistake.
 The switch must be a mistake-proof type.
 The switch is not supplied.
 The switch must be installed at the height of 1.2 to 1.5 M(47 to 60”).
 The cable sizes must be: N, L, and PE≥12 AWG (3 x 4 mm2).
 The switch’s cable must be the same size as the power cable.
 Install the socket connector terminal for the 2
nd
protective ground wire.
