4
.
Install
ing the X
-
ray Uni
t: Base Sta
nd Type
48
Green
X /
X18
(
Model:
PHT
-
75CHS)
Installa
tion Ma
nual

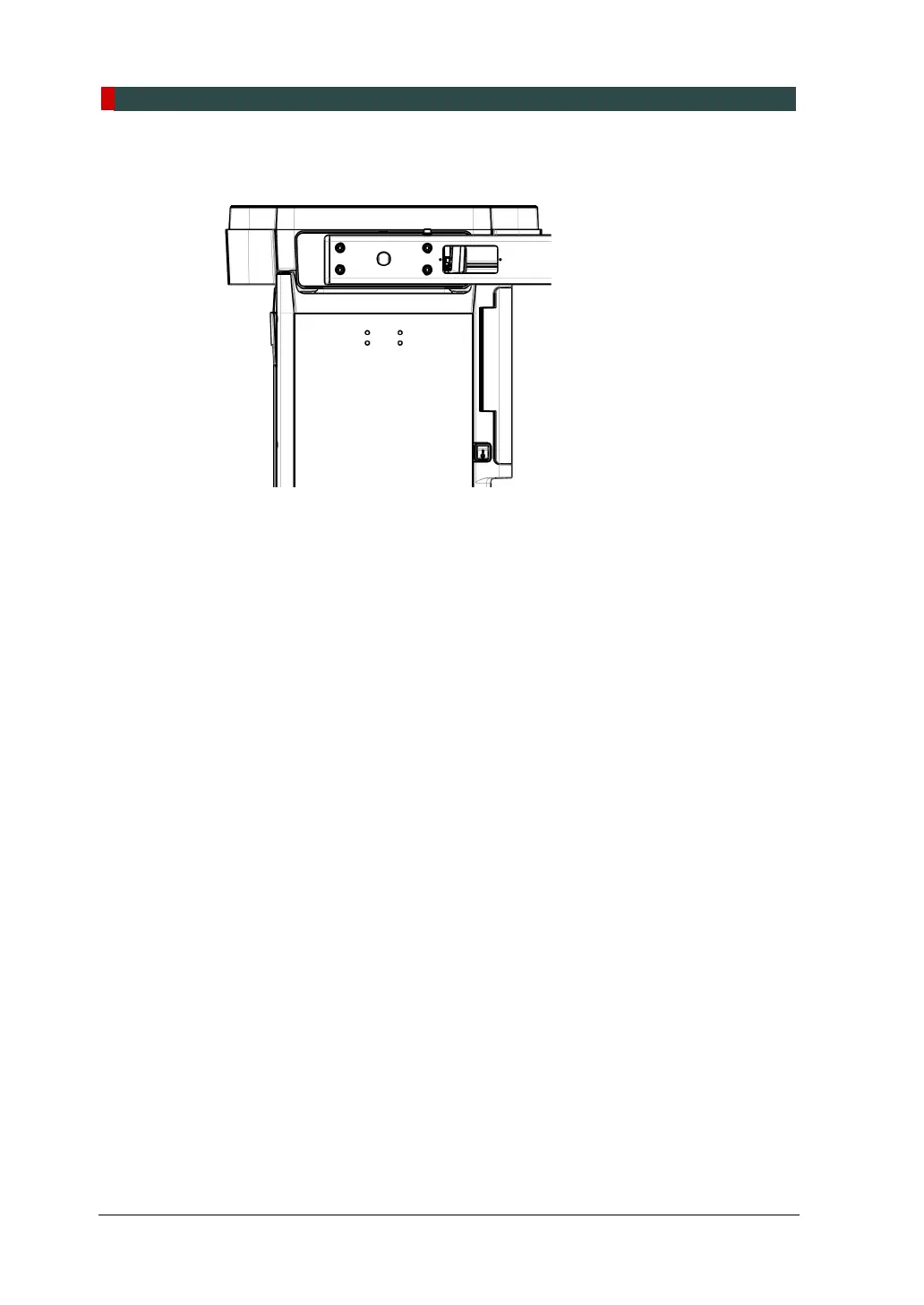

5.
Connect th
e cables as shown
in the
figure.
When
you are connec
ting
optic
cabl
e
s,
Do not b
end, pull, or cru
sh
it.
Ensure
that the caps o
f the fib
er optic cable have
been removed
.
Do not t
ouch the tip of t
he fiber optic c
able to prevent
it from being dirt
y
.
Insert
the fiber optic
cable fully unti
l the click soun
d
is
hea
rd
.
55
57
Table of Contents
Important Notes
4
Table of Contents
5
Introduction
9
Manufacturer's Liability
9
Customer's Responsibility
9
Conventions in this Manual
10
Installing the Emergency Stop Switch
12
Marks and Symbols
15
Pre-Installation Requirement
16
Room Requirements
16
Electrical Installation Requirement
20
Electrical Requirement
20
Installing Exposure Switch
21
Installation Versions
23
Installing the Warning Lamp and Door Interlock Switch
31
Installing the Emergency Stop Switch
31
Before the Installation
32
Required Tool List
32
Checking the Conditions of the Shock and Tilt Watches
34
Unpacking the X-Ray Unit
35
Transporting the X-Ray Unit
39
Checking the Parts and Accessories
41
Installing the X-Ray Unit: Base Stand Type
47
Attaching the Base to the X-Ray Unit
47
Installing the CEPH Unit (Optional)
54
Installing the Wall and Column Brackets
58
Fixing the Base
63
Connecting the Cables to the Equipment
66
Removing the Transportation Safety Bolts
68
Leveling the X-Ray Unit
70
Connecting the Wall and Column Brackets
73
Installing the X-Ray Unit: Wall Mount Type
75
Installing the X-Ray Unit
75
Installing the CEPH Unit (Optional)
80
Installing the Wall and Column Brackets
80
Connecting the Cables to the Equipment
80
Removing the Transportation Safety Bolts
80
Leveling the Equipment
81
Attaching the X-Ray Unit to the Wall
84
Finalizing the X-Ray Unit Installation
85
Attaching Lower Column and Base Cover
85
Mounting the Chinrest and the Temple Supports
87
Attaching the Switch Holders
88
Covering Bolts with Caps
90
Setting up PC
91
Direct Connection Diagram
91
The Recommended PC Requirements
92
Installing the Internal Peripherals
97
Connecting the Cables to PC
99
Setting Environment Variables
101
Before Beginning
101
Turning off the Firewall
102
Changing the Power Settings
103
Turning off the User Account Control
105
Setting Folder Exclusions with Anti-Virus Software
106
Installing Software
107
Before Beginning
107
Software Installation Flow
108
Installing Image Viewer Programs
108
Installing the Installshield
109
Setting Imaging Programs (Ezdent-I / Console)
121
10. Technical Specifications
135
Mechanical Specifications
135
Drawing Dimensions
137
Electrical Specifications
141
Environmental Specifications
142
Appendix
145
Installing the Warning Lamp and Door Interlock Switch
145
Limiting the Column Height
149
Connecting the 3Rd Party Exposure Switch (Optional)
153
Checking PC BIOS Settings
154
Installation Checklist
155
