4. Installing the X-ray Unit: Base Stand Type
54 Green X / X18 (Model: PHT-75CHS) Installation Manual

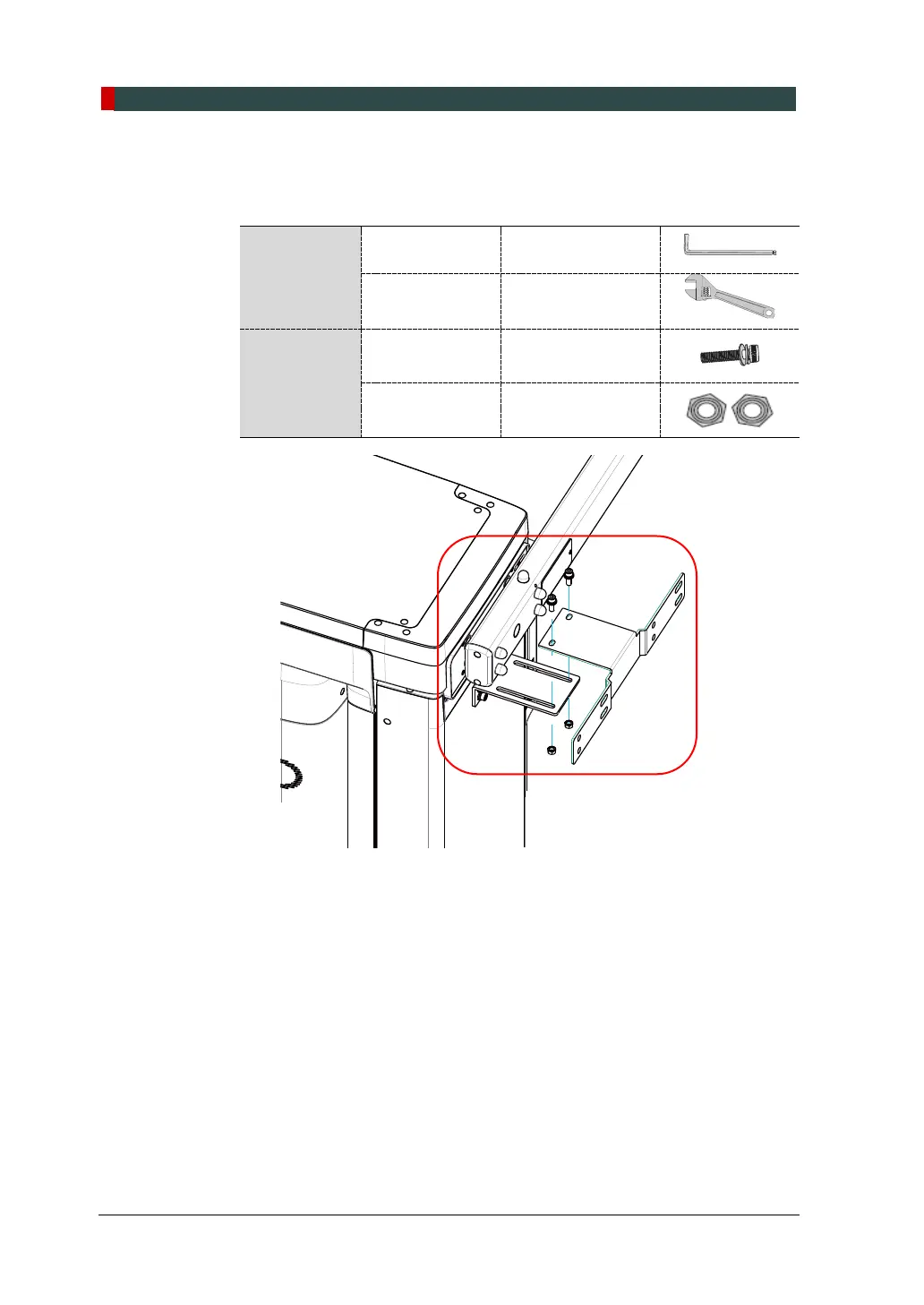

3. Connect the wall and column bracket with M8 x 25 wrench bolts. Place nuts
underneath the bolts and tighten them with a monkey wrench, as illustrated
below.
Required
Tool
Allen Wrench 6 mm / 0.24”
Monkey Wrench N/A
Parts and
Accessory
Wrench Bolt
M8 x 25 – 2 pcs
(Part No. 35)
Nut
M8 - 2 pcs
(Part. No. 35)
