4. Installing the X-ray Unit: Base Stand Type
64 Green X / X18 (Model: PHT-75CHS) Installation Manual
4.7.2 Leveling Front and Back
To level the equipment front and back:
To obtain the accurate level, place the spirit level
as illustrated.

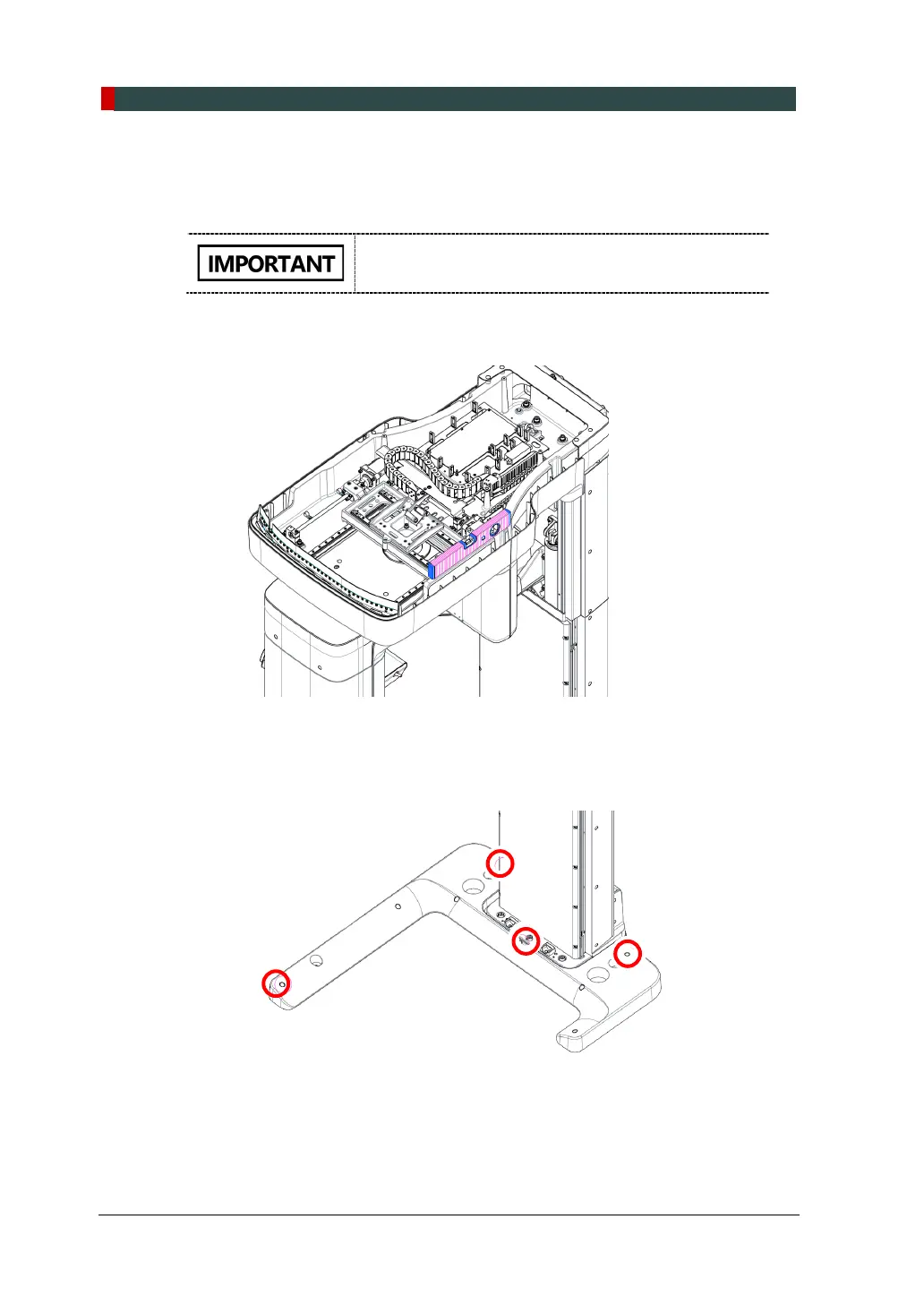

1. Place the spirit level inside the vertical frame, as shown in the illustration
below.
2. Use a T-shaped hex wrench to adjust screws in circled locations until the
bubble inside the spirit level comes to the middle.
3. When you finish leveling the equipment on all four sides, tighten eight screws
until they no longer move.
