5. Installing the X-ray Unit: Wall Mount Type
74 Green X / X18 (Model: PHT-75CHS) Installation Manual

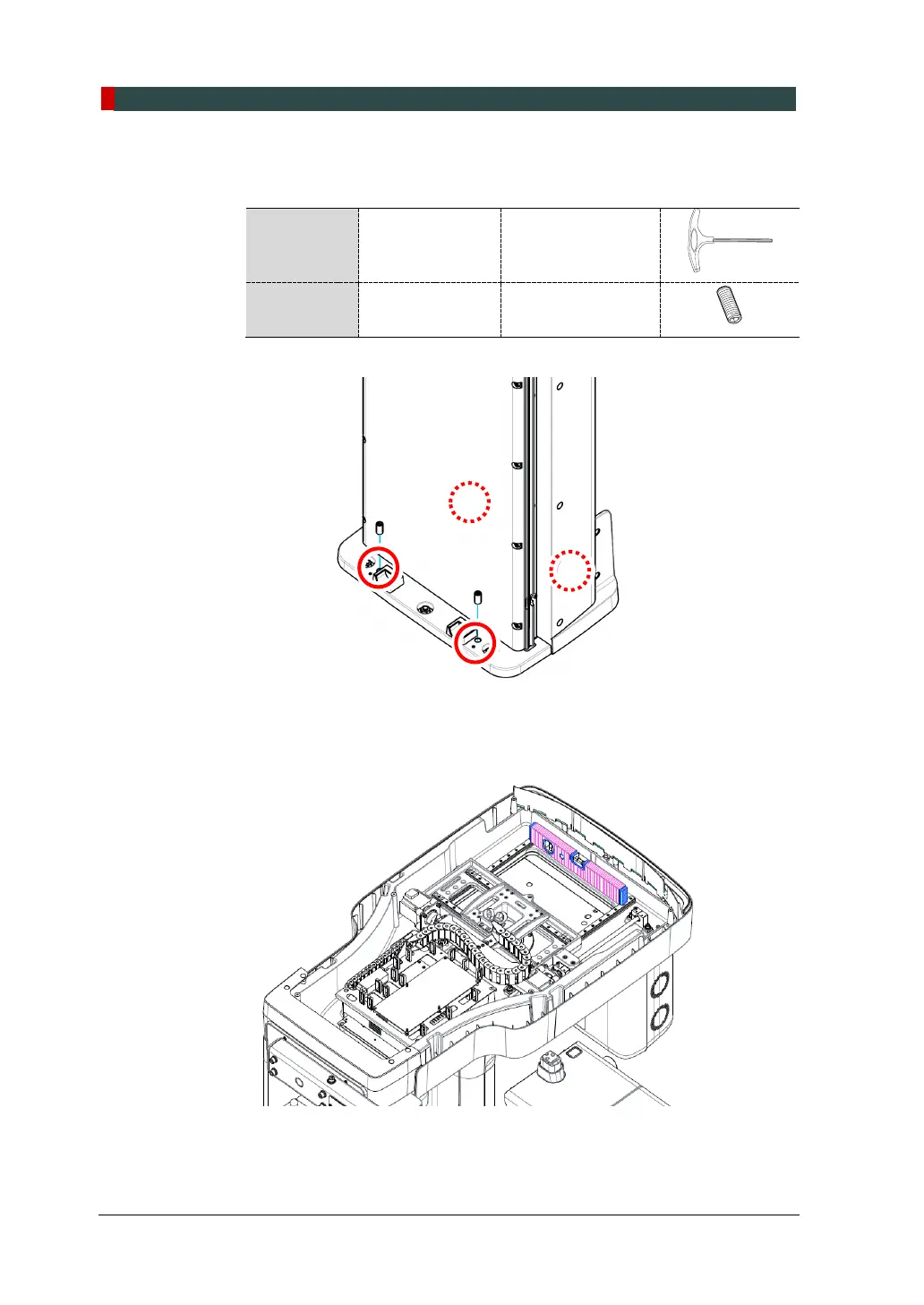

3. Slid an M10x20 set screw into each hole. Tighten the screws with a T-shaped
hex wrench. At this point, do not fully fasten the screw.
Required
Tool
T-shaped Hex
Wrench
8 mm / 0.3”
Parts and
Accessory
Set Screw
M10 x 20 – 4 pcs
(Part No. 30)
4. Place the spirit level as indicated below. Adjust each screw until the bubble
inside the level comes to the middle.
