Pax-i3D Smart(PHT-30LFO) Installation Manual
71
5 Completing Miscellaneous Works

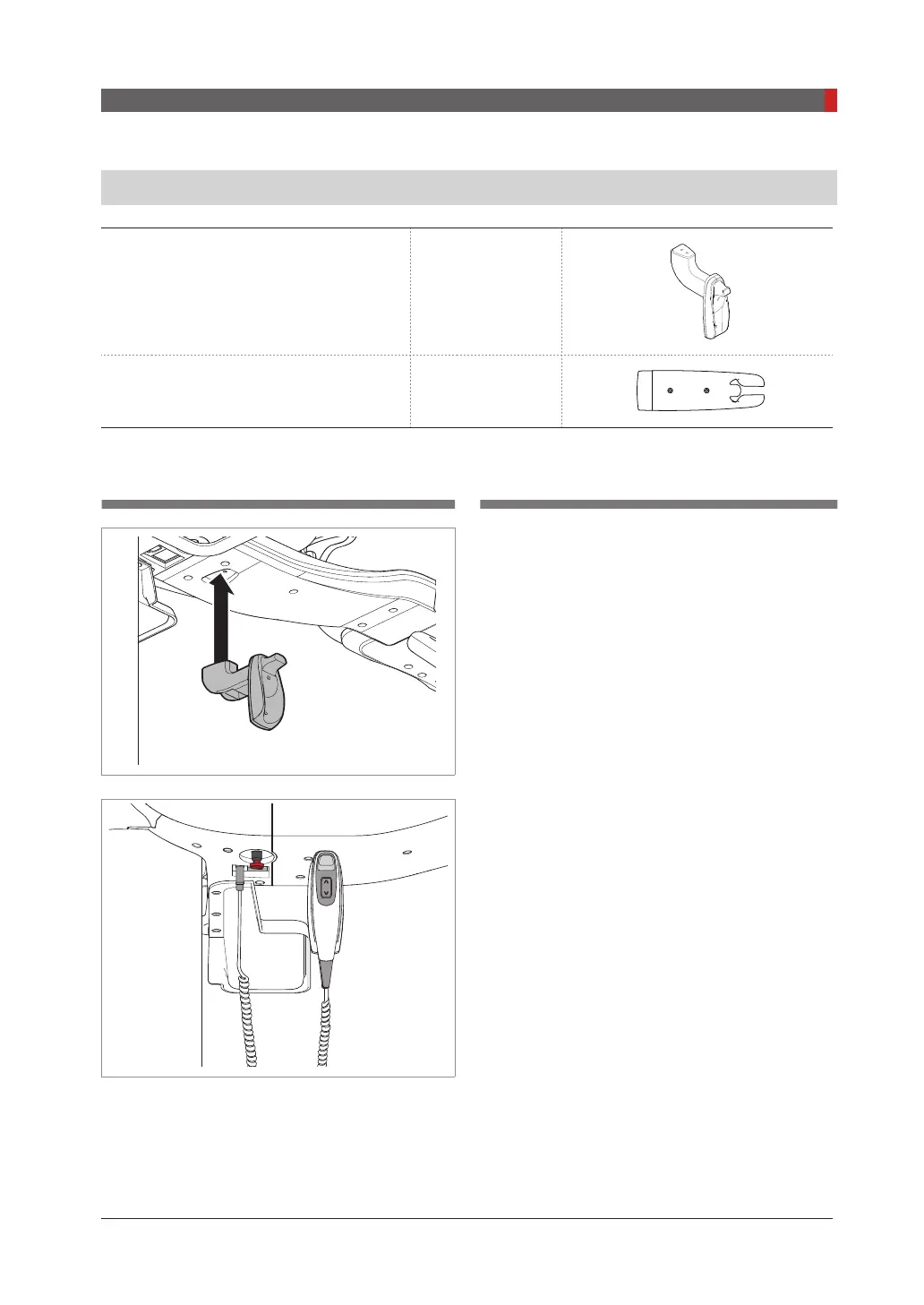

5.3 Installing the Switch Holders
UP/DOWN SWITCH HOLDER (Optional)
Part No.:33
1 PCS
EXPOSURE SWITCH HOLDER
Part No.:2
1 PCS
UP/DOWN switch holder
1.
Assemble the UP/DOWN switch holder on
the bottom of the handle frame with two truss
bolts(M4 x 10).
2.
Connect the UP/DOWN switch(Optional, Part
No.:33) to the unit and hang it on the switch
holder.
Exposure switch holder
1.
Locate the exposure switch holder(Part No.:2) with a sticker and two screws.
2.
Install the switch holder on the wall at the appropriate height using two screws.
