Vatech PaX-i3D Smart Installation Manual

Pax-i3D Smart(PHT-30LFO) Installation Manual
79
6 Setting up PC

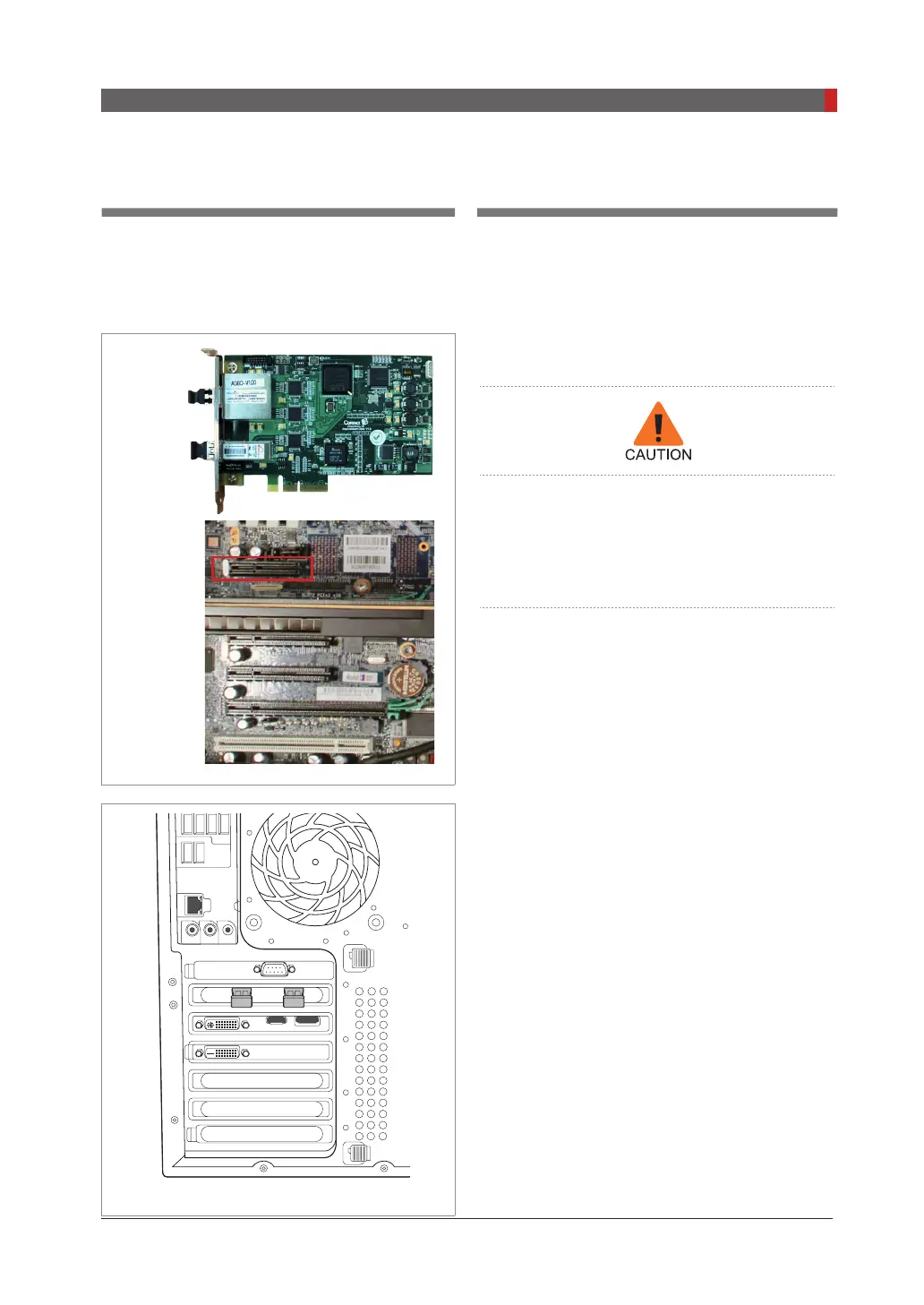

Installing the ber optic frame grabber board
1.
Unplug the power cable from the back of PC
and wait for a while.
2.
Open the PC cover.
CT/PANO
CEPH
3.
Insert the fiber grabber board (Part No.:21)
carefully into that PCIe2 x 4 slot and lock it.
Double check the locking status between the
board and its holder after the board installed.
A bad insertion of the board into the PC slot
could cause failure for Dark calibration data
acquisition or noisy image acquisition.
CT/PANOCEPH
The end result after the peripheral installation
4.
Put the slot holder back to its initial position.
The end result after the peripheral installation
