Vatech PaX-i3D Smart User Manual

3. Imaging System Overview
21 I
PaX-i3D Smart
English

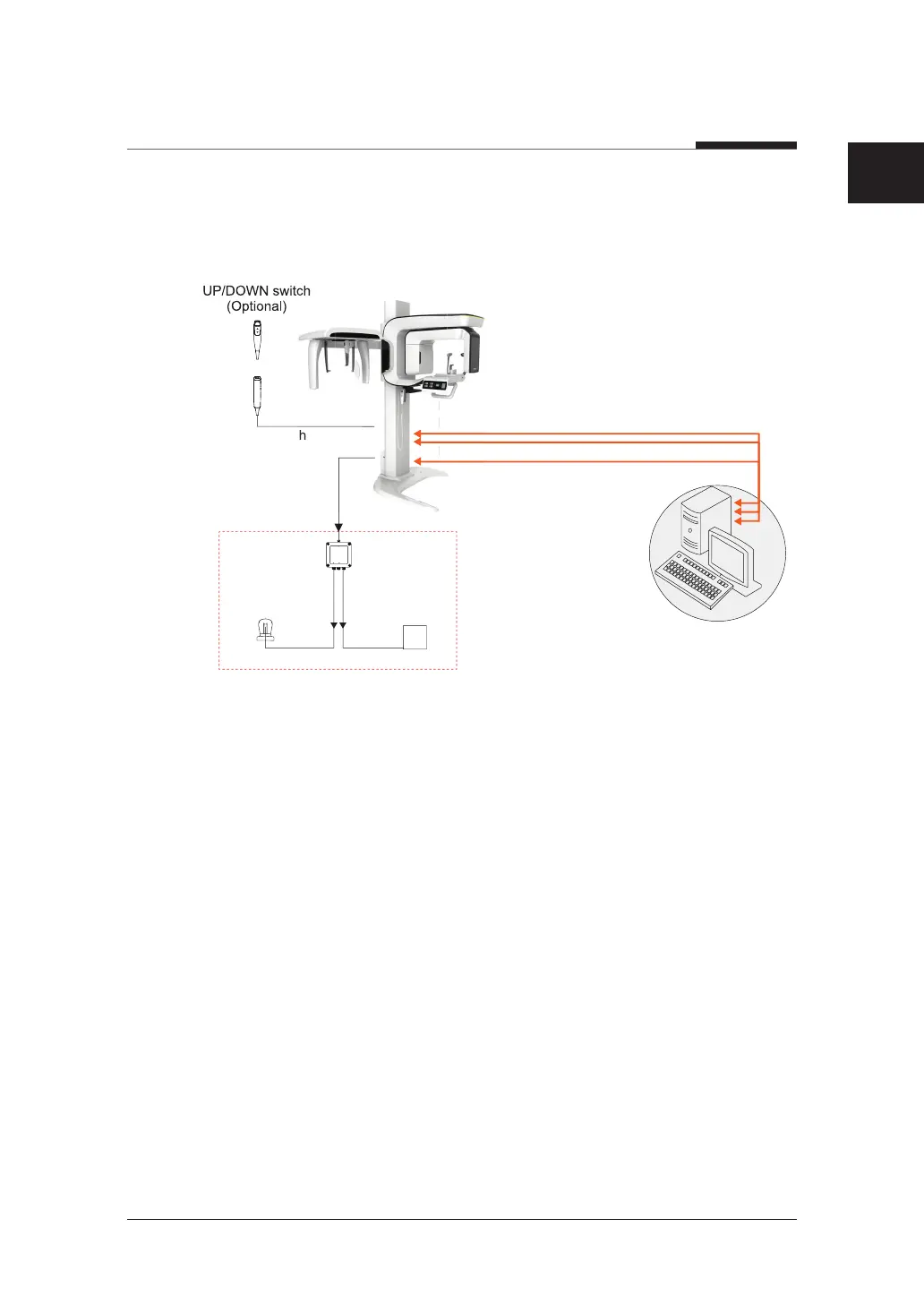

3.2 Imaging System Configuration
Exposure switch
PaX-i3D Smart
PC w/ imaging and
image viewer programs
Warning system panel
Warning lamp
Door interlock
LAMP INPUT LAMP OUTPUT
SIGNAL INPUT
WARNING SYSTEM BOX
(Optional)
Fiber Optice Cable 10m(32.8'): SCAN CEPH(Optional)
Ethernet Cable(CAT5e): OneShot CEPH(Optional)
Fiber Optic Cable 10m(32.8'): PANO, CT
c
h
F
iber
O
E
thern
e
F
iber
O

Vatech PaX-i3D Smart Specifications

General

Brand	Vatech
Model	PaX-i3D Smart
Category	Dental equipment
Language	English
