7. Acquiring CEPH images
90 I
PaX-i3D Smart
7.2.3 SMV Mode

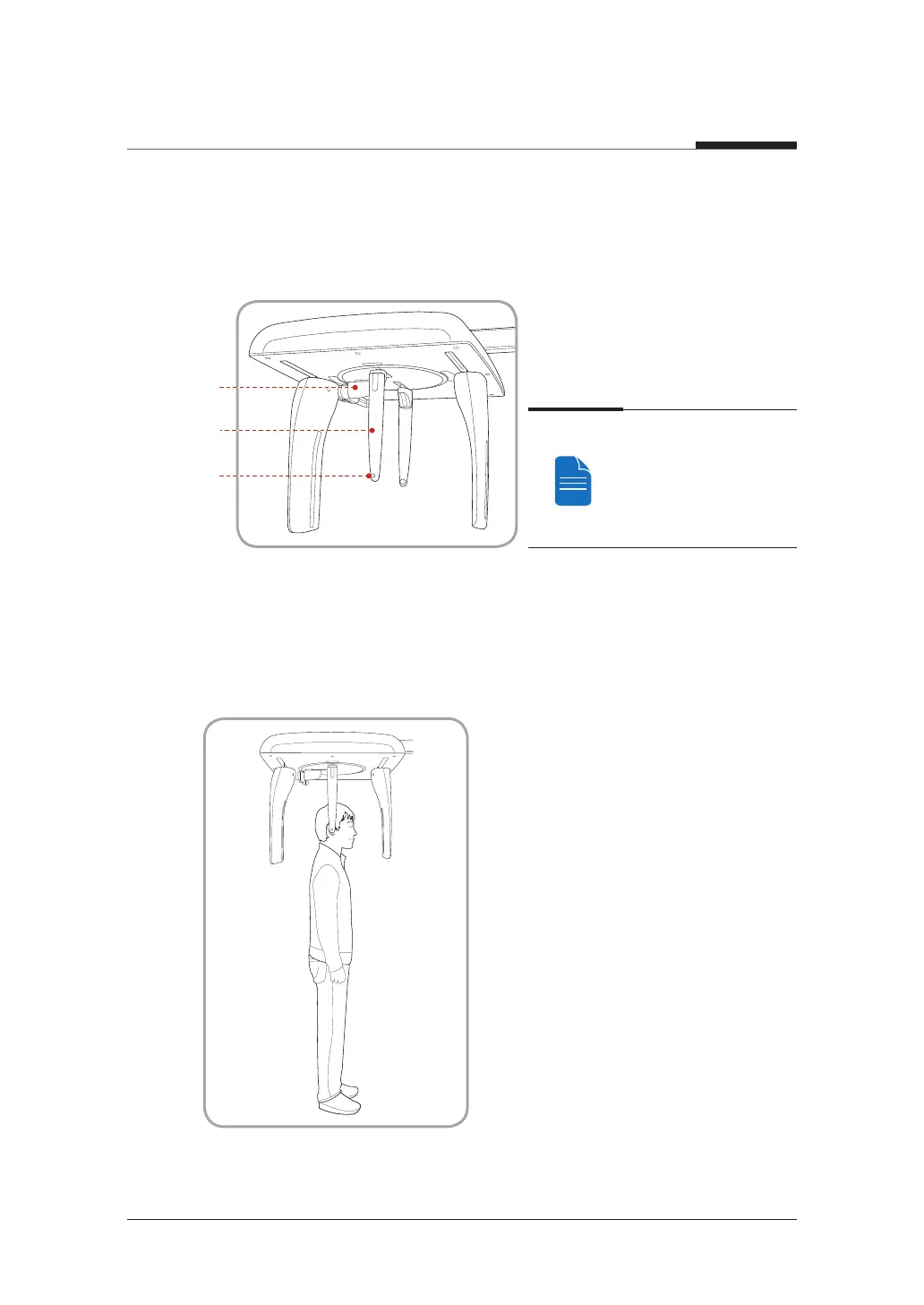

1. Rotate the ear rods 90° clockwise from their initial position as shown in the figure.
Nasal Positioner
Ear Rod
Porion position
reference indicator
Use the Porion position
reference indicator that
appears in the acquired
image to easily confirm
the location of Porion.
2. Fold the nasal positioner up. The nasal positioner is not used in Frontal mode.
3. Guide the patient to the CEPH unit.
4. Guide the patient to face the X-ray tube and stand upright.
