PaX-i3D Green (PHT-60CFO) User Manual
121
8 Acquiring CT Images
8.3
Acquiring a SCOUT Image
In general, the imaging trajectory is predened along the normal arch shape.
In case of abnormal patient’s arch, the chinrest height adjustment through the
SCOUT feature enables the user to acquire better image.
8.3.1 Starting imaging with the SCOUT feature

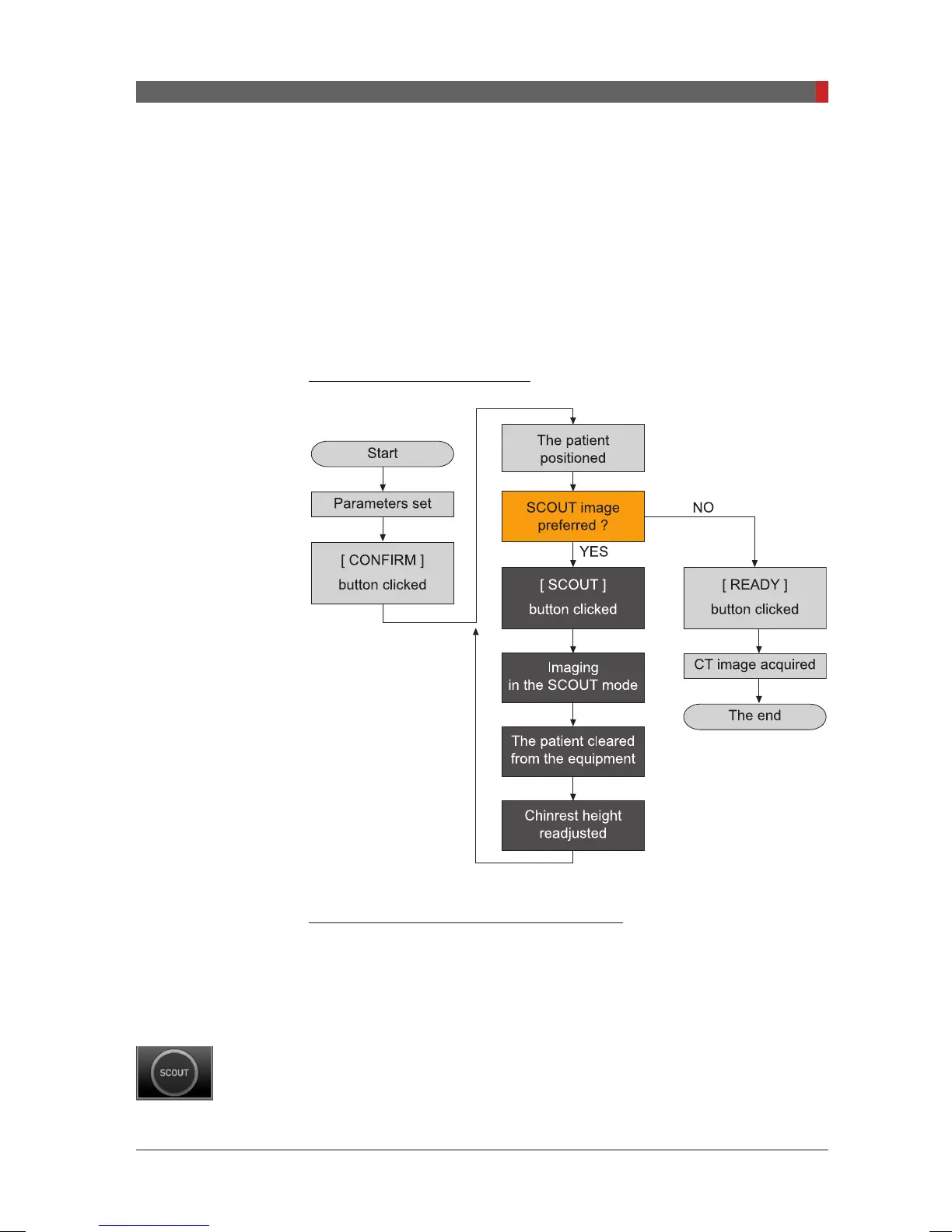

SCOUT Imaging Flow Chart
Imaging and Coordinate compensation
The parameter setting for exposure and patient positioning are the same as
those described in the section 8.1 and 8.2. For the SCOUT feature-specific
imaging, do take the steps in the following manner.
A. When the parameter setting and patient position are done, click the
SCOUT
button.
B. Press and hold down the exposure switch to acquire the
SCOUT
image.
