PaX-i3D Green (PHT-60CFO) User Manual
75
6 Acquiring PANO Images
⑥

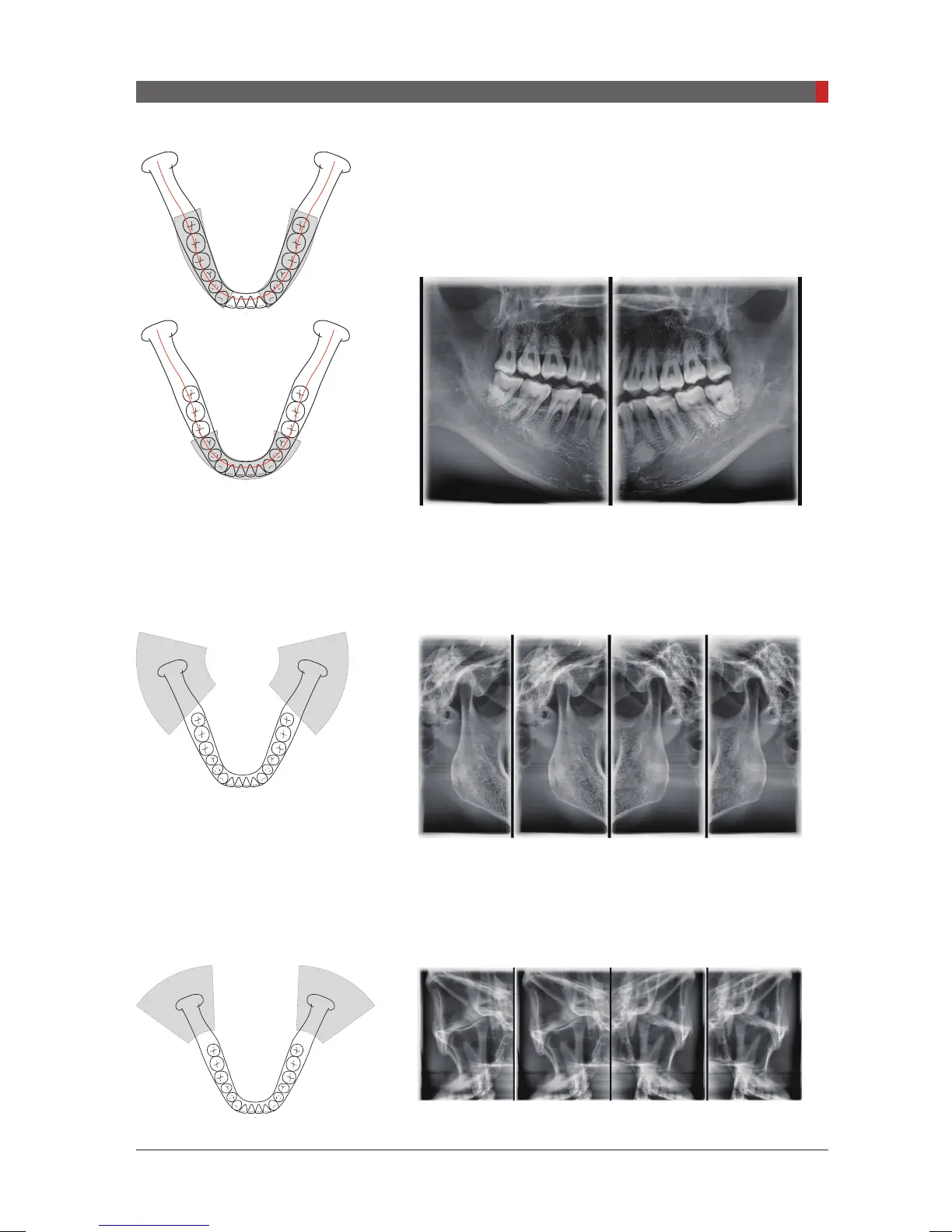

Orthogonal_Bitewing
A panoramic imaging mode to acquire an image only for the
region of interest through the orthogonal trajectory:
Pros
: less
X-ray exposure than the Standard mode.
Cons
: TMJ and parts
of an image of the maxillary sinus are not acquired.
⑦
TMJ LAT Open / Close
An imaging mode to acquire a lateral image of the TMJ, in
which the X-ray beam is directed on the lateral TMJ region:
TMJ (Open and Close).
⑧
TMJ PA Open / Close (Optional)
An imaging mode to acquire a TMJ image, in which the X-ray
beam is directed on the frontal TMJ, with the patient's mouth
open fully and close (Open and Close).
X-ray ON
X-ray ON
X-ray ON
[PI3DG_130U_44A_en]User Guide.indd 75 2016-05-24 오후 4:18:53
