14. Install the radiator; refer to 4520Z Installing the Radiator, page 4–17.
15. Switch the main circuit breaker to the O
N position, to energize the electrical
system.
Removing and Installing the Choke Cable

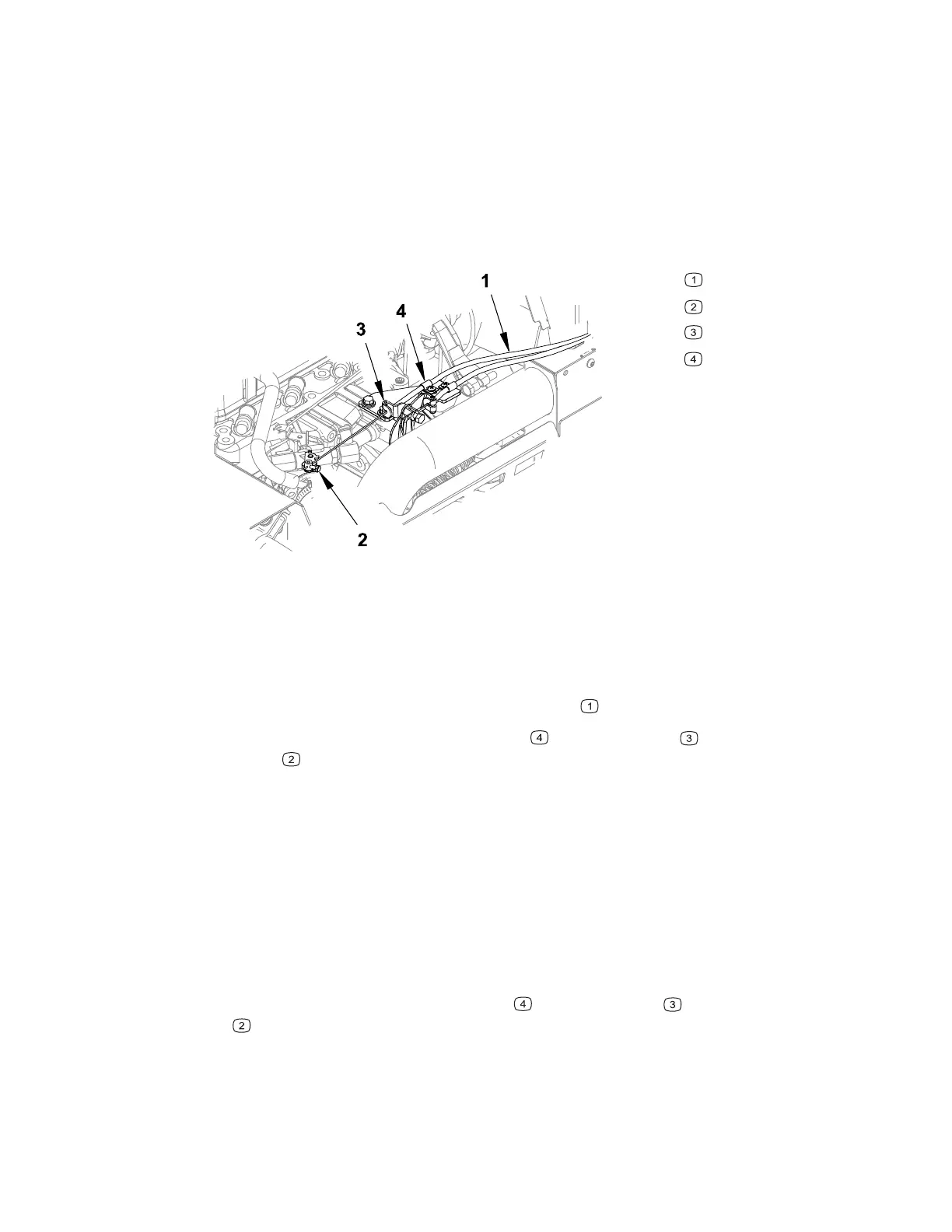

Figure 12
G431966
Choke cable
Clamp
Housing clamp
Cable clamp
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Switch the main circuit breaker to the O
FF position, to de-energize the electrical
system.
3. Raise the hood and locate the choke cable
connection to the engine.
4. Disconnect the cable from the clamp
, housing clamp , and choke linkage
clamp
.
5. Locate the cable connection on the backside of the dash, remove the cable
retaining nut.
6. Remove the choke cable by pulling it through the dash.
7. To install the choke cable, route the cable through the dash.
8. Install the cable retaining nut on the backside of the dash.
9. Ensure that the choke knob is not engaged.
10. Route the choke cable over the hydraulic oil reservoir, and around the left side of
the radiator.
11. Route the cable through the clamp
, housing clamp , and choke linkage clamp
.
12. Tighten all the clamps.
13. Check the choke cable function. Ensure that the choke cable moves smoothly,
and the cable does not bind.
